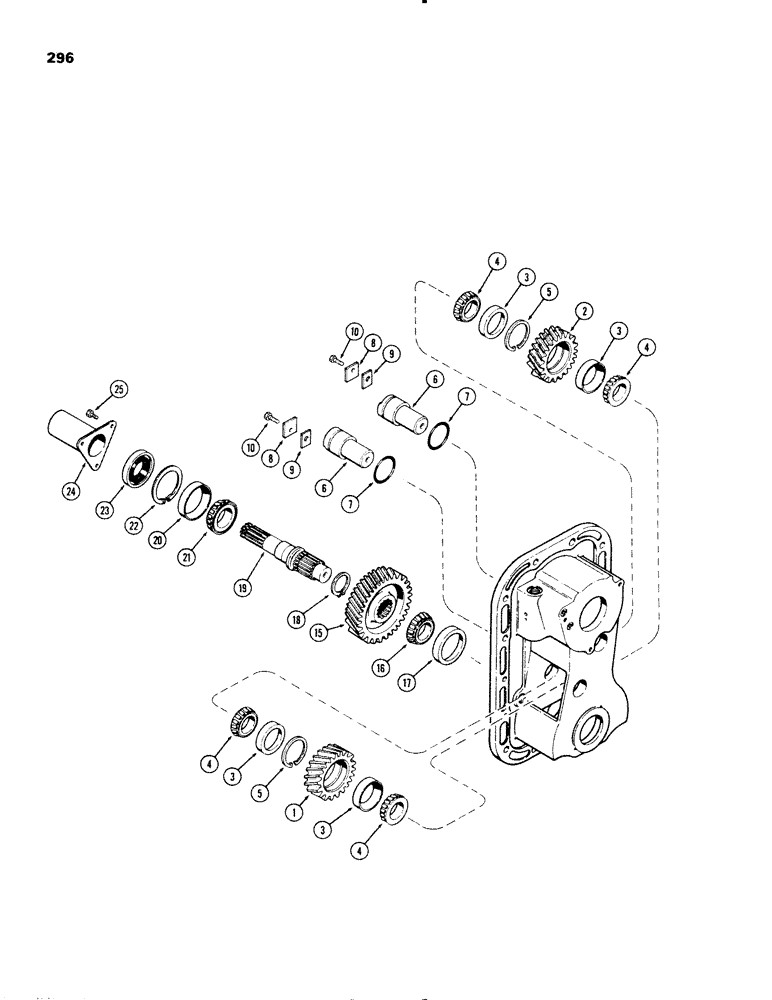

Запчасти Case IH 1270 (296) - P.T.O. IDLERS AND OUTPUT SHAFT, FIRST USED P.I.N. 8811146 (06) - POWER TRAIN

1

A138185

GEAR

- P.T.O. idler, L.H. (31 teeth)

1шт.

2

A138184

COMPRESSION SPRING

- P.T.O. idler, R.H. (31 teeth) (w/identification groove)

1шт.

3

D53762

BEARING CUP,2.892" OD x 0.62"

CUP - bearing, idler (2-7/8" O.D. x 5/8" wide)

4шт.

4

D53766

TAPERED BEARING,1.7812" ID x 0.78"

CONE - bearing, idler (1-25/32" I.D.)

4шт.

5

A31255

SNAP RING,2.875", Int, #287

Ring, Snap, , idler brg 2.875", Int, #287

2шт.

6

A142911

PIN

- P.T.O. idler gear

2шт.

7

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- (2-1/4 x 1/8")

2шт.

8

A136233

RETAINER

- idler pins

2шт.

9

A136315

SHIM,.0050" Thk

Retainer .0050" Thk

1шт.

9

A136316

SHIM,.0070" Thk

Retainer .0070" Thk

1шт.

9

A136317

SHIM,.010" Thk

Retainer .010" Thk

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

A138186

GEAR

- P.T.O. output (44 ext. teeth, 32 int. teeth)

1шт.

16

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE - bearing, output shaft front (3-11/32" O.D. x 1/16" wide)

1шт.

17

A27138

BEARING CUP,85 mm OD x 17.462 mm

CUP - bearing, output shaft front (1-9/16" I.D.)

1шт.

18

A142923

SNAP RING,#206, Ext

Ring, Snap, , output gear #206, Ext

1шт.

19

A148833

SHAFT

- output (With A28168 and A28169, replaces A142594)

1шт.

19

A142594

SHAFT

- output (Order A148833, A28168 and A28169)

1шт.

20

A28168

CUP

- bearing, output shaft rear (3-1/2" O.D. x 21/32" wide) (Used with A148833)

1шт.

20

A32763

CUP

- bearing, output shaft rear (3-1/2" O.D. x 3/4" wide) (Used with A142594)

1шт.

21

A28169

ROLLER BEARING,1.875" ID x 0.875"

CONE - bearing, output shaft rear (1-7/8" I.D.) (Used with A148833)

1шт.

21

A32764

ROLLER BEARING,1.875" ID x 1"

CONE - bearing, output shaft rear (1-7/8" I.D.) (Used with A142594)

1шт.

22

D38774

SNAP RING,3.50", Int, #350

Ring, Snap, , output shaft (0.109") 3.50", Int, #350

1шт.

22

A142634

RING

- snap, output shaft retaining (.099")

1шт.

22

A142635

RING

- snap, output shaft retaining (.094")

1шт.

22

A142636

RING

- snap, output shaft retaining (.089")

1шт.

22

A142637

RING

- snap, output shaft retaining (.084")

1шт.

23

A142927

OIL SEAL,47.63mm ID x 89.08mm OD x 13.08mm Thk

- oil, output shaft

1шт.

24

A142641

GUARD

- P.T.O. output shaft

1шт.

25

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

3шт.
