(410) - HOOD AND FIREWALL INSULATION

Запчасти Case IH 1270 (410) - HOOD AND FIREWALL INSULATION (09) - CHASSIS/ATTACHMENTS

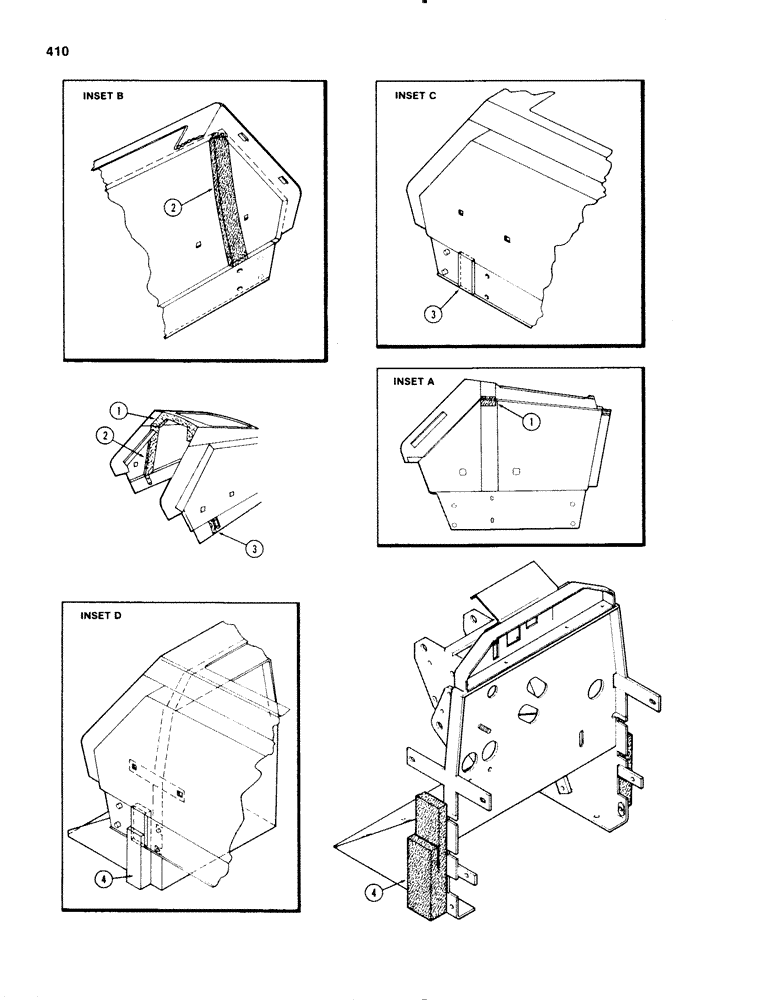

Схема запчастей Case IH 1270 - (410) - HOOD AND FIREWALL INSULATION (09) - CHASSIS/ATTACHMENTS
2
3
2
1
1
3
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A66380

FOAM

- firewall top baffle (See Note) (See Inset A)

1шт.

2

A66381

FOAM

- firewall sides (See Note) (See Inset B)

2шт.

3

66382

SPINDLE

FOAM - rear hood sealing (See Note) (See Inset C)

2шт.

4

A66379

BAFFLE

- firewall sides bottom (See Note) (See Inset D)

2шт.
