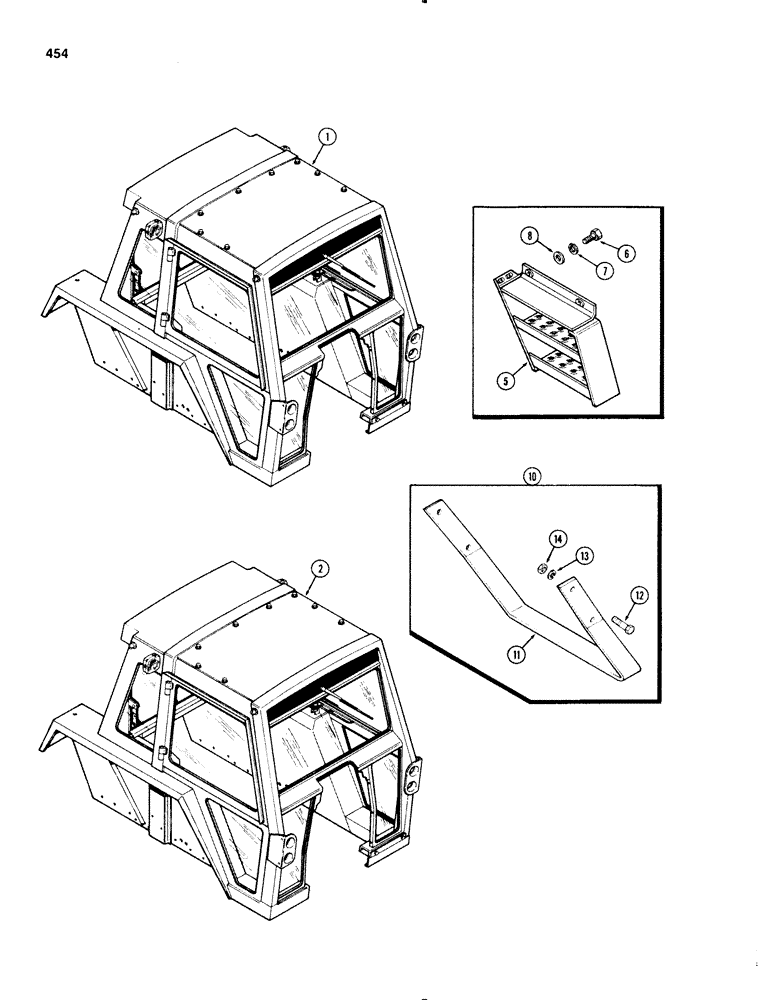

Запчасти Case IH 1270 (454) - CAB ASSEMBLY, FIRST USED CAB SERIAL NUMBER 7882601 (09) - CHASSIS/ATTACHMENTS

1

F98165

CAB - w/o heater or AC (Mach. Item) (1st used cab ser. no. 7882601)

1шт.

1

F98166

CAB - w/air conditioner (Mach. Item) (1st used cab ser. no. 7882601)

1шт.

1

F98167

CAB - w/heater (Mach. Item) (1st used cab ser. no. 7882601)

1шт.

1

F98168

CAB - w/heater & AC (Mach. Item) (1st used cab ser. no. 7882601)

1шт.

1

F98135

CAB - w/o heater or AC (Mach. Item) (Used cab ser. no. 7855101 thru 7882601)

1шт.

1

F98136

CAB - w/air conditioner (Mach. Item) (Used cab ser. no. 7855101 thru 7882601)

1шт.

1

F98137

CAB - w/heater (Mach. Item) (Used cab ser. no. 7855101 thru 7882601)

1шт.

1

F98138

CAB - w/heater & AC (Used cab ser. no. 7855101 thru 7882601)

1шт.

2

F89975

CAB - w/o heater & air conditioner (Mach. Item), used prior to cab ser. no. 7855101

1шт.

2

F89976

CAB - w/air conditioner (Mach. Item), used prior to cab ser. no. 7855101

1шт.

2

F89977

CAB - w/heater (Mach. Item), used prior to cab ser. no. 7855101

1шт.

2

F89978

CAB - w/air conditioner & heater (Mach. Item), used prior to cab ser. no. 7855101

1шт.

5

F89730

STEP

- L.H. side

1шт.

6

113-216

SCREW

BOLT - 3/8 x 3/4" N.C. hex, steps

4шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Steps 3/8"

4шт.

8

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 5/64", steps

4шт.

10

A65003

STEP

ATTACHMENT - step extension (Mach. Item), Includes Ref: 11-14

1шт.

11

NSS

NOT SOLD SEPARAT

STEP - (Order A65003)

1шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Steps 1/2"

4шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

Steps 1/2"-13, G5

4шт.
