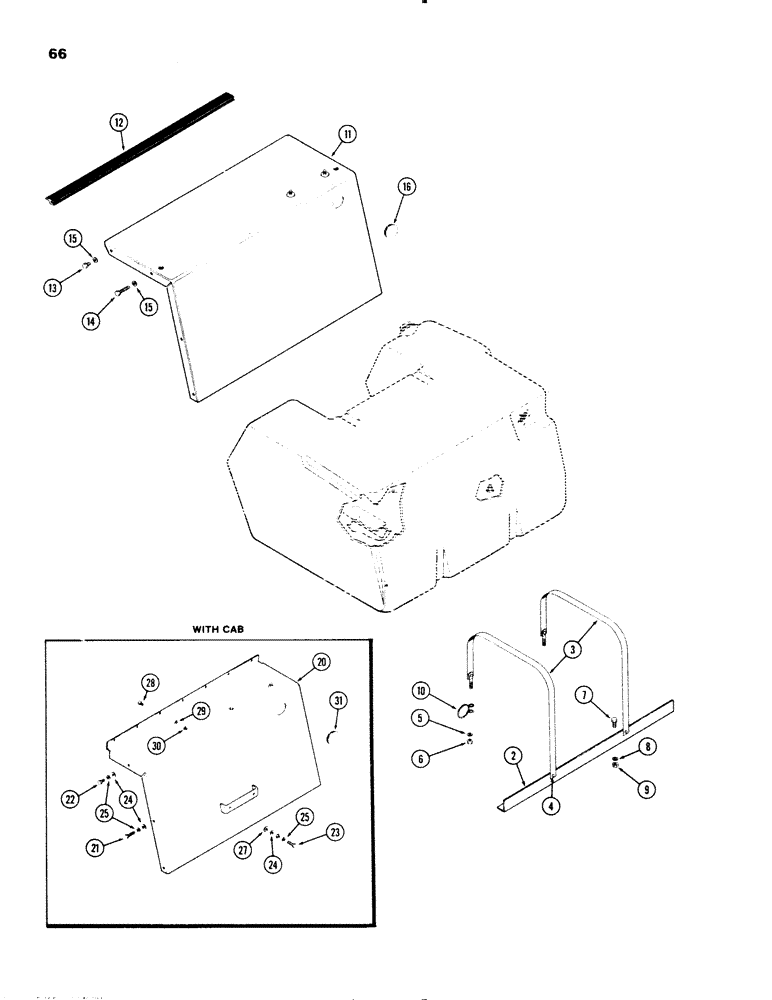

Запчасти Case IH 1270 (066) - FUEL TANK SUPPORTS AND COVERS, (451BDT) DIESEL ENGINE, WITH POLYETHLENE TANK (03) - FUEL SYSTEM

A63705

STRAP

ASSEMBLY - fuel tank mounting, Includes Ref: 2-4

1шт.

2

A63706

BRACKET

ANGLE - anchor

1шт.

3

A63992

STRAP

ASSEMBLY - mounting

2шт.

4

49-48

RIVET,Truss Hd, 1/4" x 1/2"

- strap to angle

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

10

A66050

SPRING

- fuel tank mtg

2шт.

11

A66666

COVER

- fuel tank, Used Without Cab

1шт.

12

A64866

GUARD

MOLDING - fuel tank cover, Used Without Cab

1шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used without cab Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

14

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Used without cab Hex, 3/8"-16 x 2 1/4", G5

2шт.

15

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 1 x 5/32, Used Without Cab

8шт.

16

205-72

HOLE PLUG BUTTON,3"

PLUG - button, sending unit access hole, Used Without Cab

1шт.

16

A39892

PLUG,33/64"

- button, Used Without Cab

1шт.

20

A66668

COVER

- fuel tank, Used With Cab

1шт.

21

113-287

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- 3/8 x 1-3/4" N.C. hex. (tank cover to cab side), Used With Cab

2шт.

22

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- 3/8 x 3/4" N.C. hex. (tank cover to cab side), Used With Cab

4шт.

23

113-2223

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- 3/8 x 1-1/2" N.C. hex. (tank cover to casting), Used With Cab

2шт.

24

195-104

WASHER,3/8"

- 7/16 x 1 x 5/32", Used With Cab

8шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used w/cab 3/8"

8шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used w/ Cab 3/8"-16, G5

2шт.

27

A62687

SHIM,.11" Thk

Cover, Used with cab .11" Thk

1шт.

28

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Used with Cab

7шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Used w/cab 5/16"

7шт.

30

9635082

NUT,5/16" - 18, Gr 5

Used with Cab 5/16"-18, G5

7шт.

31

205-72

HOLE PLUG BUTTON,3"

PLUG - button, sending unit access hole, Used With Cab 3"

1шт.

31

A39892

PLUG,33/64"

- button, Used With Cab

1шт.
