(253A) - SERIES 30 SEAT, FIRST USED TRACTOR SERIAL NUMBER 8693001

Запчасти Case IH 1370 (253A) - SERIES 30 SEAT, FIRST USED TRACTOR SERIAL NUMBER 8693001 (09) - CHASSIS/ATTACHMENTS

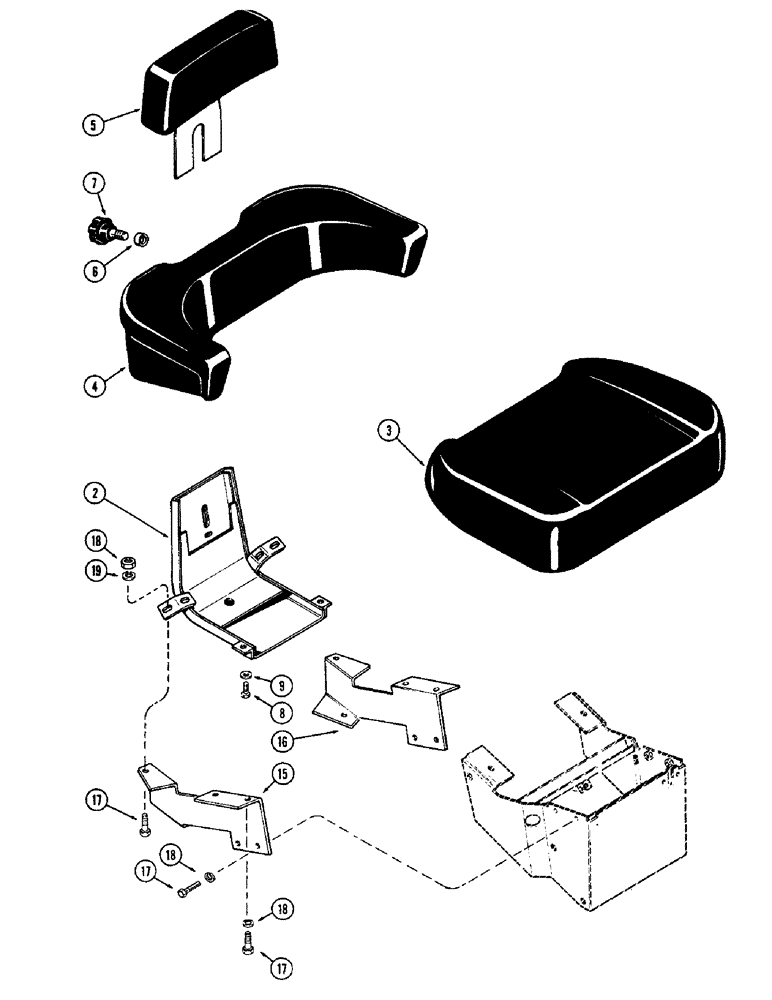

Схема запчастей Case IH 1370 - (253A) - SERIES 30 SEAT, FIRST USED TRACTOR SERIAL NUMBER 8693001 (09) - CHASSIS/ATTACHMENTS
5
3
7
9
18
15
4
17
17
8
18
17
19
2
6
18
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A65092

SEAT

ASSY. - series "30", Includes Ref: 2 - 9

1шт.

2

A57405

SUPPORT

- seat frame

1шт.

3

A65093

CUSHION

- seat

1шт.

4

A42497

BACKREST

- seat, lower

1шт.

5

A34283

CUSHION

BACKREST - seat, upper

1шт.

6

A40600

SPACER

- backrest adjusting

1шт.

7

A40972

KNOB

- backrest adjusting

1шт.

8

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

9

195-103

WASHER,5/16"

- plain, 3/8 x 7/8 x 3/32"

4шт.

15

A65094

BRACKET

- seat support, R.H.

1шт.

16

A65095

BRACKET

- seat support, L.H.

1шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

12шт.

19

9635082

NUT,5/16" - 18, Gr 5

2шт.
