(266) - CAB, AIR FILTER, FIRST USED CAB SERIAL NUMBER 7814176

Запчасти Case IH 1370 (266) - CAB, AIR FILTER, FIRST USED CAB SERIAL NUMBER 7814176 (09) - CHASSIS/ATTACHMENTS

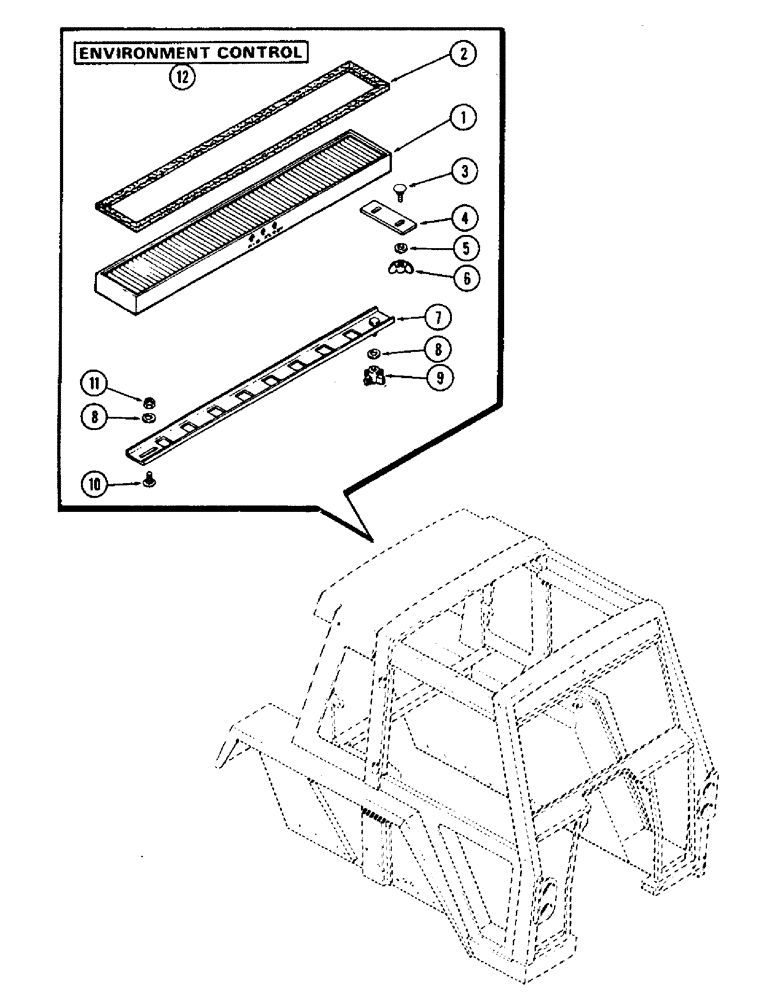

Схема запчастей Case IH 1370 - (266) - CAB, AIR FILTER, FIRST USED CAB SERIAL NUMBER 7814176 (09) - CHASSIS/ATTACHMENTS
5
7
3
12
2
6
11
4
8
10
1
8
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NLS

NO LONGER SERVICED

- air intake

1шт.

2

F63674

SEAL

GASKET - filter seal

1шт.

3

111-128

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4 x 3/4" rd. hd. sq. nk.

4шт.

4

G63728

CLIP - retaining, filter

2шт.

5

195-518

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

6

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

4шт.

7

F89886

PLATE

- recirculation door

1шт.

8

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16"

2шт.

9

F63415

KNOB

- door control

1шт.

10

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

11

231-1445

NUT,5/16"-18, GB

NUT - lock, 5/16" N.C.

1шт.

12

321-2496

DECAL

- rear, "Environment Control"

1шт.
