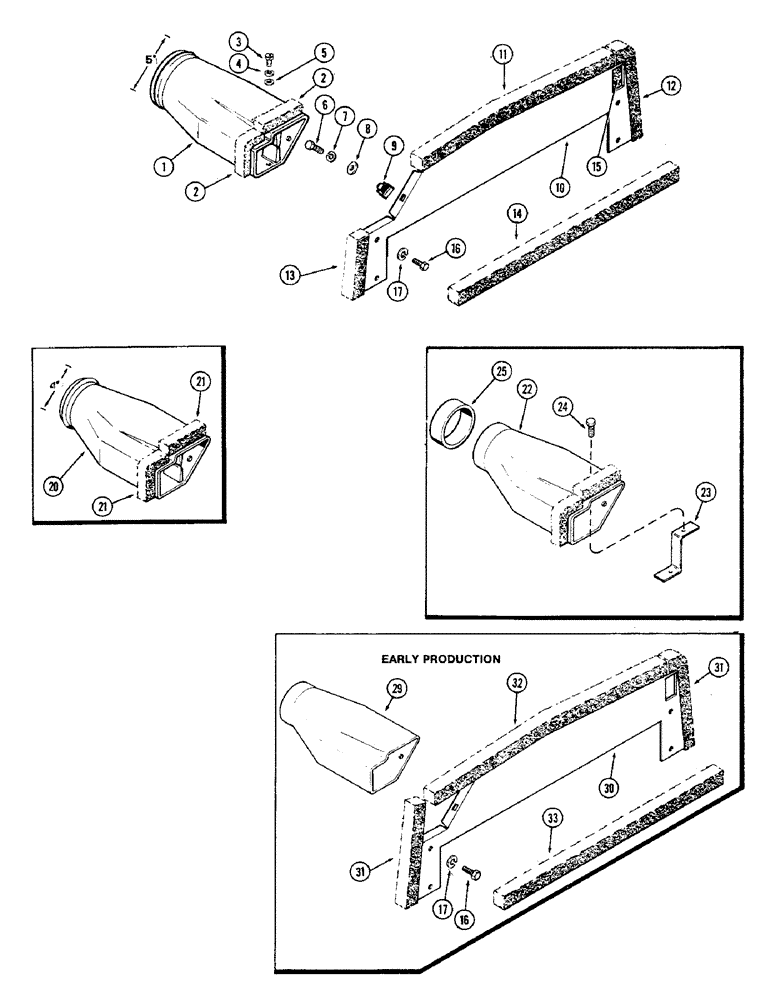

Запчасти Case IH 1370 (014) - AIR CLEANER INTAKE TUBE, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A139300

TUBE

ASSEMBLY - intake (1st used in production P.I.N. 8777726) Some tractors may have been field modified to include these parts., Serial Range: -8777726

1шт.

2

A66636

SEAL

- foam (1-1/4" sq. x 4-13/16") To be attached with adhesive 345-22.

2шт.

3

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - 5/16 x 3/4" hex. hd. self-tapping

1шт.

4

92-5

LOCK WASHER,5/16"

1шт.

5

195-103

WASHER,5/16"

- (3/8 x 7/8 x 5/64")

1шт.

6

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Tube to baffle Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

1шт.

9

1502286C2

NUT,Floating Cage, 5/16"-18

- retainer, 5/16" N.C.

1шт.

10

A143248

BAFFLE

ASSEMBLY - radiator (Replaces A66200 and A66631), Includes: Ref. 11 - 14

1шт.

NSS

NOT SOLD SEPARAT

BAFFLE - radiator

1шт.

11

A66633

SEAL

- top (1-1/4" sq. x 22") To be attached with adhesive 345-22.

1шт.

12

A63724

SEAL

- L.H. side (1-1/4" sq. x 9-3/4") To be attached with adhesive 345-22.

1шт.

13

A66632

SEAL

- R.H. side (1-1/4" sq. x 5-3/4") To be attached with adhesive 345-22.

1шт.

14

A135898

SEAL

SEAL - center (1-5/8" sq. x 25-13/64")

1шт.

15

A66634

SEAL

- L.H. corner (1-1/2" sq. x 2-13/16")

1шт.

16

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

17

92-5

LOCK WASHER,5/16"

4шт.

20

A66635

TUBE

ASSEMBLY - intake (w/built in support) (Replaces Ref. 22 - 25) (Order A139429 kit - Figure 012), Includes: Ref. 21, Serial Range: 8750826-8777725

1шт.

21

A66636

SEAL

- foam (1-1/4" sq. x 4-13/16) To be attached with adhesive 345-22.

2шт.

22

A66635

TUBE

ASSEMBLY - intake (w/out built in support) (See Ref. 20 and 29) (Order A139429 kit - Figure 012), Serial Range: -8750826

1шт.

23

A66620

BRACKET

- intake support (Order A139429 kit - Figure 012), Serial Range: -8750826

1шт.

24

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - self-tap, 5/16 x 3/4" hex. (Use w/A66620)

1шт.

25

A66637

RING

SUPPORT - tube inside, Serial Range: -8750826

1шт.

29

A66203

TUBE

- air intake (Early production. See Ref. 20 and 22) (Order A139429 kit -Figure 012)

1шт.

30

A66200

BAFFLE

ASSEMBLY - radiator (Early production. See Ref. 10), Includes: Ref. 31 - 33

1шт.

31

A63724

SEAL

- side (1-1/4" sq. x 9-3/4") To be attached with adhesive 345-22.

2шт.

32

A63725

SEAL

- top (1-1/4" sq. x 26-1/2") To be attached with adhesive 345-22.

1шт.

33

A63720

SEAL

- center (1-1/4" sq. x 25-13/64") To be attached with adhesive 345-22.

1шт.
