(430) - AGRI-KING SEAT, VINYL WITHOUT CAB, USED P.I.N. 8736001 TO 8797501

Запчасти Case IH 1370 (430) - AGRI-KING SEAT, VINYL WITHOUT CAB, USED P.I.N. 8736001 TO 8797501 (09) - CHASSIS/ATTACHMENTS

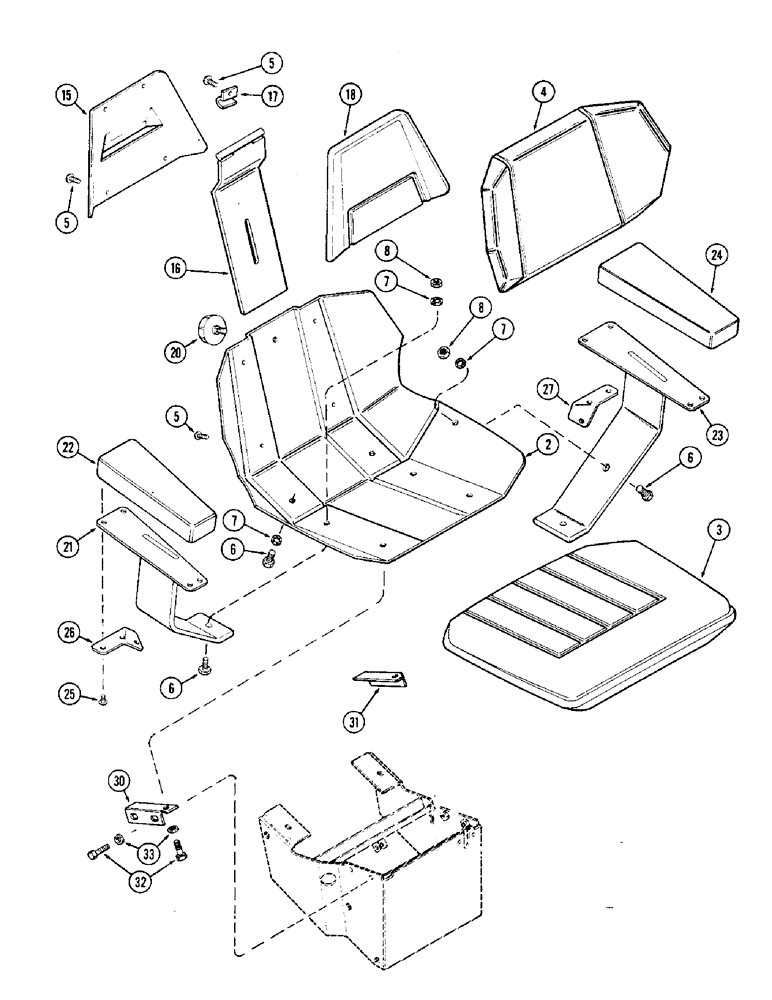

Схема запчастей Case IH 1370 - (430) - AGRI-KING SEAT, VINYL WITHOUT CAB, USED P.I.N. 8736001 TO 8797501 (09) - CHASSIS/ATTACHMENTS
5
24
6
26
33
8
31
7
8
21
5
23
32
18
4
7
2
6
5
17
25
16
27
30
7
15
22
3
6
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A66641

SEAT

ASSEMBLY - complete, Includes: Ref. 2 - 27

1шт.

2

A66642

FRAME

ASSEMBLY - seat

1шт.

3

A60462

CUSHION

ASSEMBLY - seat bottom w/pan

1шт.

4

A64823

CUSHION

ASSEMBLY - lower backrest and pan

1шт.

5

182-526

SCREW,Cross Pan Hd, #10 - 24 x 3/8"

- #10-24 x 3/8" pan hd. Phillips

12шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

7

92-6

LOCK WASHER,3/8"

8шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

15

A66649

SUPPORT

FRAME - upper backrest

1шт.

16

A66648

SUPPORT

SPRING ASSEMBLY - backrest

1шт.

17

A60479

CLIP

- upper backrest pivot

1шт.

18

A60472

CUSHION

- upper backrest

1шт.

20

A60468

KNOB

ASSEMBLY - adjusting, backrest

1шт.

21

A66643

SUPPORT

- R.H. armrest

1шт.

22

A61098

CUSHION

- R.H. armrest

1шт.

23

A66644

SUPPORT

- L.H. armrest

1шт.

24

A61099

CUSHION

- L.H. armrest

1шт.

25

187-534

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - #10 x 1/2" rd. hd.

8шт.

26

A66645

SUPPORT

- R.H., Serial Range: armrest-backrest

1шт.

27

A66646

SUPPORT

- L.H., Serial Range: armrest-backrest

1шт.

30

A66650

BRACKET

- seat support, R.H.

1шт.

31

A66651

BRACKET

- seat support, L.H.

1шт.

32

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.
