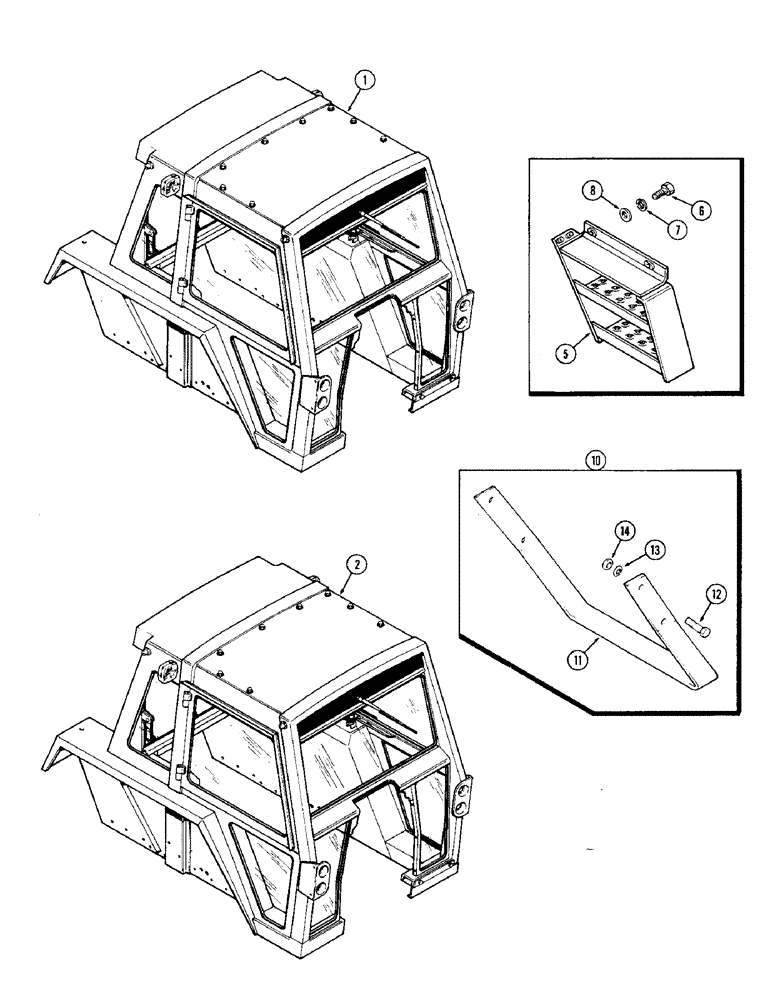

Запчасти Case IH 1370 (450) - CAB ASSEMBLY, WHITE (09) - CHASSIS/ATTACHMENTS

1

F98165

CAB - w/o heater or air conditioner (Mach. item) (1st used cab ser. no. 7882601)

1шт.

1

F98135

CAB - w/o heater and air conditioner (Mach. item), Serial Range: 7855101-782600

1шт.

1

F98166

CAB - w/air conditioner (Mach. item) (1st used cab ser. no. 7882601)

1шт.

1

F98136

CAB - w/air conditioner (Mach. item), Serial Range: 7855101-7882600

1шт.

1

F98167

CAB - w/heater (Mach. item) (1st used cab ser. no. 7882601)

1шт.

1

F98137

CAB - w/heater (Mach. item), Serial Range: 7855101-7882600

1шт.

1

F98168

CAB - w/air conditioner and heater (Mach. item) (1st used cab ser. no. 7882601)

1шт.

1

F98138

CAB - w/air conditioner and heater (Mach. item), Serial Range: 7855101-7882600

1шт.

2

F89975

CAB - w/o heater and air conditioner (Mach. item), Serial Range: -7855101

1шт.

2

F89976

CAB - w/air conditioner (Mach. item), Serial Range: -7855101

1шт.

2

F89977

CAB - w/heater (Mach. item), Serial Range: -7855101

1шт.

2

F89978

CAB - w/air conditioner and heater (Mach. item)

1шт.

3

F89861

CAB - w/o heater and air conditioner (Mach. item), assembly (desert)

1шт.

3

F89862

CAB - w/air conditioner (Mach. item) assembly ( desert)

1шт.

3

F89863

CAB - w/heater (Mach. item), assembly ( desert)

1шт.

3

F89864

CAB - w/air conditioner and heater (Mach. item), assembly ( desert)

1шт.

5

F89730

STEP

- L.H. side, with cab

1шт.

6

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- (3/8 x 3/4" N.C. hex.), steps with cab

4шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Steps w/cab 3/8"

4шт.

8

195-526

WASHER,7/16" x 7/8" x .083"

- (7/16 x 7/8 x 5/64"), steps with cab

4шт.

10

A65003

STEP

ATTACHMENT - step extension (Machinery item), with cab, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

STEP - extension (Order A65003), with cab

1шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

w/ Cab Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , w/Cab 1/2"

4шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/Cab 1/2"-13, G5

4шт.
