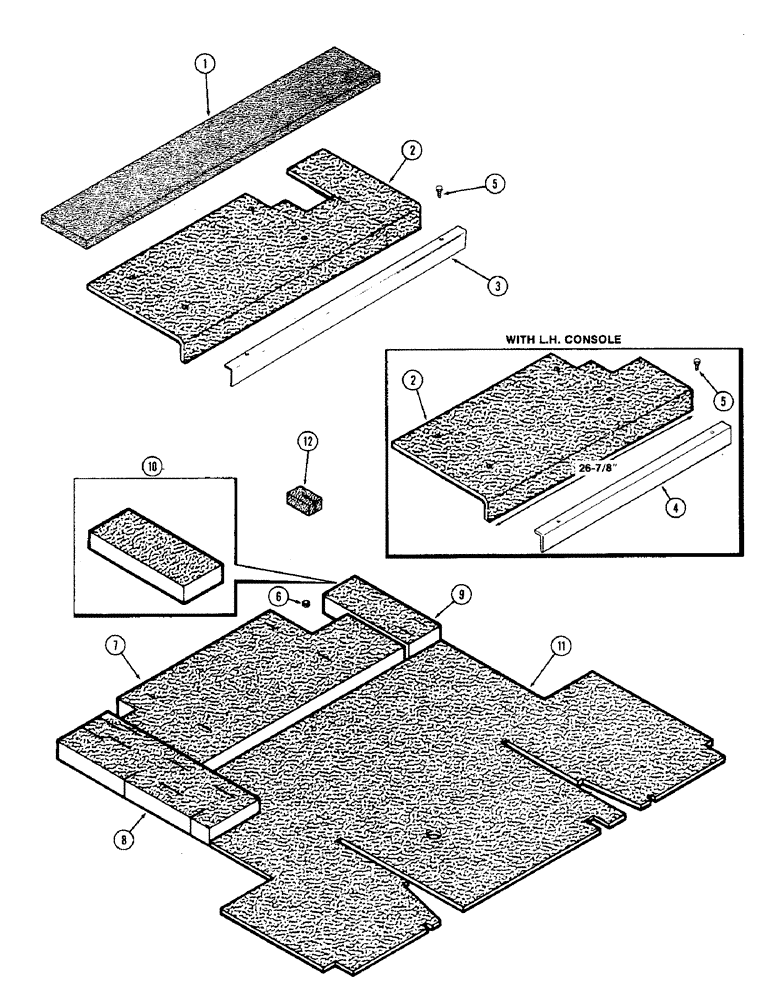

Запчасти Case IH 1370 (474) - CAB, FLOOR MATS AND INSULATION, USED PRIOR TO P.I.N. 8755218 (09) - CHASSIS/ATTACHMENTS

1

A61699

SEAL

- fuel tank sealing Attach with adhesive 345-22. (Order A141916)

1шт.

2

A64992

MAT

- floor, rear (w/L.H. console cut to 26-7/8" at perforation line) (Order A135684 Figure 472)

1шт.

3

A62461

FLOOR

ANGLE - floormat retaining (w/o L.H. console) (30-55/64" lg.)

1шт.

4

A64146

BRACKET

ANGLE - floormat retaining (w/L.H. console) (26" long)

1шт.

5

187-1060

SELF-TAP SCREW,Sltd Hex Hd, 1/4" x 3/4"

SCREW - 1/4 x 3/4" sltd. self-drill and tap

2шт.

6

A60818

GROMMET

- hand brake wire

1шт.

7

A64140

FOAM

- sealing, seat support Attach with adhesive 345-22.

1шт.

8

A64138

FOAM

- sealing, R.H. console Attach with adhesive 345-22. (Order A135897)

1шт.

9

A64139

FOAM

- sealing, L.H. console Attach with adhesive 345-22.

1шт.

10

A64141

FOAM

- sealing (w/o L.H. console) Attach with adhesive 345-22.

1шт.

11

A64142

MAT

- floor, front (Order A135683 Figure 472)

1шт.

12

A60819

FOAM

- sealing, hand brake Attach with adhesive 345-22.

1шт.

13

A64438

PLUG

- floor, front (w/o diff. lock) Attach with adhesive 345-22. (Order A135699)

1шт.
