(269C) - SEAT, CLOTH, WITH SWIVEL

Запчасти Case IH 1570 (269C) - SEAT, CLOTH, WITH SWIVEL (09) - CHASSIS/ATTACHMENTS

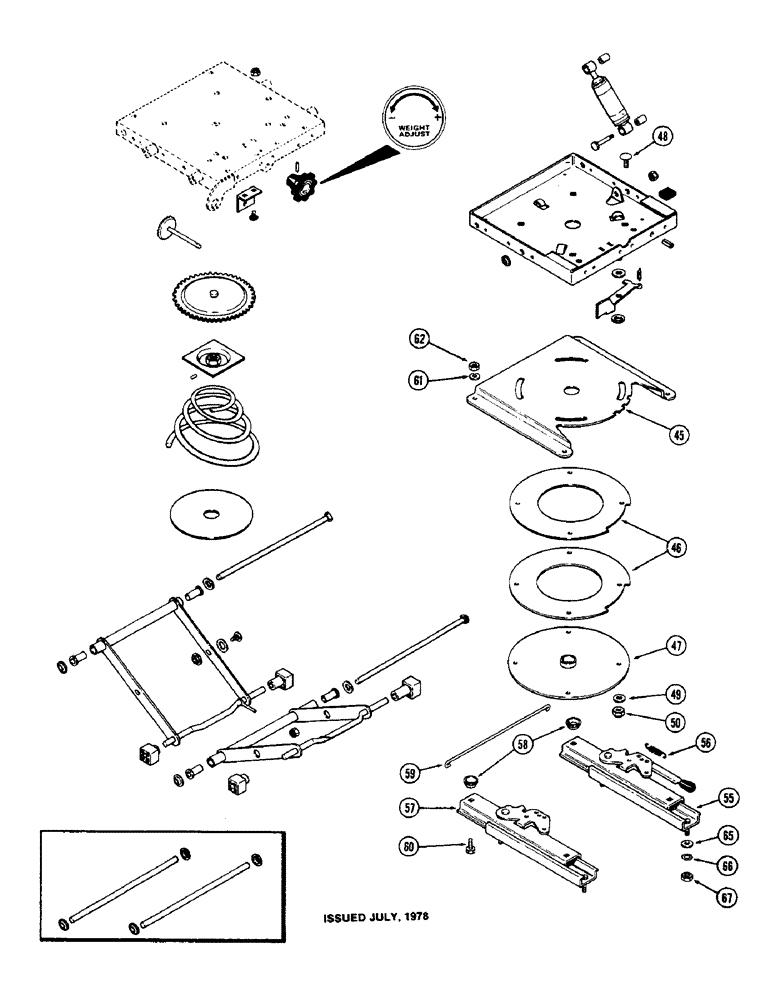

Схема запчастей Case IH 1570 - (269C) - SEAT, CLOTH, WITH SWIVEL (09) - CHASSIS/ATTACHMENTS
45
47
55
61
58
67
62
60
65
49
46
59
57
66
48
56
50
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A139350

SEAT

AND SUSPENSION ASSY, Continued from Figure 269A, Includes Ref. 45 - 62

1шт.

45

A45582

PLATE

swivel latch

1шт.

46

A45514

DISC

BEARING swivel

2шт.

47

A45526

PLATE

ASSY bottom swivel

1шт.

48

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT carriage head, 3/8 x 1-1/4" NC

4шт.

49

195-25

WASHER,3/8"

4шт.

50

131-6

LOCK NUT,3/8"-16, GC

NUT lock, hex, 3/8" NC

4шт.

55

A45522

SLIDE

ASSY L.H. side, with handle, Includes Ref. 56

1шт.

56

A45060

SPRING

handle

1шт.

57

A45523

SLIDE

ASSY locking, R.H. side

1шт.

58

A45111

SPACER

slides, Order with slides

4шт.

59

A45524

ROD

latch connecting

1шт.

60

A47172

BOLT

carriage head, 5/16 x 1" NC

4шт.

61

92-5

LOCK WASHER,5/16"

4шт.

62

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" NC

4шт.

65

195-521

WASHER,5/16", SAE

11/32 x 11/16 x 1/16"

4шт.

66

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

4шт.

67

9635082

NUT,5/16" - 18, Gr 5

4шт.
