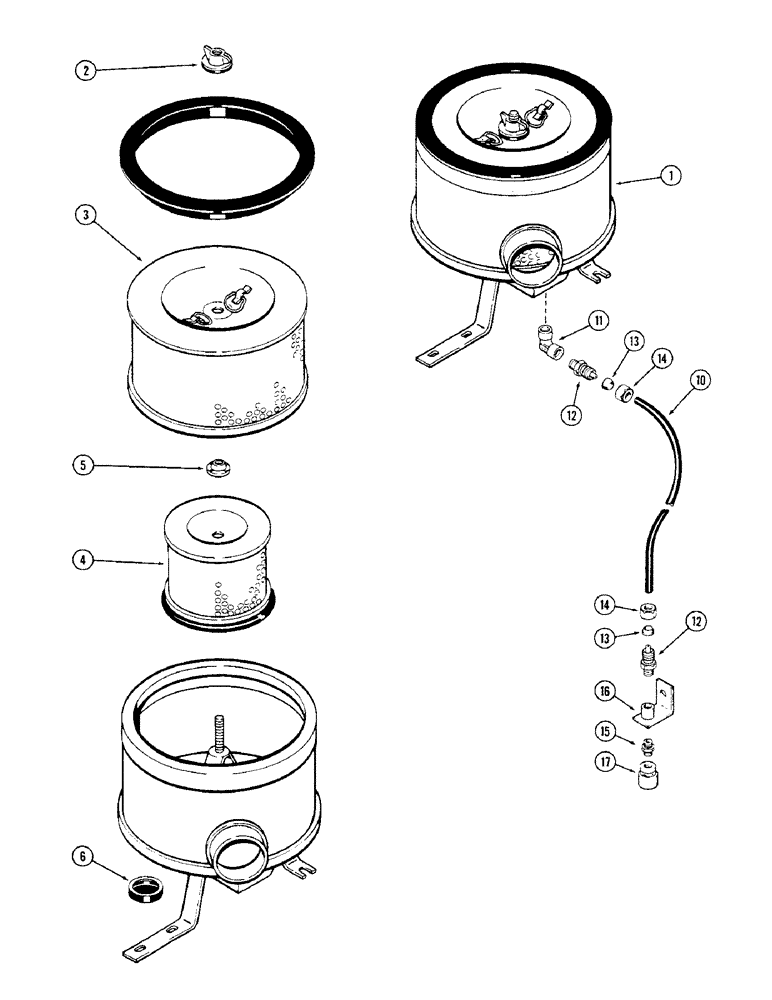

Запчасти Case IH 1570 (010) - AIR CLEANER, 504BDT DIESEL ENGINE (02) - ENGINE

1

A137666

AIR CLEANER ASSY, Includes Ref. 2 - 6

1шт.

2

F91761

WING NUT

primary element

1шт.

3

A44694

AIR FILTER

ELEMENT primary, outer

1шт.

4

A44695

AIR FILTER

ELEMENT secondary, inner

1шт.

5

A44188

SEAL

NUT safety element

1шт.

6

A139795

PLUG

opening

1шт.

10

A61938

TUBE air restriction indicator, nylon, 5/32 x 1/4 x 25"

1шт.

11

221-374

ELBOW,90 Degree, 1/8" NPT

90 degree, 1/8" PT, air restriction indicator

1шт.

12

222-5102

COUPLING, BREAK AWAY,7/16"-24 x 1/8" NPT

COUPLING, 1/4" tube, 1/8" PT, Includes Ref. 13 and 14, air restriction indicator

2шт.

13

222-5185

SLEEVE,1/4" Tube

For , air restriction indicator 1/4" Tube

1шт.

14

222-5180

TUBE NUT,7/16"-24

for 1/4" tube, air restriction indicator 7/16"-24

1шт.

15

217-194

FITTING,1/8" - 27 Male NPTF x 1/8" - 27 Male NPTF

NIPPLE brass hex, 1/8 x 1/8", air restriction indicator

1шт.

16

A61940

BRACKET

air restriction indicator

1шт.

17

A66907

INDICATOR

air restriction

1шт.
