(314) - FENDERS, 12" FENDER, IST USED TRACTOR S/N 8693001 AND HANDLES, USED PRIOR TO TRACTOR S/N 8693001

Запчасти Case IH 770 (314) - FENDERS, 12" FENDER, IST USED TRACTOR S/N 8693001 AND HANDLES, USED PRIOR TO TRACTOR S/N 8693001 (09) - CHASSIS/ATTACHMENTS

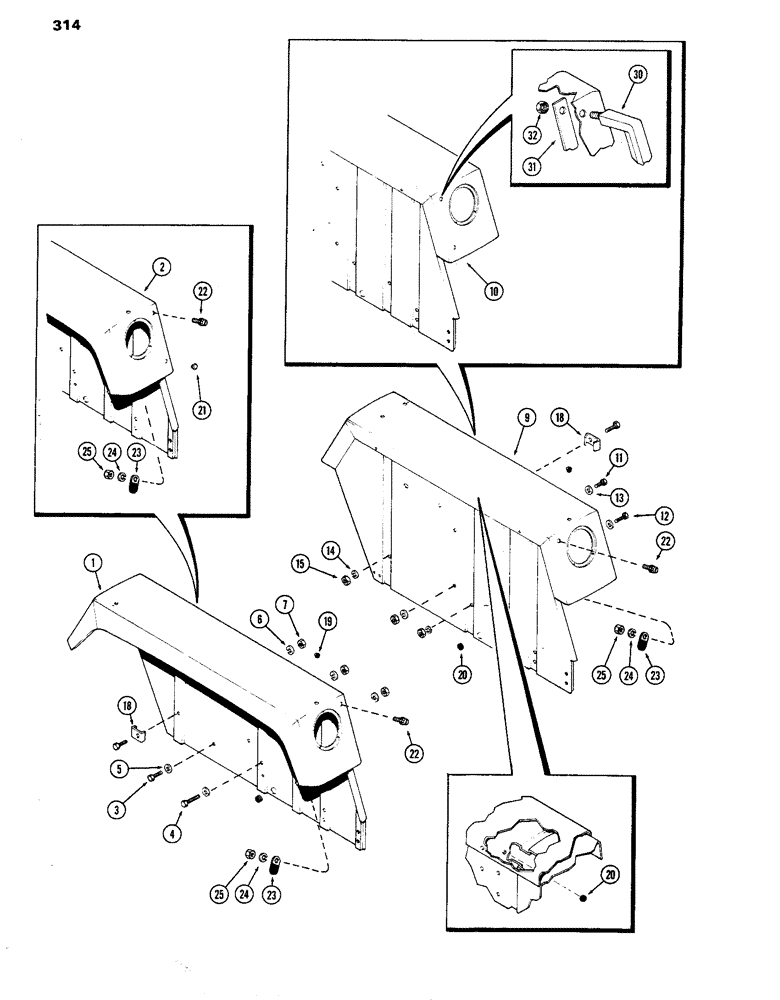

Схема запчастей Case IH 770 - (314) - FENDERS, 12" FENDER, IST USED TRACTOR S/N 8693001 AND HANDLES, USED PRIOR TO TRACTOR S/N 8693001 (09) - CHASSIS/ATTACHMENTS
18
3
7
30
18
12
5
25
24
2
21
24
25
6
24
20
13
32
22
23
23
1
23
9
4
10
20
15
22
14
31
11
19
22
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A64878

FENDER

ASSY. - 12", R.H., Start Serial: 8693001

1шт.

2

A62296

FENDER

ASSY. - 12", R.H., Serial Range: -8693001

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

R.H. fender Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

4

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

R.H. fender Hex, 3/8"-16 x 1 3/4", G5

5шт.

5

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32", R.H. fender

6шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , RH fender 3/8"

6шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , R.H. fender 3/8"-16, G5

6шт.

9

A64879

FENDER

ASSY. - 12", L.H., Start Serial: 8693001

1шт.

10

A62297

FENDER

ASSY. - 12", L.H., Serial Range: -8693001

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

L.H. fender Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

L.H. fender Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

LH fender Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

12

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

L.H. fender Hex, 3/8"-16 x 1 3/4", G5

3шт.

13

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32", L.H. fender

6шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , LH fender 3/8"

6шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , L.H. fender 3/8"-16, G5

4шт.

18

A59318

BRACKET

- fender side sheet mounting, R.H. & L.H.

8шт.

19

353-405

PLUG,Dome, .562" hole, Nylon

- button, 9/16" hole (Black Nylon)

2шт.

20

A59722

GROMMET

- wire harness

2шт.

21

353-403

PLUG,Dome, .437" hole, Nylon

(RH fender handle mtg. hole, lower) Dome, .437" hole, Nylon

1шт.

22

175-467

BOLT,Sl Truss Hd, 3/8" - 16 x 5/8"

- (3/8 x 5/8" N.C. truss hd. slotted)

1шт.

23

A22883

CLIP

- fender wire harness

1шт.

24

92-6

LOCK WASHER,3/8"

1шт.

25

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex)

1шт.

30

A60530

HANDLE

- R.H. & L.H., Serial Range: -8693001

2шт.

31

A59338

PLATE

- handle mounting, Serial Range: -8693001

2шт.

32

230-4216

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. hex. lock, Handles, Serial Range: -8693001

4шт.
