(064) - FUEL INJECTION FILTER SYSTEM, (336B) DIESEL ENGINE, 1ST USED ENGINE SEIAL NUMBER 2323001

Запчасти Case IH 870 (064) - FUEL INJECTION FILTER SYSTEM, (336B) DIESEL ENGINE, 1ST USED ENGINE SEIAL NUMBER 2323001 (03) - FUEL SYSTEM

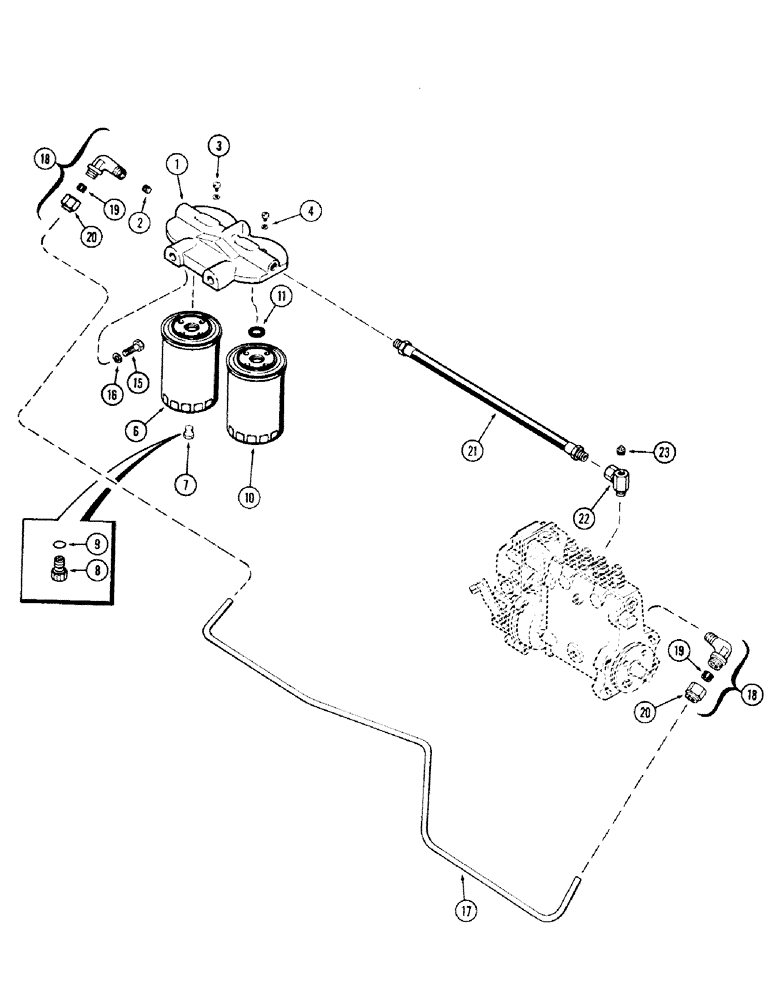

Схема запчастей Case IH 870 - (064) - FUEL INJECTION FILTER SYSTEM, (336B) DIESEL ENGINE, 1ST USED ENGINE SEIAL NUMBER 2323001 (03) - FUEL SYSTEM
21
16
8
20
19
7
19
11
18
9
20
18
4
3
1
6
17
22
23
2
10
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A62339

HEAD

ASSY. - filter mounting (includes ref. 2)

1шт.

2

221-41

PLUG

- 1/8" P.T.

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleeder

2шт.

4

A20662

GASKET

WASHER - bleeder screw

2шт.

CASA41745

FUEL FILTER

FILTER KIT - fuel (includes ref. 6 - 11)

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER - 1st stage (includes ref. 7, 8 & 9)

1шт.

7

221-1661

PLUG

- 1/8" hex, hd. pipe

1шт.

8

G49080

PLUG

- 3/8" N.F. hex, placstic

1шт.

9

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - w/plastic plug, 3/8 x 9/16 x 3/32"

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER - 2nd stage (includes ref. 11)

1шт.

11

A42315

GASKET

-, Serial Range: filter-head

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

A62341

TUBE

- transfer pump to 1st filter

1шт.

18

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 1/4" P.T., 5/16" tube (includes ref. 19 & 20)

2шт.

19

222-103

SLEEVE,5/16" Tube

1шт.

20

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

21

A58774

HOSE,19.05mm ID x 254mm L, SAE 100R6

- filter, Serial Range: head-pump

1шт.

22

A20539

FITTING

UNION -, Serial Range: hose-pump

1шт.

23

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" P.T. sq. hd.

1шт.
