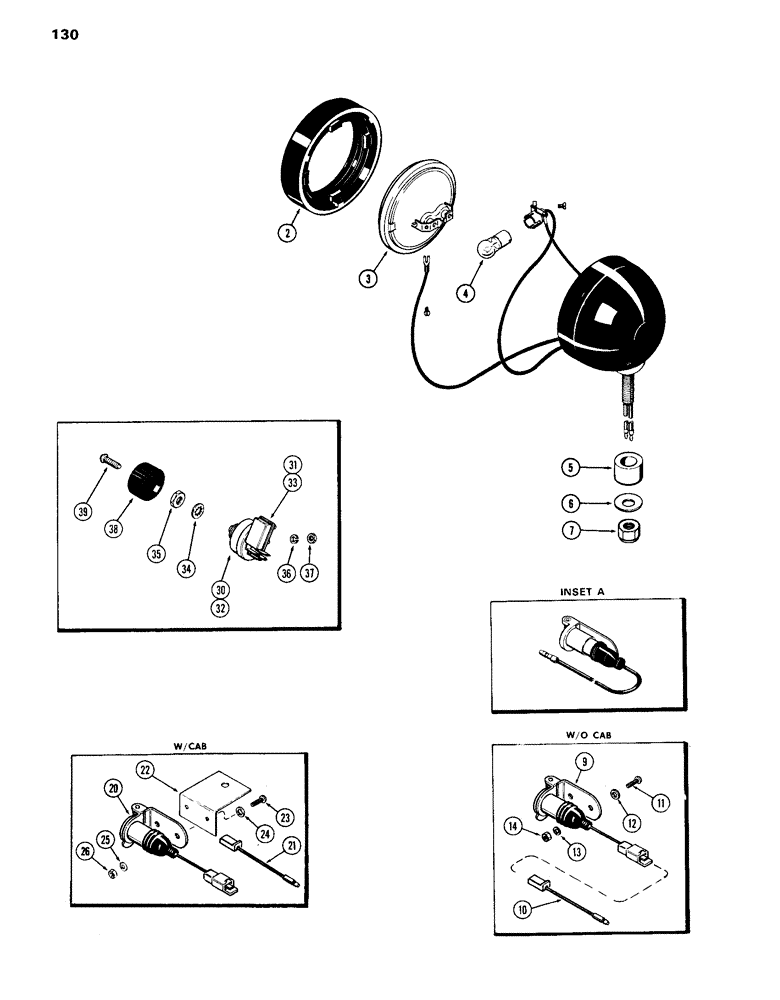

Запчасти Case IH 870 (130) - LIGHTING EQUIPMENT, TAIL AND WARNING LAMP (04) - ELECTRICAL SYSTEMS

A59703

LAMP

- rear flood & tail (includes ref. 2 - 5)

1шт.

2

A25213

RETAINER

- sealed beam

1шт.

3

A42295

BULB

- sealed beam

1шт.

4

B50223

BULB

- lamp, tail

1шт.

5

D37048

BUSHING

- pivot, lamp mounting

1шт.

6

D37049

WASHER

- wave, tail lamp mounting

1шт.

7

129-125

NUT,1/2"-20, G5

1шт.

A60512

SOCKET/RECEPTACLE

ATTACHMENT - socket (Mach. Item), rear auxiliary outlet w/o cab (includes ref. 9 - 14)

1шт.

9

A65059

SOCKET/RECEPTACLE

SOCKET - rear auxiliary outlet (replcd. A8170, See Inset A), w/o cab

1шт.

10

A65060

ELECTRICAL WIRE

WIRE - socket adapter lead, rear auxiliary outlet w/o cab

1шт.

11

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- machine (#10-24 x 3/4" rd. hd.) (plated), rear auxiliary outlet w/o cab

2шт.

12

195-513

WASHER,#10

- (7/32 x 1/2 x 18 gauge) (plated), rear auxiliary outlet w/o cab

2шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Rear auxiliary outlet w/o cab #10

2шт.

14

129-17

NUT,Hex, #10 - 24

NUT - (#10 N.C. hex) (plated), rear auxiliary outlet w/o cab

2шт.

A61680

SCREW

ATTACHMENT - socket (Mach. Item), rear auxiliary outlet w/ cab (includes ref.20 - 26)

1шт.

20

A65059

SOCKET/RECEPTACLE

SOCKET - rear auxiliary outlet w/cab (replcd. A8170, See Inset A)

1шт.

21

A65060

ELECTRICAL WIRE

WIRE - socket adapter lead, rear auxiliary outlet w/cab

1шт.

22

A61679

BRACKET - socket mounting, rear auxiliary outlet w/cab

1шт.

23

163-4

SCREW,Hex, #10 - 32 x 5/8"

- cap (#10 x 5/8" socket hd.) (plated), rear auxiliary outlet w/cab

2шт.

24

195-512

WASHER,#10

- (7/32 x 7/16 x 1/16") (plated), rear auxiliary outlet w/cab

2шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Rear auxiliary outlet w/cab #10

2шт.

26

129-37

NUT,#10-32

Rear auxiliary outlet w/cab #10-32

2шт.

30

A64499

SWITCH

ASSY. - (2 beam lamp) (1st used trac. ser. no. 8693001), light switch (includes ref. 31)

1шт.

31

A43708

BREAKER

- circuit (40 amp.), light switch

1шт.

32

A59694

SWITCH

ASSY. - (single beam lamp) (Order A64499) (used prior to trac. ser. no. 8693001), light switch (includes ref. 33)

1шт.

33

A43658

BREAKER

- circuit (30 amp.), light switch

1шт.

34

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - lock (5/8" int. teeth Shakeproof), light switch

1шт.

35

A20467

NUT

- lock, light switch

1шт.

36

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Light switch #10

2шт.

37

129-37

NUT,#10-32

Light switch #10-32

2шт.

38

A59695

KNOB

- light switch

1шт.

39

A59696

SCREW,#8 - 32 x 5/8"

- light switch knob

1шт.
