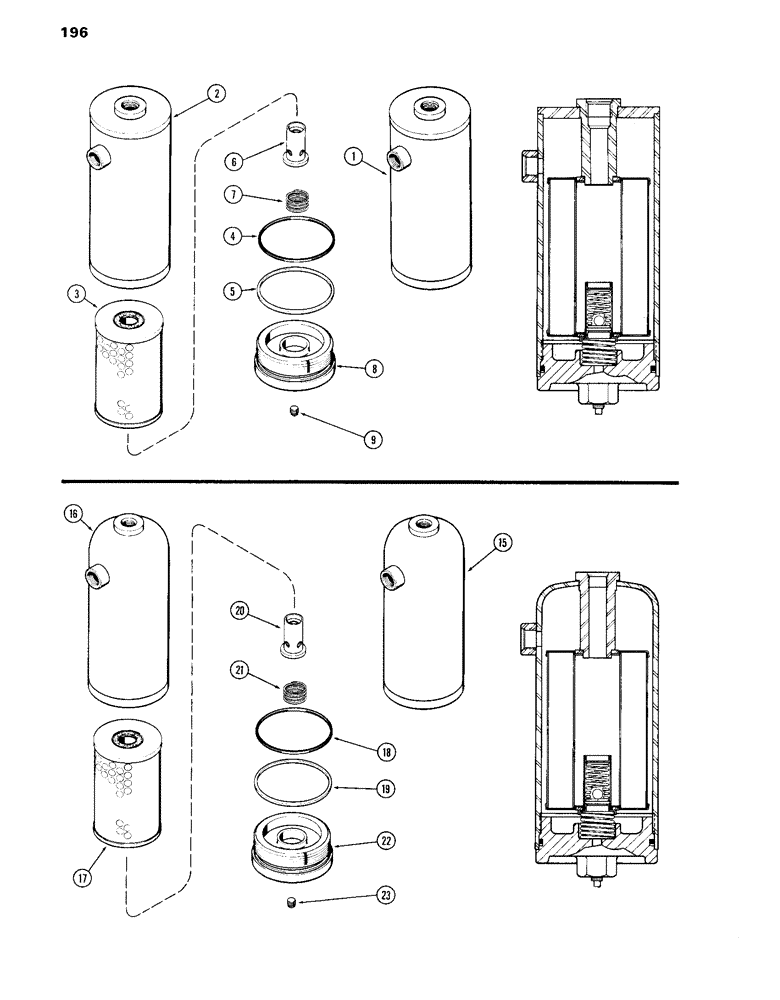

Запчасти Case IH 870 (196) - G100000 HYDRAULIC OIL FILTER, POWER SHIFT (06) - POWER TRAIN

1

G100000

SPARE PART

FILTER ASSY. - (10 micron) (Order A60766) (includes ref. 2 - 9)

1шт.

2

G100002

TUBE,7.89" L

ASSY. - filter (Order A60767)

1шт.

A65854

HYDRAULIC OIL FILTER

ELEMENT KIT - filter (includes ref. 3, 4 & 5)

1шт.

3

NSS

NOT SOLD SEPARAT

FILTER - (10 micron)

1шт.

4

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - 4 x 4-1/4 x 9/64"

1шт.

5

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

6

D37207

VALVE

- relief

1шт.

7

D31212

SPRING

- retaining

1шт.

8

A60765

CAP

- END

1шт.

9

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" sq. hd. pipe

1шт.

15

A60766

SPROCKET

FILTER ASSY. - hyd. oil (10 Micron) (White Wrapper) A60766 (includes ref. 16 - 23)

1шт.

16

A60767

BODY

- oil filter, A60766 hydraulic

1шт.

A65854

HYDRAULIC OIL FILTER

ELEMENT KIT - (Replaces A61235 & A62871) A60766 hydraulic oil filter (includes ref. 17, 18 & 19)

1шт.

17

NSS

NOT SOLD SEPARAT

ELEMENT - oil filter (10 Micron) A60766 hydraulic

1шт.

18

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - 4 x 4-1/4 x 9/64", A60766 hydraulic oil filter

1шт.

19

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

(Leather) Oil filter body to cap, A60766 Hydraulic oil filter

1шт.

20

D37207

VALVE

- relief, oil filter, hydraulic, A60766

1шт.

21

D31212

SPRING

- retaining, oil filter, hydraulic, A60766

1шт.

22

A60765

CAP

- end, oil filter, hydraulic, A60766

1шт.

23

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe (1/8" square head) hydraulic oil filter A60766

1шт.
