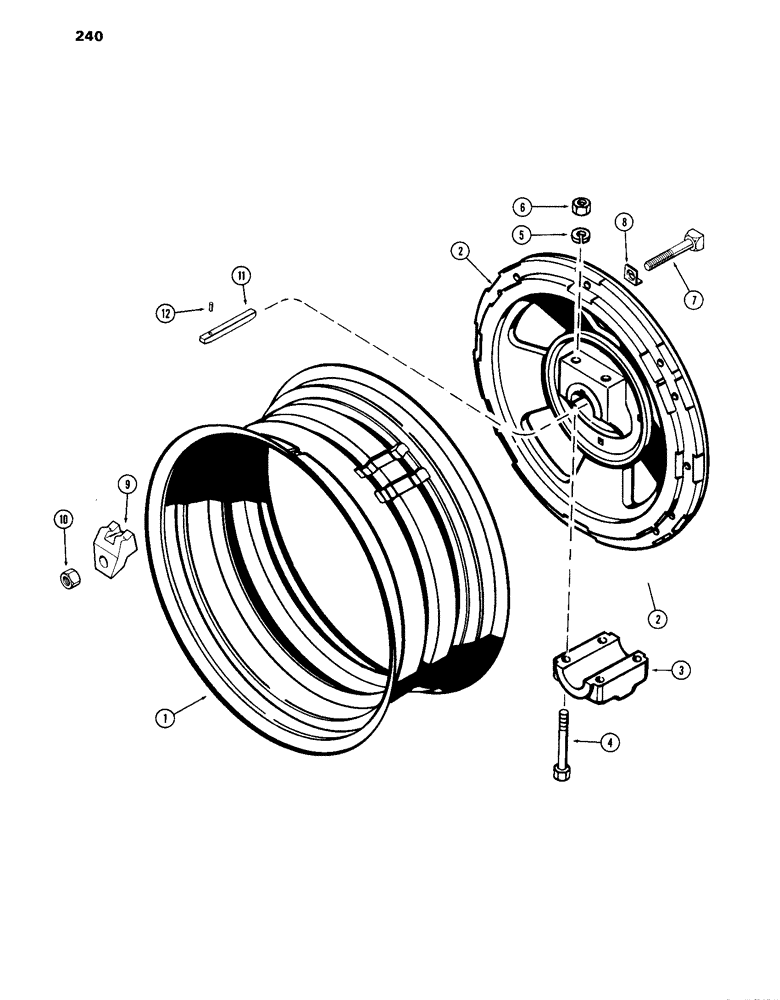

Запчасти Case IH 870 (240) - DUAL REAR WHEELS, CAST WITH 34 INCH RIMS, USED WITH 3-3/16 INCH DIAMETER AXLE (06) - POWER TRAIN

A60574

ATTACHMENT - outer dual wheels (Set of 2) (Mach. Item) (Not Illustrated) (includes ref. 1 - 12)

1шт.

1

A57045

RIM

- rear wheel (takes 18.4 x 34 tire)

2шт.

2

A60016

RIM

WHEEL ASSY. - rear, standard hub (includes ref. 3 - 6)

2шт.

3

A57032

CAP

- hub

1шт.

4

A22389

WHEEL BOLT

BOLT - cap to hub (7/8 x 7-1/2" N.F. hex)

4шт.

5

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

6

25-1114

NUT,7/8"-14, G5

- hex (7/8" N.F.)

4шт.

7

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- (3/4" x 3-1/2" N.C., square head, cad. plated)

12шт.

8

A34799

LOCK WASHER

- lock, rim to wheel, Serial Range: clamp-bolt

12шт.

9

A57654

CLAMP

- double ramp type, Serial Range: rim-wheel

12шт.

10

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex (3/4" N.C., heavy, cadmium plated)

12шт.

11

A34890

BUCKET TOOTH KEY

KEY - hub to rear axle

2шт.

12

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.
