(249A) - P.T.O. HOUSINGS, CASTING NUMBER A65824

Запчасти Case IH 870 (249A) - P.T.O. HOUSINGS, CASTING NUMBER A65824 (06) - POWER TRAIN

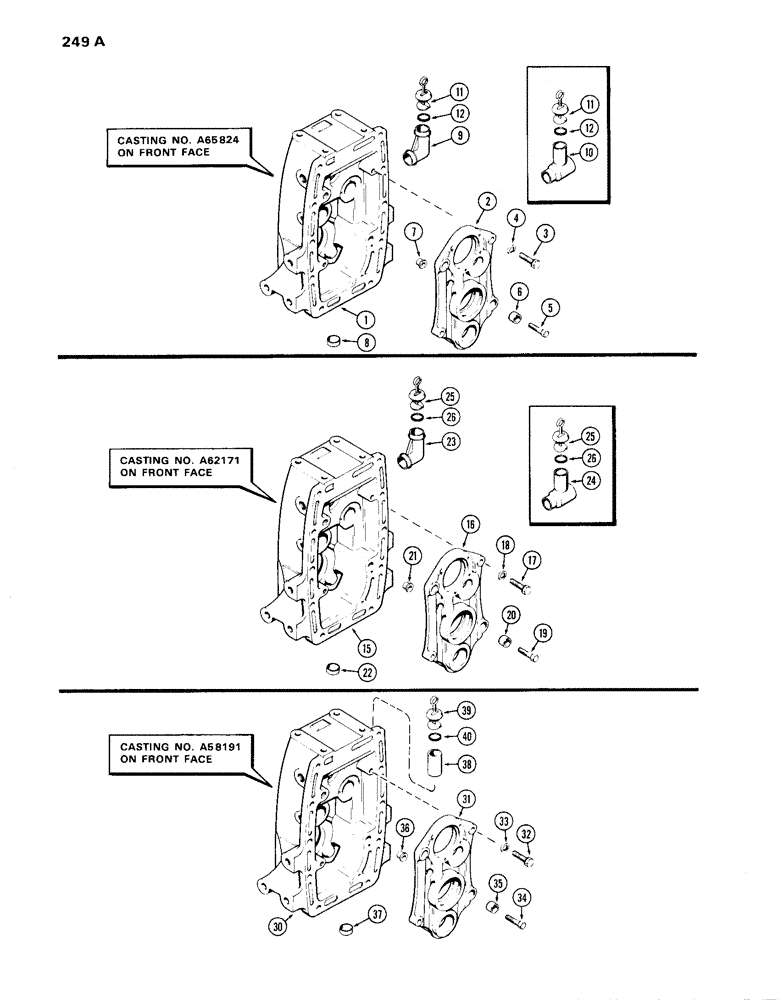

Схема запчастей Case IH 870 - (249A) - P.T.O. HOUSINGS, CASTING NUMBER A65824 (06) - POWER TRAIN
4
38
5
3
31
30
17
22
32
21
23
12
37
26
33
40
6
20
1
34
18
16
7
19
39
12
24
8
2
15
35
11
9
11
25
25
10
36
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A65825

HOUSING

ASSY. - P.T.O. & hyd. pump (Replaces A62190 & A59028) (includes ref. 1 - 7)

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. & hyd. pump (Order A65825)

1шт.

2

NSS

NOT SOLD SEPARAT

CARRIER - P.T.O. bearing carrier (Order A65825)

1шт.

3

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C. hex)

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

6

A50011

SLEEVE

- bearing

2шт.

7

A32426

BUSHING

SPACER - bearing carrier dowel sleeve

2шт.

8

41-1020

PLUG,Cup, 1 1/4"

- cup (1-17/64")

1шт.

9

A66729

TUBE

- oil filler (1st used trans. ser. no. 2452272)

1шт.

10

A62172

TUBE

- oil filler & breather (Used prior to trans. ser. no. 2452272) (Order A66729)

1шт.

11

A64404

BREATHER

ASSY. - filler tube (includes ref. 12)

1шт.

12

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - 1 x 1-1/4 x 1/8"

1шт.

A62190

HOUSING

ASSY. - (Replaced A59028)(Order A65825) [casting no. A62171] (includes ref. 15 - 21)

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. & hyd. pump (Order A65825) [casting no. A62171]

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. bearing carrier (Order A65825) [casting no. A62171]

1шт.

17

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex [casting no. A62171]

2шт.

18

92-8

LOCK WASHER,1/2"

[casting no. A62171] 1/2"

2шт.

19

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

[casting no. A62171] Hex, 1/2"-13 x 2", G5

2шт.

20

A50011

SLEEVE

- dowel, bearing carrier [casting no. A62171]

2шт.

21

A32426

BUSHING

SPACER - bearing carrier [casting no. A62171]

2шт.

22

41-1020

PLUG,Cup, 1 1/4"

- cup (1-17/64") [casting no. A62171]

1шт.

23

A66729

TUBE

- oil filler (1st used trans. ser. no. 2452272) [casting no. A62171]

1шт.

24

A62172

TUBE

- oil filler (Used prior to trans. ser. no. 2452272) (Order A66729) [casting no. A62171]

1шт.

25

A64404

BREATHER

ASSY. - filler tube [casting no. A62171] (includes ref. 26)

1шт.

26

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - 1 x 1-1/4 x 1/8" [casting no. A62171]

1шт.

A59028

HOUSING

ASSY. - (Order A65825 & A62172) [casting no. A58191] (includes ref. 30 - 37)

1шт.

30

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. & hyd. pump (Order A65825) [casting no. A58191]

1шт.

31

NSS

NOT SOLD SEPARAT

CARRIER - P.T.O. bearing carrier (Order A65825) [casting no. A58191]

1шт.

32

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C. hex) [casting no. A58191]

2шт.

33

92-8

LOCK WASHER,1/2"

[casting no. A58191] 1/2"

2шт.

34

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

[casting no. A58191] Hex, 1/2"-13 x 2", G5

2шт.

35

A50011

SLEEVE

- bearing [casting no. A58191]

2шт.

36

A32426

BUSHING

SPACER - bearing carrier dowel sleeve [casting no. A58191]

2шт.

37

41-1020

PLUG,Cup, 1 1/4"

- P.T.O. hsg. (1-17/64" cup type) [ casting no. A58191]

1шт.

38

A59122

TUBE - oil filler [casting no. A58191]

1шт.

39

A64404

BREATHER

ASSY. - filler tube [casting no. A58191] (includes ref. 40)

1шт.

40

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - (1 x 1-1/4 x 1/8") [casting no. A58191]

1шт.
