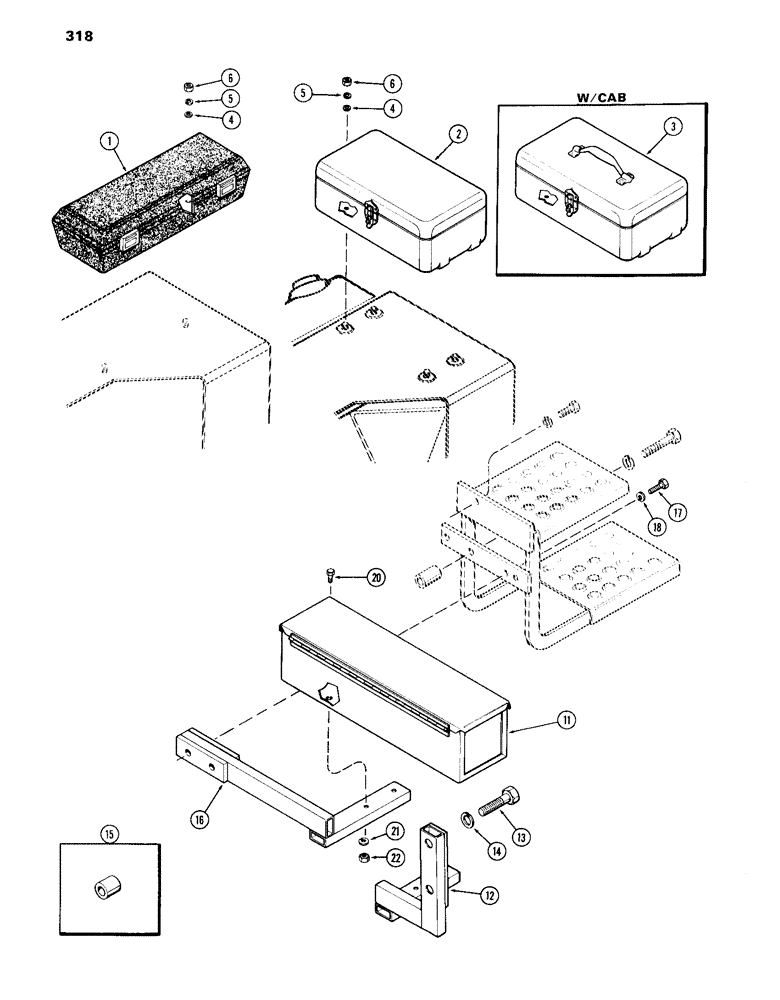

Запчасти Case IH 870 (318) - TOOL BOX (09) - CHASSIS/ATTACHMENTS

1

A66152

BOX

- tool (plastic) (used w/ or w/o cab)(Replaces A61174 and A61788 tool boxes)

1шт.

2

A61174

BOX

- tool (metal) (mounted on fuel tank cover) (w/o cab) (Order A66152)

1шт.

3

A61788

BOX, TOOL

BOX - tool (metal) (w/cab)(Order A66152)

1шт.

4

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

A61831

BOX, TOOL

ATTACHMENT - tool box (Mach. Item) (includes ref. 11 - 18 and 20, 21, 22)

1шт.

11

A59844

BOX, TOOL

BOX ASSY. - tool

1шт.

12

A61826

SUPPORT ASSY. - front

1шт.

13

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

15

A59851

SPACER - (used w/o wrapper)

2шт.

16

A61822

SUPPORT ASSY. - rear

1шт.

17

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

20

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16 x 1-1/2" N.C. hex

4шт.

21

92-5

LOCK WASHER,5/16"

4шт.

22

131-4

LOCK NUT,5/16"-18, GB

NUT - 5/16" N.C. hex, lock

4шт.
