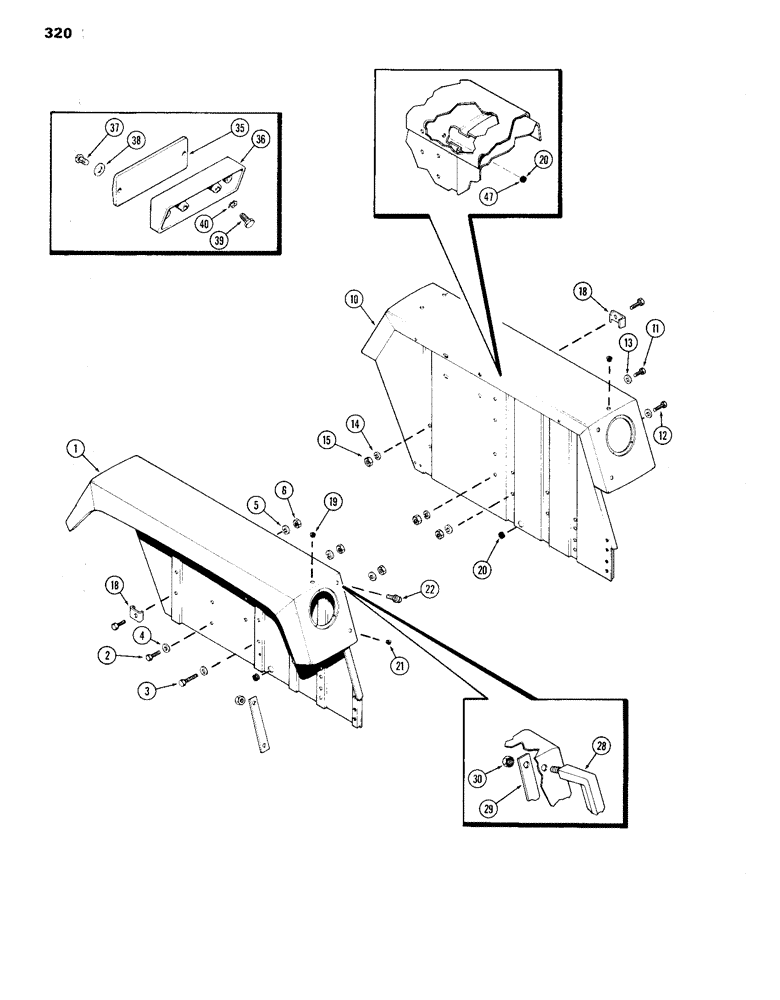

Запчасти Case IH 870 (320) - FENDERS, 12 INCH FENDER (09) - CHASSIS/ATTACHMENTS

1

A64878

FENDER

ASSY. - 12", R.H. (Replaces A62296)

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

R.H. fender Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

3

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

R.H. fender Hex, 3/8"-16 x 1 3/4", G5

5шт.

4

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32", R.H. fender

6шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , RH fender 3/8"

6шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , R.H. fender 3/8"-16, G5

6шт.

10

A64879

FENDER

ASSY. - 12", L.H. (Replaces A62297)

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

L.H. fender Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

L.H. fender Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

LH fender Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

12

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

L.H. fender Hex, 3/8"-16 x 1 3/4", G5

3шт.

13

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32", L.H. fender

6шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , LH fender 3/8"

6шт.

15

9628503

NUT,3/8"-16, G5

LH fender 3/8"-16, G5

4шт.

18

A59318

BRACKET

- fender side sheet mounting, R.H. & L.H.

8шт.

19

353-405

PLUG,Dome, .562" hole, Nylon

- button, 9/16" hole (Black Nylon)

2шт.

20

A59722

GROMMET

- wire harness

2шт.

21

353-403

PLUG,Dome, .437" hole, Nylon

(RH fender handle mtg. hole, lower) Dome, .437" hole, Nylon

1шт.

22

175-467

BOLT,Sl Truss Hd, 3/8" - 16 x 5/8"

- (3/8 x 5/8" N.C. truss hd. slotted)

1шт.

28

A60530

HANDLE

- R.H. & L.H. [used prior to tractor s/n 8693001]

2шт.

29

A59338

PLATE

- handle mounting [used prior to tractor s/n 8693001]

2шт.

30

230-4216

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. hex, lock, handles [used prior to S/N 8693001]

4шт.

35

A62415

REFLECTOR

- red

2шт.

36

A62416

BRACKET

- reflector

2шт.

37

187-1058

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - #10 x 5/8" rd. hd. self-tapping, reflector

4шт.

38

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16", reflector

4шт.

39

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - 1/4 x 1/2" N.C. hex, self-tapping, reflector

4шт.

40

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int./ext., reflector

4шт.
