(082) - FUEL TANK AND LINES, (301B) SPARK IGNITION ENGINE, POLYETHELENE MATERIAL

Запчасти Case IH 870 (082) - FUEL TANK AND LINES, (301B) SPARK IGNITION ENGINE, POLYETHELENE MATERIAL (03) - FUEL SYSTEM

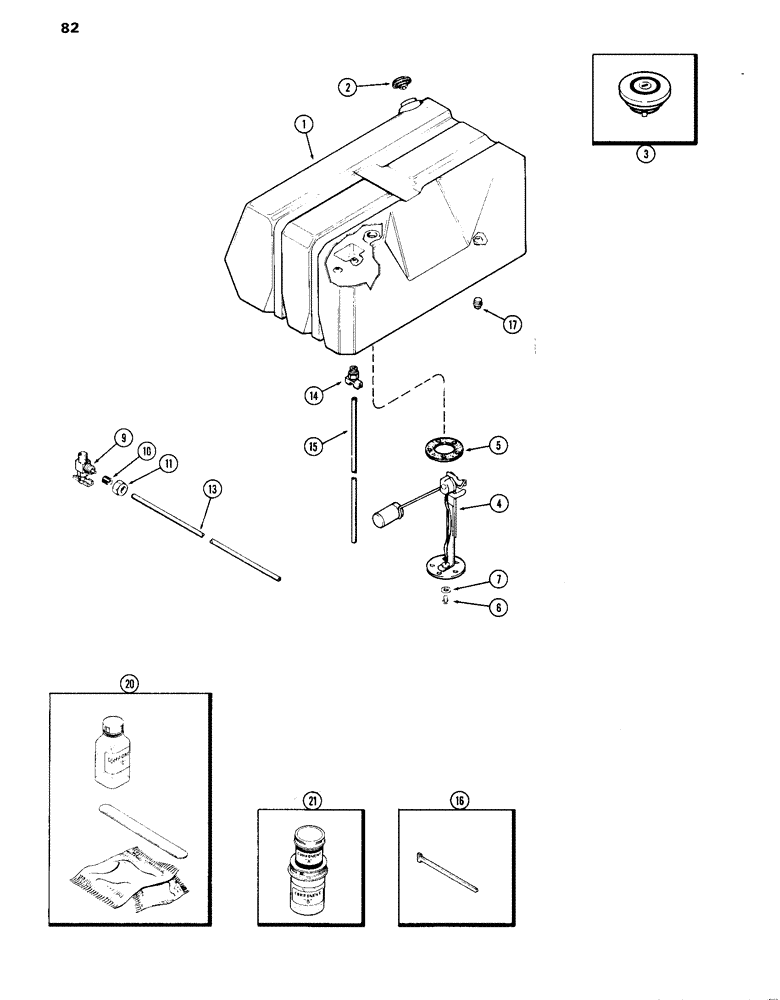

Схема запчастей Case IH 870 - (082) - FUEL TANK AND LINES, (301B) SPARK IGNITION ENGINE, POLYETHELENE MATERIAL (03) - FUEL SYSTEM
15
17
16
5
13
9
3
1
20
14
21
7
4
6
10
2
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A66820

TANK

- fuel

1шт.

2

A32119

CAP

- fuel tank filler (w/o lock)

1шт.

3

A32120

CAP

- fuel tank filler (w/lock)

1шт.

4

A62092

UNIT

- fuel gauge sending

1шт.

5

A11822

GASKET

- sending unit

1шт.

6

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10 x 7/16" N.F. rd. hd. mach.

5шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

9

217-278

FITTING

VALVE - outlet & shut-off (Replaces A62354) (includes ref. 10 & 11)

1шт.

10

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

11

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

13

A62027

TUBE

- tank, Serial Range: outlet-engine

1шт.

14

A23656

COCK, DRAIN

VALVE - drain (w/1/4" P.T. thrd.)

1шт.

15

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Water trap drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tube

2шт.

17

221-12

PLUG,Sq Hd, 1/4"-18

- 1/4" pipe

1шт.

20

A44635

KIT

- repair, polyethylene tank (Also order A44636)

1шт.

21

A44636

KIT

- sealant, tank repair

1шт.
