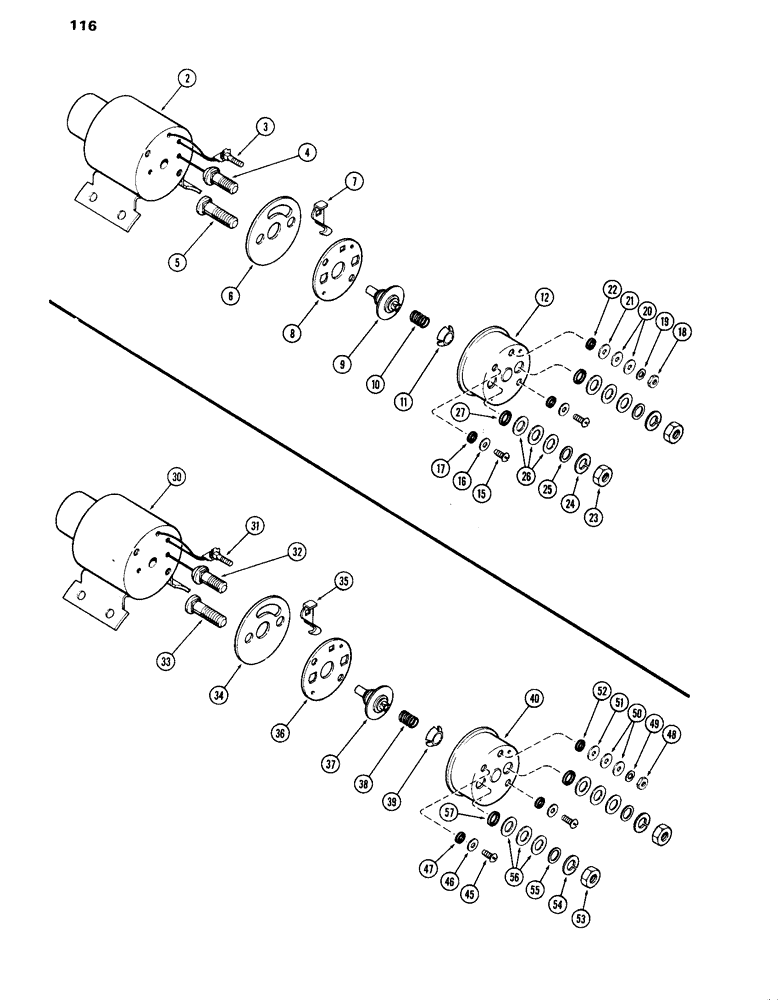

Запчасти Case IH 870 (116) - A43846 SOLENOID, (336B) DIESEL ENGINE, USED WITH A64907 STARTER (04) - ELECTRICAL SYSTEMS

A43846

SOLENOID

ASSY. - (Delco #1115528) (includes ref. 2 - 27)

1шт.

2

NSS

NOT SOLD SEPARAT

CASE & COIL ASSY.

1шт.

3

A42090

TERMINAL CONNECTOR

TERMINAL - solenoid switch

1шт.

4

A42383

TERMINAL CONNECTOR

TERMINAL - solenoid motor

1шт.

5

A42387

SCREW,3/8" - 16 x 1.46"

TERMINAL - solenoid battery

1шт.

6

A42377

GASKET

- solenoid cover

1шт.

7

A42384

CLIP

- solenoid terminal

1шт.

8

A42386

INSULATOR

- solenoid cover

1шт.

9

A42385

CONTACT

- solenoid

1шт.

10

A42059

SPRING

- contact return

1шт.

11

A42391

INSULATOR

- solenoid cover cup

1шт.

12

A42388

COVER

- solenoid

1шт.

15

A42380

SCREW,#10 - 32 x 9/16"

- #10 N.F. Nylock

2шт.

16

A42378

WASHER

- 3/16 x 1/2 x 1/32"

2шт.

17

A42392

WASHER

- 3/16 x 21/64 x 3/32" rubber

2шт.

18

129-37

NUT,#10-32

1шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

20

R16177

WASHER

- 3/16 x 1/2 x 3/64"

2шт.

21

A42390

WASHER

- 3/16 x 1/2 x 1/16"

1шт.

22

A42392

WASHER

- 3/16 x 21/64 x 3/32" rubber

1шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

R15013

WASHER

- 25/64 x 11/16 x 1/16"

2шт.

26

A42379

WASHER

- 25/64 x 3/4 x 1/16"

8шт.

27

A42389

WASHER

- 3/8 x 17/32 x 3/32" rubber

2шт.

A44817

SOLENOID

ASSY. - (Delco #1115518) (Replaces A42326) (includes ref. 30 - 57)

1шт.

30

NSS

NOT SOLD SEPARAT

CASE & COIL ASSY. [A44817 solenoid used w/ A59217 starter]

1шт.

31

A42090

TERMINAL CONNECTOR

TERMINAL - solenoid switch [A44817 used w/ A59217 starter]

1шт.

32

A42383

TERMINAL CONNECTOR

TERMINAL - solenoid motor [A44817 used w/ A59217 starter]

1шт.

33

A42387

SCREW,3/8" - 16 x 1.46"

TERMINAL - solenoid battery [A44817 used w/ A59217 starter]

1шт.

34

A42377

GASKET

- solenoid cover [A44817 used w/ A59217 starter]

1шт.

35

A42384

CLIP

- solenoid terminal [A44817 used w/ A59217 starter]

1шт.

36

A42386

INSULATOR

- solenoid cover [A44817 used w/ A59217 starter]

1шт.

37

A42385

CONTACT

- solenoid [A44817 solenoid used w/ A59217 starter]

1шт.

38

A42059

SPRING

- contact return [A44817 solenoid used w/ A59217 starter]

1шт.

39

A42391

INSULATOR

- solenoid cover cup [A44817 used w/A59217 starter]

1шт.

40

A42388

COVER

- solenoid [A44817 used w/ A59217 starter]

1шт.

45

A42380

SCREW,#10 - 32 x 9/16"

- cover, #10 N.F. Nylock [A44817 solenoid used w/ A59217 starter]

2шт.

46

A42378

WASHER

- 3/16 x 1/2 x 1/32" [A44817 solenoid used w/ A59217 starter]

2шт.

47

A42392

WASHER

- 3/16 x 21/64 x 3/32" rubber [A44817 solenoid used w/ A59217 starter]

2шт.

48

129-37

NUT,#10-32

[A44817 solenoid used w/ A59217 starter] #10-32

1шт.

49

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, [A44817 solenoid used w/ A59217 starter] #10

1шт.

50

R16177

WASHER

- 3/16 x 1/2 x 3/64" [A44817 solenoid used w/ A59217 starter]

2шт.

51

A42390

WASHER

- 3/16 x 1/2 x 1/16" [A44817 solenoid used w/ A59217 starter]

1шт.

52

A42392

WASHER

- 3/16 x 21/64 x 3/32" rubber [A44817 solenoid used w/ A59217 starter]

1шт.

53

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, [A44817 Solenoid used w/ A59217 starter] 3/8"-16, G5

2шт.

54

192-21

LOCK WASHER,3/8"

WASHER, LOCK, [A44817 solenoid used w/ A59217 starter] 3/8"

2шт.

55

R15013

WASHER

- 25/64 x 11/16 x 1/16" [A44817 solenoid used w/ A59217 starter]

2шт.

56

A42379

WASHER

- 25/64 x 3/4 x 1/16" [A44817 solenoid used w/ A59217 starter]

6шт.

57

A42389

WASHER

- 3/8 x 17/32 x 3/32" [A44817 solenoid used w/ A59217 starter]

2шт.
