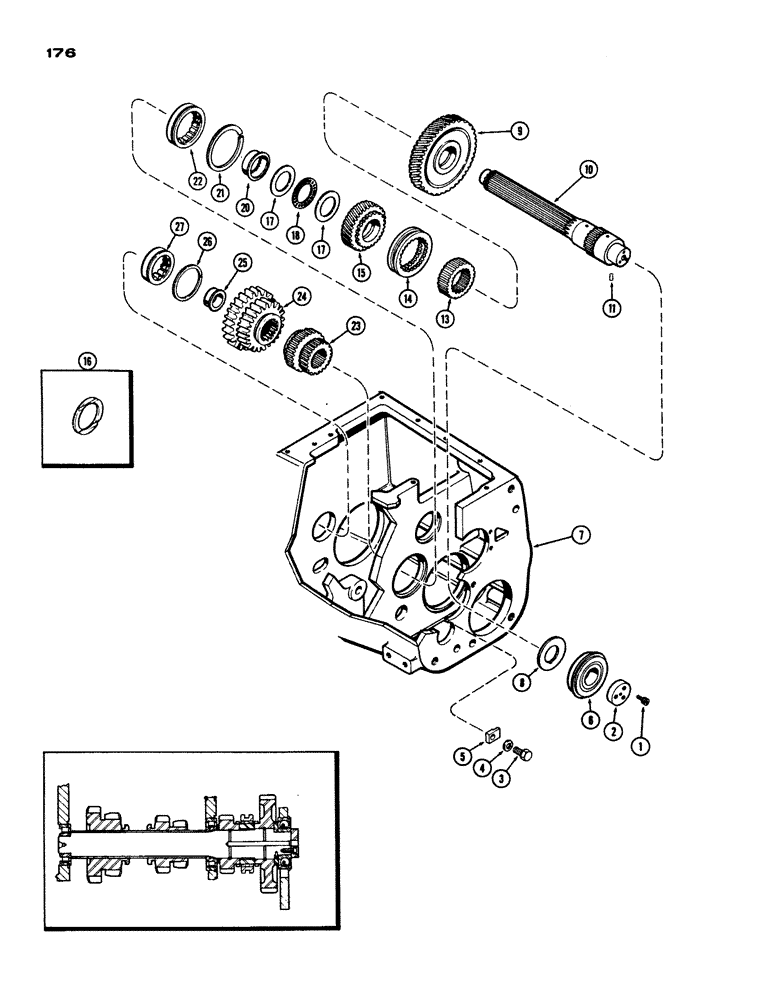

Запчасти Case IH 970 (176) - SLIDING GEAR SHAFT, MECHANICAL SHIFT (06) - POWER TRAIN

1

165-118

HEX SOC SCREW,Prev Torque, 5/16" - 18 x 3/4"

BOLT - 5/16 x 3/4" N.C. hex sckt. hd.

3шт.

2

A32019

PLATE

- lock, sliding gear shaft front bearing

1шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

4

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

5

A32788

CLAMP

- retaining, sliding gear shaft front bearing plate

2шт.

6

A32018

BALL BEARING,44.99mm ID x 100mm OD x 25mm W

BEARING - ball, sliding gear shaft, front

1шт.

7

A58971

HOUSING - transmission

1шт.

8

A60040

WASHER

- thrust, low range gear

1шт.

9

A61314

GEAR

ASSY. - driven range, w/bushing (47 and 20 helical teeth) (Replaces A34347)

1шт.

10

A34905

SHAFT

- sliding gear

1шт.

11

138-215

LOCK PIN,3/16" x 3/8", Slotted

Pin, , thrust washer 3/16" x 3/8", Slotted

1шт.

13

A32024

COLLAR

- range clutch (20 ext. and int. teeth)

1шт.

14

A32025

SLEEVE

- range clutch (27 int. teeth)

1шт.

15

A61317

GEAR

ASSY. - driven, high range, w/bushing (20 and 32 teeth) (Replaces A34348) straight teeth

1шт.

16

A57970

WASHER

- thrust, sliding gear shaft (Order 2-A32784 race and 1-A32785 bearing)

1шт.

17

A32784

WASHER

RACE - sliding gear shaft thrust bearing

2шт.

18

A32785

THRUST BEARING,2.125" ID x 2.875" OD x 0.0781"

BEARING - thrust, sliding gear shaft

1шт.

20

A34772

BEARING, CONE,32T

RACE - center roller bearing (inner)

1шт.

21

A32005

RING

SNAP RING - retaining, center bearing, sliding gear shaft

1шт.

22

A32004

BEARING ASSY,55mm ID x 100mm OD x 21mm W

BEARING - roller, sliding gear shaft, center

1шт.

23

A33564

GEAR

- sliding cluster (1st-2nd and 5th-6th) (15 and 19 teeth)

1шт.

24

A58417

GEAR

- sliding cluster (3rd-4th and 7th-8th) (23 and 26 external and 32 internal teeth)

1шт.

25

A33043

ROLLER BEARING,34.99mm ID x 20.87mm W

RACE - rear roller bearing (inner)

1шт.

26

A33041

RING, SNAP

SNAP RING - near roller bearing

1шт.

27

A33042

BEARING ASSY

BEARING - roller, sliding gear shaft, rear

1шт.
