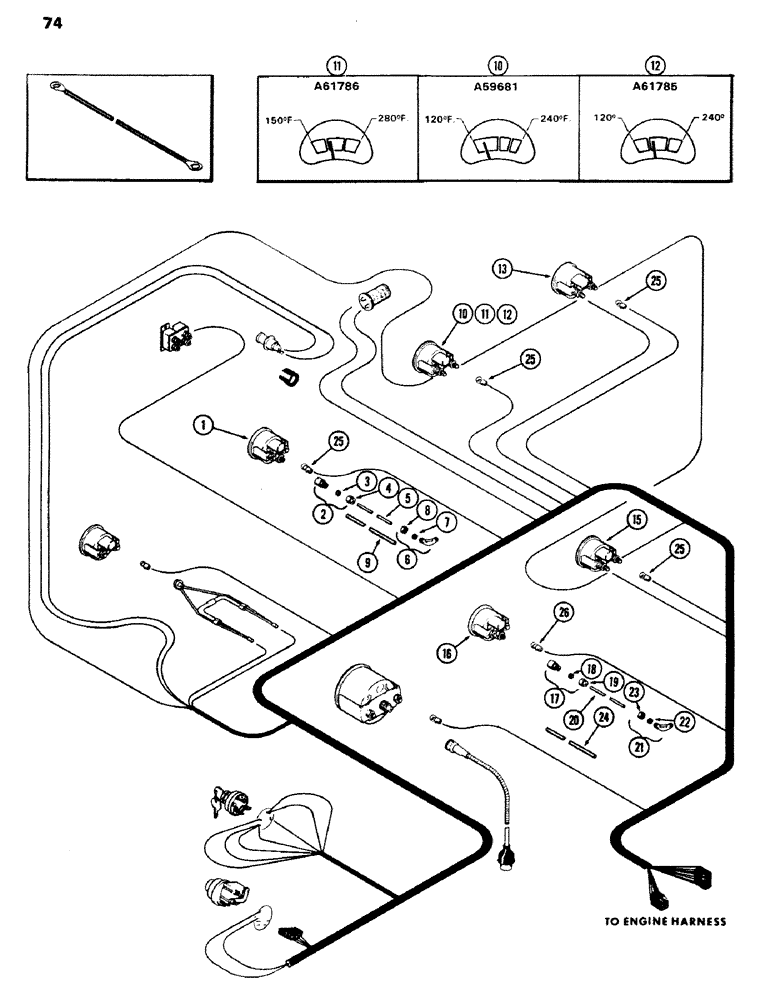

Запчасти Case IH 970 (074) - INSTRUMENTS AND WIRING, (401B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A62006

GAUGE

- engine oil pressure (Replaces A59678)

1шт.

2

222-11

FITTING,3/8"-24 Inv Fl x 1/8" NPT Fem

CONNECTOR - 3/16" tube, 1/8" P.T. (used w/A66386), Includes: Ref. 3 and 4

1шт.

3

222-101

SLEEVE,3/16" Tube

- for 3/16" Tube

1шт.

4

222-111

TUBE NUT,7/16" - 24

NUT - for 3/16" tube

1шт.

2

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - 1/8" tube, 1/8" P.T. (used w/A59679), Includes: Ref. 3 and 4

1шт.

3

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

4

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

5

A66386

TUBE

- eng. oil press. (3/16" O.D.) (1st used trac. ser. no. 3731489

1шт.

5

A59679

TUBE

- engine oil pressure (1/8" O.D.) to trac. (Order 1-A66386, 1-222-11 and 1-222-41), Serial Range: -8731489

1шт.

6

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

- 90 deg., 3/16" tube, 1/8" P.T. (used w/A66386), Includes: Ref. 7 and 8

1шт.

7

222-101

SLEEVE,3/16" Tube

- for 3/16" Tube

1шт.

8

222-111

TUBE NUT,7/16" - 24

NUT - for 3/16" tube

1шт.

6

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 90 deg., 1/8" tube P.T. (used w/A59679), Includes: Ref. 7 and 8

1шт.

7

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

8

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

9

A59680

LOOM

- engine oil pressure tube

1шт.

10

A59681

GAUGE

- eng. temp. (used w/air conditioner) (120 deg. to 240 deg. (used w/F13156 sending unit) (See Figure 15)

1шт.

11

A61786

ELECTRICAL GAUGE

GAUGE - eng. temp. (used w/air conditioner) (150 deg. to 280 deg. (used w/A61787 sending unit) (See Figure 15)

1шт.

12

A61785

SPARE PART

GAUGE - eng. temp. (used w/out air conditioner) (120 deg. to 240 deg. (used w/A61787 sending unit) (See Figure 15) (Order A61786) the above temperature gauge-sender combinations are not interchangeable

1шт.

13

A59682

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

15

A64491

ELECTRICAL GAUGE

GAUGE - transmission temperature (Replaces A59683)

1шт.

16

A59684

ELECTRICAL GAUGE

GAUGE - transmission pressure, used on power shift models with and without PTO and on mechanical shift models with PTO

1шт.

17

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - 1/8" tube, 1/8" P.T., Includes: Ref. 18 and 19

1шт.

18

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

19

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

20

A59685

TUBE

- trans. pressure gauge

1шт.

21

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 90 deg., 1/8" tube x 1/8" P.T., Includes: Ref. 22 and 23

1шт.

22

222-102

SLEEVE,1/4" Tube

- for 1/8" tube

1шт.

23

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

24

A59686

LOOM

- trans. pressure gauge tube

1шт.

25

A14553

BULB

- gauges (Replaces T29331)

4шт.

26

A14553

BULB

- trans. pressure gauge, used on power shift models with and without PTO and on mechanical shift models with PTO (Replaces T29381)

1шт.

205-68

HOLE PLUG BUTTON,2 3/32"

PLUG - button (used w/mechanical shift, w/o P.T.O. ), 2-9/16"

1шт.
