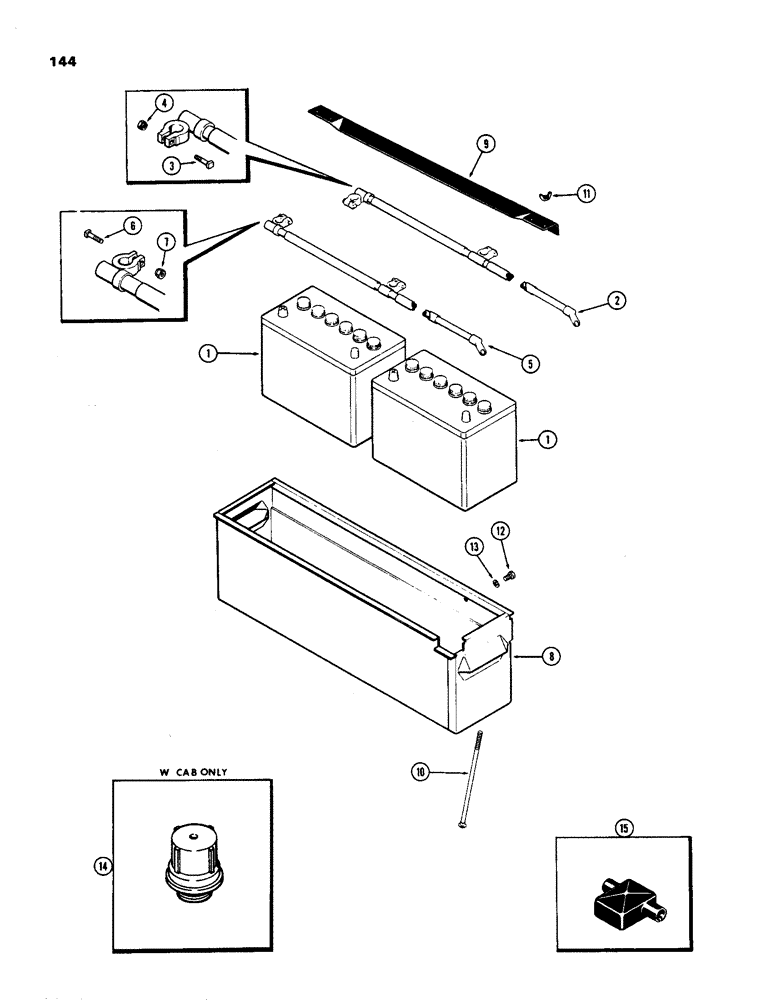

Запчасти Case IH 970 (144) - BATTERY - CABLES - BATTERY BOX, (401B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

- 12 volt

2шт.

The battery on units with cab is equipped with non-spill caps. When replacing this battery with A38411, remove caps and either use non-spill caps from old battery or order 6-A60553 caps.

1шт.

2

A59728

CABLE

ASSEMBLY - battery, negative (Ground), Includes: Ref. 3 & 4

1шт.

3

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- 5/16 x 1-3/8" NC, square head

2шт.

4

129-516

NUT

- 5/16" NC hex, with shoulder

2шт.

5

A65817

CABLE

ASSEMBLY - battery, positive (Replaces A62141), Includes: Ref. 5 & 6

1шт.

6

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- 5/16 x 1-3/8" NC, square head

2шт.

7

129-516

NUT

- 5/16" NC hex, with shoulder

2шт.

8

A62137

BOX

- battery

1шт.

9

A59173

CLAMP

- battery hold down

1шт.

10

11-5160

BOLT

- battery hold down

2шт.

11

G49020

NUT

- 5/16" NC, wing

2шт.

12

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

13

92-5

LOCK WASHER,5/16"

1шт.

14

A60553

CAP

- battery, non spill vent

12шт.

15

A139372

CAP

- battery (Used on 2 middle terminals)

1шт.
