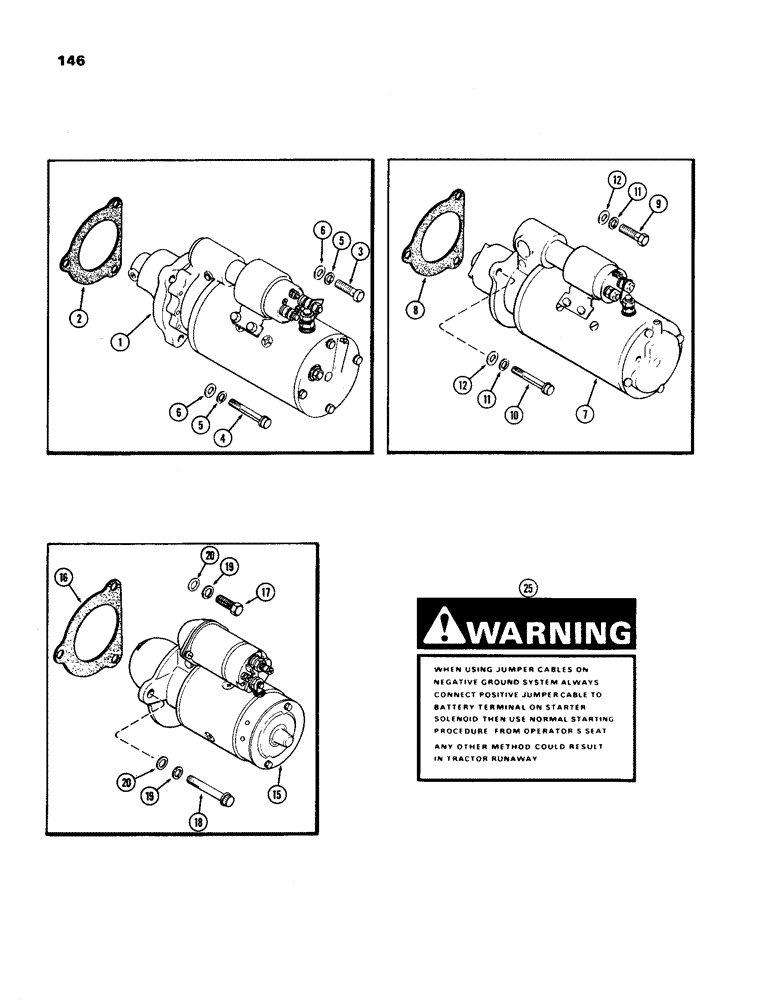

Запчасти Case IH 970 (146) - STARTER MOUNTING, (401B) DIESEL AND (377B) SPARK IGNITION ENGINES (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTING MOTOR - Diesel (1st used trac. ser. no. 8696753), See Figures 164-178

1шт.

2

A27933

GASKET

- starting motor (only power shift)

1шт.

3

113-2437

PREV TORQUE BOLT,Locking, 1/2"-13 x 1 3/4", G5

BOLT - 1/2 x 1-3/4" NC hex., Poly-lok

2шт.

4

166-94

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - 1/2 x 3-1/4" NC Ferry hd. cap

1шт.

5

92-8

LOCK WASHER,1/2"

3шт.

6

L30674

WASHER

- 1/2 x 1 x 1/8"

3шт.

7

REF

INSTRUCTION

STARTING MOTOR - Diesel (Used prior to trac. ser. no. 8696753) (Order 1-A64907 starter, 2-113-2437 bolts, 1-166-94 bolt and 3-L30674 washers), See Figures 164-178

1шт.

8

A27933

GASKET

- starting motor (only with Power shift)

1шт.

9

113-483

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" NC hex., Nylock

2шт.

10

166-94

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - 1/2 x 3-1/4" NC ferry hd. cap screw

1шт.

11

92-8

LOCK WASHER,1/2"

3шт.

12

L30674

WASHER

- 1/2 x 1 x 1/8"

3шт.

15

REF

INSTRUCTION

STARTING MOTOR - Spark, See Figure 181

1шт.

16

A27933

GASKET

- starting motor (only with Power shift)

1шт.

17

113-483

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" NC hex., Nylok

2шт.

18

166-94

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - 1/2 x 3-1/4" NC ferry hd. cap screw

1шт.

19

92-8

LOCK WASHER,1/2"

3шт.

20

L30674

WASHER

- 1/2 x 1 x 1/8"

3шт.

25

321-2788

DECAL

- Warning

1шт.
