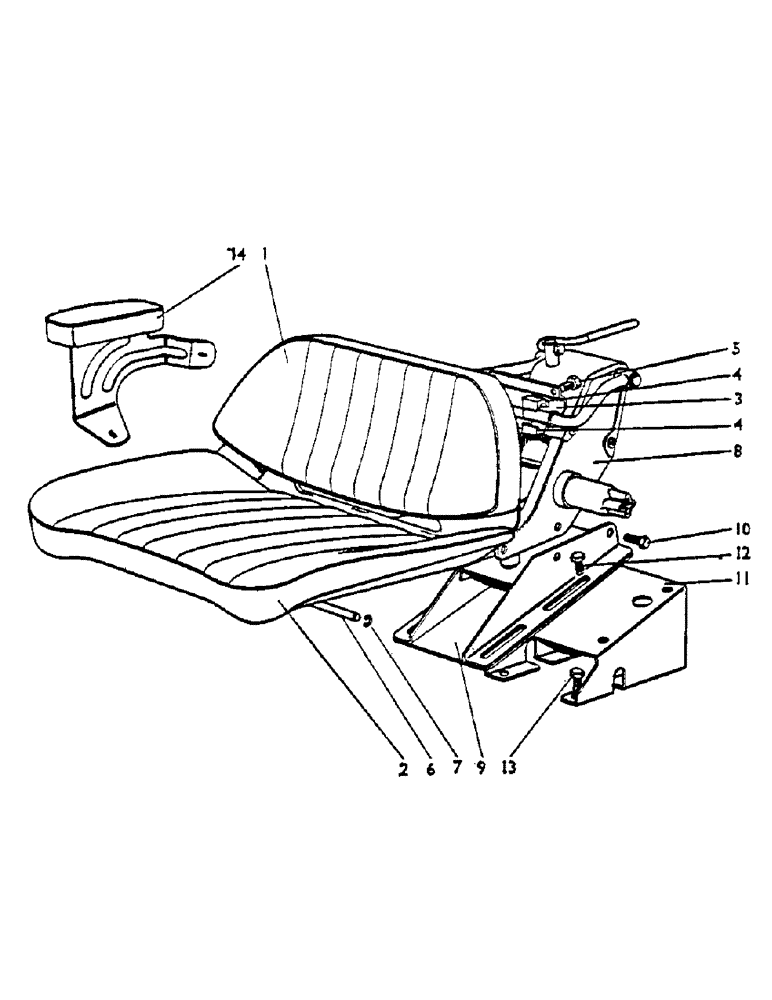

Запчасти Case IH 1200 (105) - SEAT AND SUSPENSION (12) - CHASSIS

K919439

NO LONGER SERVICED

seat and suspension assembly

1шт.

K920234

seat assembly 919439

1шт.

1

K962196

backrest and cushion 920234 919439

1шт.

2

K962197

seat and cushion 920234 919439

1шт.

3

K920345

cap 920234 919439

1шт.

4

K920346

nylon bush (halves) 920234 919439

4шт.

5

K602846

SCREW,5/16" - 18 x 5/8", Gr S

setscrew, 5/16 UNC x 5/8 in. 920234 919439

4шт.

K19481

SPRING WASHER

spring washer, 5/16 in. 920234 919439

4шт.

6

K920344

SHAFT

920234 919439

1шт.

7

K621585

RING, SNAP

'E' clip, 5/16 in. 920234 919439

2шт.

8

K920233

SUSPENSION BLOCK

suspension assembly 919439

1шт.

K962199

HITCH PIN

adjusting screw and nut 920233 919439

1шт.

K962214

ball thrust bearing--adjusting, 919439 screw 920233

1шт.

K962201

handle--adjusting screw 920233 919439

1шт.

K962213

torsion bar 920233 919439

3шт.

K962200

DAMPER

920233 919439

1шт.

9

K919602

bracket 920233 919439

1шт.

10

K602982

SCREW,3/8" - 16 x 3/4", Gr S

setscrew, 3/8 UNC x 3/4 in. 920233 919439

4шт.

K19482

SPRING WASHER

spring washer, 3/8 in. 920233 919439

4шт.

280136

NUT,3/8"-16, G8

920233 919439 3/8"-16, G8

4шт.

11

K919599

SEAT SUPPORT

support bracket

1шт.

12

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Support bracket to seat bracket Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

K19472

WASHER

3/8 in. support bracket to seat bracket

4шт.

K19482

SPRING WASHER

spring washer, 3/8 in. support bracket to seat bracket

4шт.

13

K602982

SCREW,3/8" - 16 x 3/4", Gr S

setscrew, 3/8 UNC x 3/4 in. bracket to axle case

4шт.

K19482

SPRING WASHER

spring washer, 3/8 in. bracket to axle case

4шт.

K919681

arm rest, left-hand

1шт.

14

K919682

arm rest, right-hand

1шт.

K962120

cushion--arm rest

2шт.

K603926

SCREW

1/4 UNC x 3/4 in.

4шт.

K626341

SPRING WASHER

spring washer, 1/4 in.

4шт.

K920296

washer, 1/4 in.

4шт.
