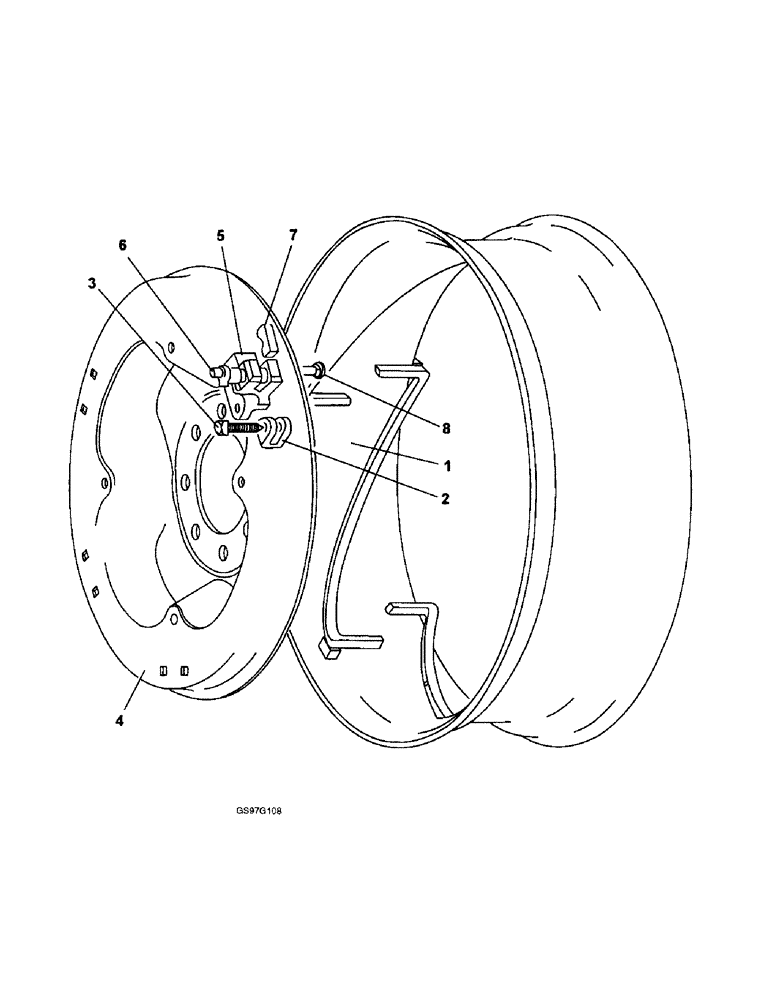

Запчасти Case IH 1210 (9-024) - REAR WHEELS, POWER ADJUSTED, 1210, 1212, 1210Q AND 1212Q TRACTORS (09) - CHASSIS/ATTACHMENTS

K946548

RIM

ASSEMBLY rear and center, W14 x 30, fits 16.9 x 14-30 tires, no longer available as an assembly, order components, Includes: Ref. 1 - 8, Washer, and Nut's

2шт.

1

K302516

RIM

rear, W14 x 30 (Replaces rim K921201)

1шт.

2

K917337

STOP

BRACKET, wheel rim

2шт.

3

K200142

SCREW,Hex, 9/16" x 2 1/8"

set, stop bracket (Replaces screw K917338)

2шт.

4

K946545

WHEEL DISC

CENTER rear wheel

1шт.

5

K917340

SUPPORT

BODY rear wheel

5шт.

6

K200128

PIN

eccentric (Replaces pin K917339)

5шт.

K917341

RING

snap, eccentric pin

5шт.

7

K917342

BLOCK

rear wheel

5шт.

8

K304694

CARRIAGE BOLT

carriage, M16

10шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

10шт.

K607035

NUT

hex, 5/8 inch NC

10шт.

829-1416

NUT,M16, Cl 10

8шт.
