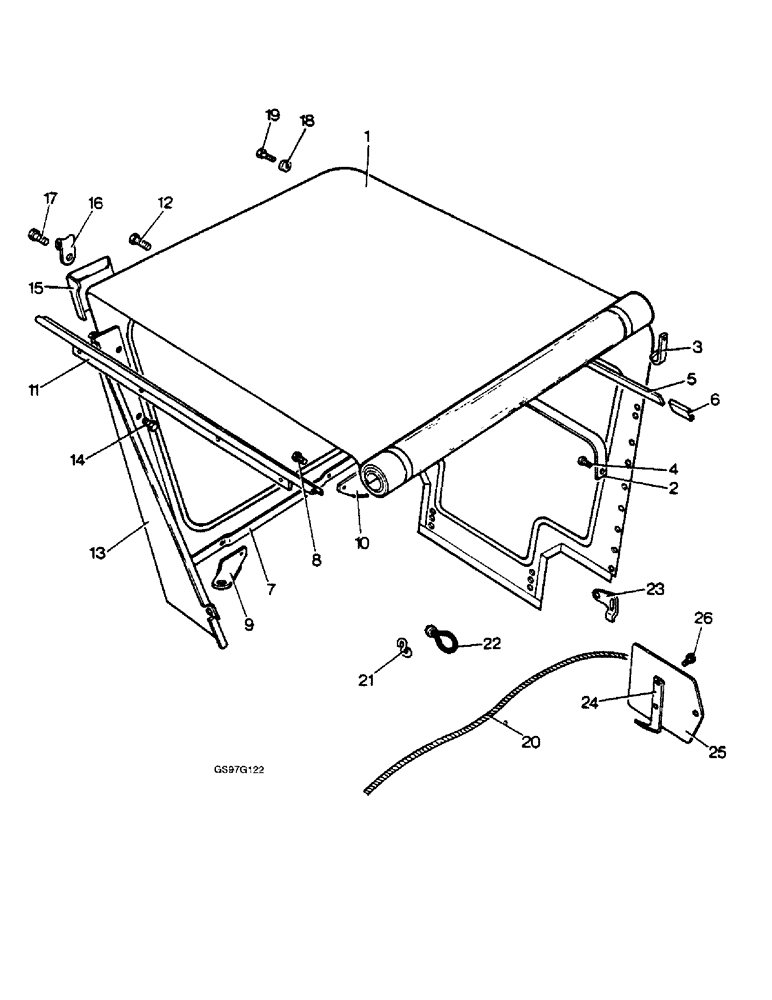

Запчасти Case IH 1210 (9-050) - ROOF AND SIDE PANELS FOR DB WEATHERFRAME, SOFT CLAD, 1210 AND 1212 TRACTORS FOR EUROPE ONLY (09) - CHASSIS/ATTACHMENTS

1

K773368

SPARE PART

CLADDING roof, soft, sides and rear, no longer available

1шт.

K603926

SCREW

hex, soft cladding to frame, 1/4 NC x 3/4 inch

2шт.

K773634

WASHER

thick, soft cladding to frame, 3/32 inch, no longer available

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Soft cladding to frame (Replaces washer K626341) 1/4"

2шт.

2

K773388

STAY

top, no longer available

4шт.

3

K773276

HOOK

coat, no longer available

2шт.

4

K603926

SCREW

hex, stays to frame, 1/4 NC x 3/4 inch

8шт.

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, , Stays to frame (Replaces washer K626552) Ext Tooth, 1/4"

8шт.

5

K773540

STIFFENER rear, no longer available

2шт.

6

K692027

TUBE protection, no longer available

12шт.

7

K773749

LACING, BELT

STAY side

2шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Side stays to brackets (Replaces screw K602735) Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

K626662

WASHER

flat, side stays to brackets, 1/4 inch

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Side stays to brackets (Replaces washer K626341) 1/4"

4шт.

425-104

NUT,1/4"-20, Cl 5

Side stays to brackets (Replaces nut K607043) 1/4"-20, G5

4шт.

9

K773752

BRACKET

front, right-hand stay, no longer available

1шт.

10

K773750

BRACKET

rear, right-hand stay, no longer available

1шт.

K773753

BRACKET

front, left-hand stay, no longer available

1шт.

K773751

BRACKET

rear, left-hand stay, no longer available

1шт.

11

K773480

HOLDER

cladding, no longer available

1шт.

K773009

BUSHING

SPACER rubber, holder and windscreen to weatherframe, no longer available

1шт.

12

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Holder and windscreen to weatherframe (Replaces screw K603143) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

K691875

WASHER

special, holder and windscreen to weatherframe, 1/2 inch, no longer available

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Holder and windscreen to weatherframe (Replaces washer K626345) 1/2"

4шт.

K691874

WASHER

rubber, holder and windscreen to weatherframe, 1/2 inch, no longer available

4шт.

13

K774040

SPARE PART

CORNER front, right-hand, no longer available

1шт.

K774039

SPARE PART

CORNER front, left-hand, no longer available

1шт.

14

K691892

SCREW

hex, corners to frame, 1/4 NC x 1 inch, no longer available

8шт.

K626552

WASHER

external tooth lock, corners to frame, 1/4 inch

8шт.

K626662

WASHER

flat, corners to frame, 1/4 inch (Replaces washer K19470)

8шт.

K773632

WASHER

nylon, corners to frame, 1/4 x 5/16 inch thick, no longer available

2шт.

K773633

WASHER

nylon, corners to frame, 1/4 x 7/32 inch thick, no longer available

2шт.

K774662

WASHER

nylon, corners to frame, 1/4 x 3/32 inch thick, no longer available

2шт.

15

K773541

BRACKET

PIECE corner, right-hand, no longer available

1шт.

K773542

BRACKET

PIECE corner, left-hand, no longer available

1шт.

16

K772319

BRACKET

HOOK lifting

4шт.

17

K603140

SCREW

set, hooks to frame, 1/2 NC x 1-1/8 inch

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Hooks to frame (Replaces washer K626345) 1/2"

4шт.

K691835

WASHER

flat, hooks to frame, 1/2 inch

8шт.

18

K773635

SPOOL

BOBBIN hooks to frame, no longer available

8шт.

19

K692102

SCREW

hex, bobbins to frame, 1/4 NC x 1-1/2 inch, no longer available

6шт.

470-12520

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

machine, pan head slotted, 1/4 NC x 1-1/4 inch (Replaces screw K603931)

2шт.

K626662

WASHER

flat, 1/4 inch (Replaces washer K19470)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

8шт.

425-104

NUT,1/4"-20, Cl 5

(Replaces nut K607043) 1/4"-20, G5

2шт.

20

K773545

ROPE

front, no longer available

1шт.

K773546

ROPE

rear, no longer available

2шт.

21

K773636

ROPE

HOOK, no longer available

2шт.

22

K774036

ATTACHMENT

HOOP rubber, no longer available

2шт.

K773202

SKIRT

HOOK curtain, left-hand, no longer available

1шт.

23

K772960

SKIRT

HOOK curtain, right-hand, no longer available

1шт.

24

K773596

PLATE

BRACKET rear number plate, no longer available

1шт.

25

K913984

PLATE

rear number, no longer available

1шт.

26

K603926

SCREW

plate to bracket, 1/4 NC x 3/4 inch

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Plate to bracket (Replaces washer K626341) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

plate to bracket (Replaces nut K607043) 1/4"-20, G5

2шт.
