(55) - 906992 STABILISER BARS, U382, 950 MODELS

Запчасти Case IH 950 (55) - 906992 STABILISER BARS, U382, 950 MODELS (07) - HYDRAULIC SYSTEM

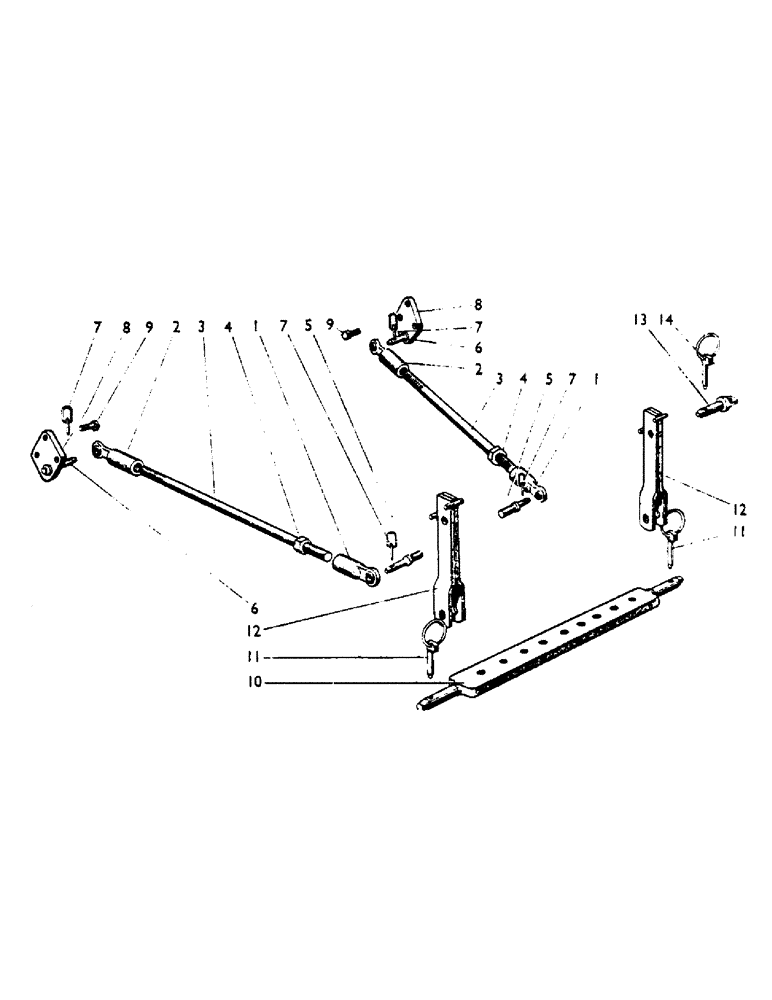

Схема запчастей Case IH 950 - (55) - 906992 STABILISER BARS, U382, 950 MODELS (07) - HYDRAULIC SYSTEM
7
8
5
9
3
10
11
12
7
8
4
12
5
13
6
14
1
4
7
7
2
1
9
11
6
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

K907039

SPARE PART

Stabiliser Assembly--Lower Link

2шт.

1

K901821

BALL

Housing--Rear 907039

2шт.

2

K901818

PIVOT

Ball Housing--Front 907039

2шт.

3

K901815

SCREW,21-1/4mm

Bar 907039

2шт.

4

K11569

NUT

Lock, 1 in. BSF 907039

2шт.

5

K907008

PIN

-Lower Link 907039

2шт.

6

K907008

PIN

-Support Plate 907039

2шт.

K607007

NUT

3/4 UNC 907039

4шт.

K19486

WASHER, LOCK

Spring , 3/4 in 907039

4шт.

7

K900139

PIN

Linch and Ring 907039

4шт.

8

K901824

SUPPORT

Plate 907039

2шт.

9

K603107

BOLT,1/2" x 1 3/8"

Set 1/2 UNC x 1 3/8 in. Support plate to spur reduction

6шт.

K19484

LOCK WASHER

Spring Washer, 1/2 in Support plate to spur reduction

6шт.
