(44) - FUEL TANK, PIPES AND FITTINGS

Запчасти Case IH 990A (44) - FUEL TANK, PIPES AND FITTINGS (01) - ENGINE

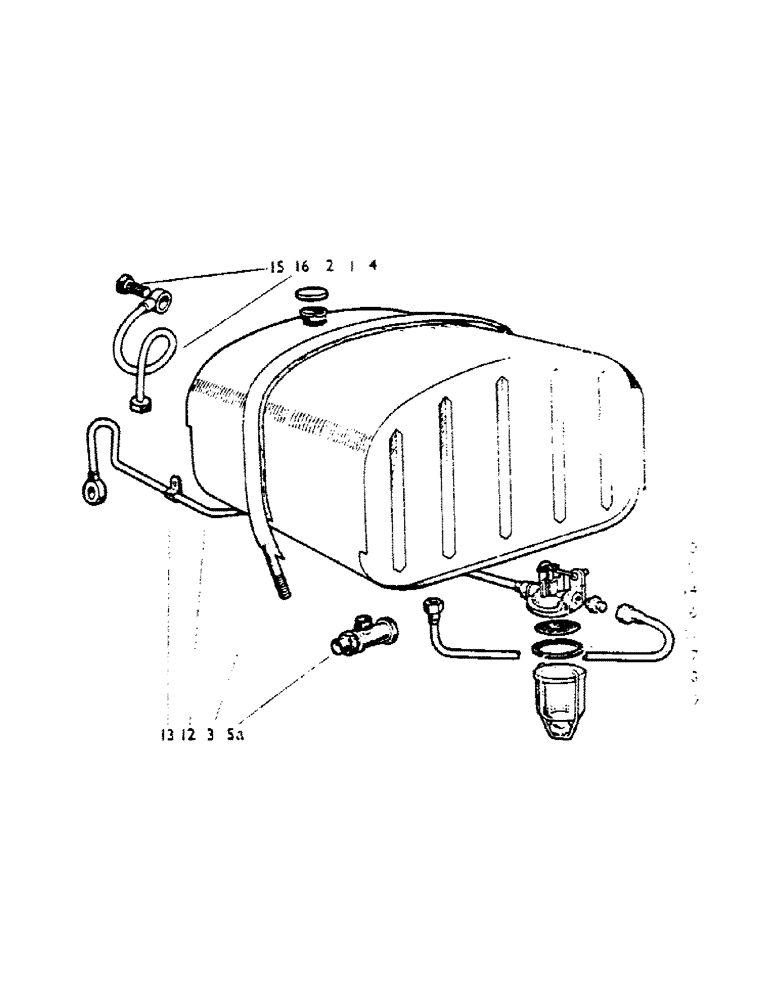

Схема запчастей Case IH 990A - (44) - FUEL TANK, PIPES AND FITTINGS (01) - ENGINE
4
13
15
16
5a
3
12
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

K903925

NO LONGER SERVICED

Fuel Tank

1шт.

2

K901983

CAP

Filler Cap

1шт.

3

K906004

Strap--Tank Fixing

1шт.

4

K17721

PAD

--Tank Strap

1шт.

280136

NUT,3/8"-16, G8

2шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in.

2шт.

5

K67319

BOWL

Fuel Tap and Bowl Assembly

1шт.

To Tractor 461119

1шт.

6

K89638

STRAINER ELEMENT

Filter Gauze 67319

1шт.

To Tractor 461119

1шт.

7

K34065

SEAL

Gasket 67319

1шт.

To Tractor 461119

1шт.

8

K34064

SIGHTGLASS

Filter Bowl 67319

1шт.

To Tractor 461119

1шт.

9

K89639

GRATE

Stirrup and Screw 67319

1шт.

To Tractor 461119

1шт.

K900296

Valve 67319

1шт.

To Tractor 461119

1шт.

K900297

O-RING

Sealing Ring (900296) 67319

1шт.

To Tractor 461119

1шт.

K900300

Screw--Valve Retaining 67319

1шт.

To Tractor 461119

1шт.

5a

K909938

FAUCET

Fuel Tap Assembly

1шт.

From Tractor 461120

1шт.

K961668

WASHER

Sealing Cork--Fuel Tap 909938

1шт.

From Tractor 461120

1шт.

K961669

NUT

Locknut, Special 909938

1шт.

From Tractor 461120

1шт.

K961670

SET

screw 909938

1шт.

From Tractor 461120

1шт.

K961671

FAUCET

Knob, Cork and Spindle 909938

1шт.

From Tractor 461120

1шт.

10

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

Pan Head, 1/4 UNC x 5/8 in. (Replaces 603924)

2шт.

To Tractor 461119

1шт.

K607000

NUT

1/4 UNC

2шт.

To Tractor 461119

1шт.

K19480

SPRING WASHER

Spring Washer, 1/4 in.

2шт.

To Tractor 461119

1шт.

11

K901408

, Serial Range: Pipe--Tank-Tap

1шт.

To Tractor 461119

1шт.

11

K915204

PIPE

--Tank to Tap (Supersedes 909940)

1шт.

From Tractor 461120

1шт.

12

K89488

PIPE

--Tap to Feed Pump

1шт.

To Tractor 461119

1шт.

12

K909942

PIPE

--Tap to Feed Pump

1шт.

From Tractor 461120

1шт.

K12723

Banjo Bolt

1шт.

To Tractor 461119

1шт.

K12716

Washer

1шт.

To Tractor 461119

1шт.

K12843

SPARE PART

Washer

1шт.

To Tractor 461119

1шт.

13

K16368

Pipe Clip

1шт.

14

K12720

ADAPTER

Adaptor

2шт.

To Tractor 461119

1шт.

15

K86417

NIPPLE, LUBE

Banjo Bolt

1шт.

K36374

WASHER

2шт.

16

K908219

PIPE

--Leak, Serial Range: Off-Tank

1шт.
