(N-08) - PARTS ACCESSORIES AND ATTACHMENTS, WINDSHIELD WIPER MOTOR

Запчасти Case IH 1206 (N-08) - PARTS ACCESSORIES AND ATTACHMENTS, WINDSHIELD WIPER MOTOR Accessories & Attachments

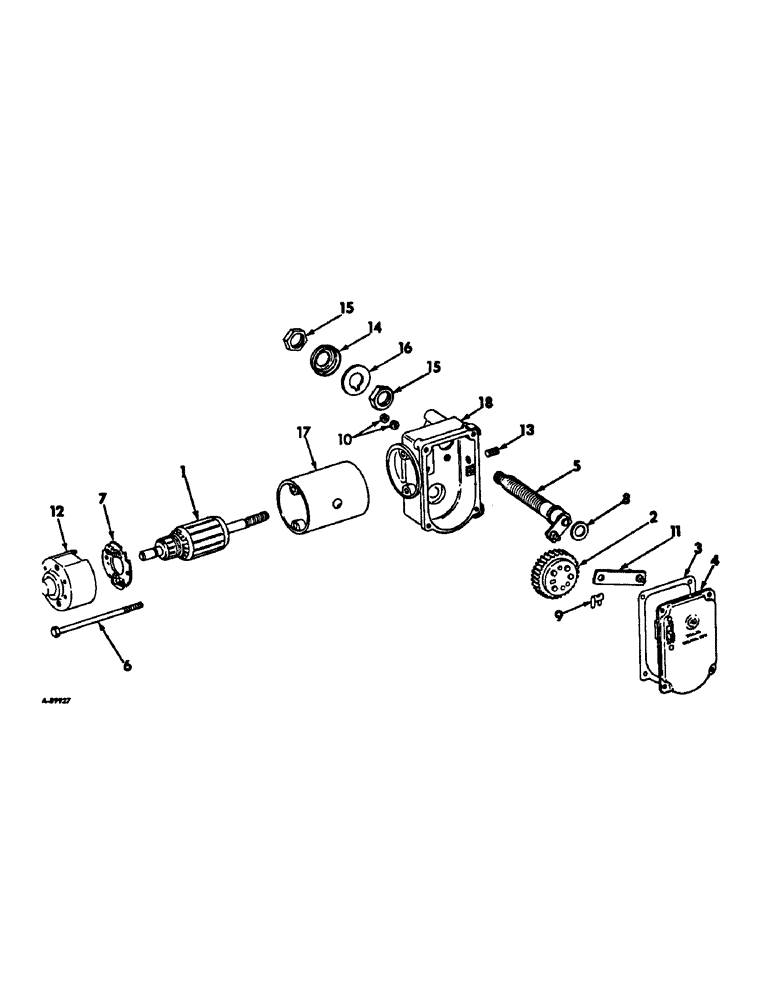

Схема запчастей Case IH 1206 - (N-08) - PARTS ACCESSORIES AND ATTACHMENTS, WINDSHIELD WIPER MOTOR Accessories & Attachments
6
13
8
5
15
2
9
7
11
3
4
18
1
17
15
10
12
14
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

391195R91

WIPER MOTOR

MOTOR ASSY, windshield wiper

1шт.

299455C91

ARMATURE ASSY

1шт.

299450C91

GEAR

AND DRIVE PLATE ASSY

1шт.

299447C1

GASKET

cover

1шт.

399482R1

COVER

wiper

1шт.

399485R1

SHAFT

ASSY, pivot

1шт.

399486R1

SCREW

1шт.

299456C91

BRUSH PLATE ASSY

1шт.

219699R1

WASHER

bowed

1шт.

399484R1

CLIP

link spring

1шт.

399488R1

NUT, terminal screw

2шт.

399483R1

LINK

connecting

1шт.

399487R1

CAP ASSY, commutator end

1шт.

399489R1

SCREW,Hdls, 1/4" - 28 x 3/4"

set-armature end play

1шт.

399490R1

SPACER

outer

1шт.

299460C1

NUT

mounting stud

2шт.

16

299459C1

GASKET

1шт.

17

NOT SERVICED SEPARATELY, order motor assy 391195R91

1шт.

18

NOT SERVICED SEPARATELY, order motor assy 391195R91

1шт.
