(N-12) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB HEATER

Запчасти Case IH 1206 (N-12) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB HEATER Accessories & Attachments

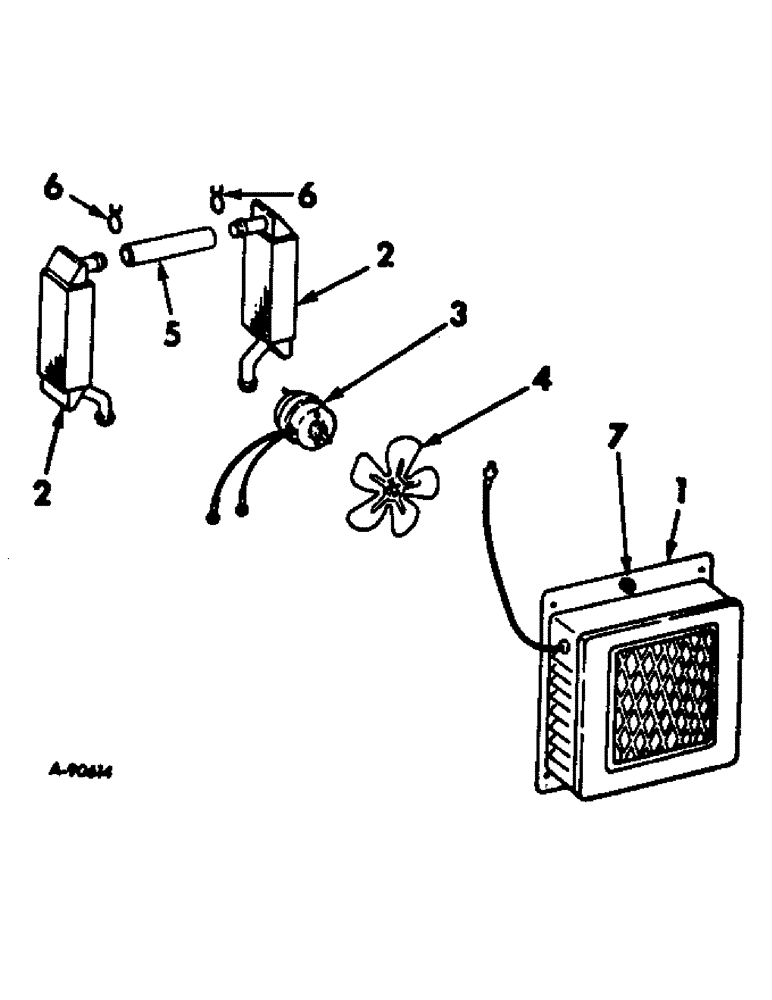

Схема запчастей Case IH 1206 - (N-12) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB HEATER Accessories & Attachments
6
5
4
1
3
6
7
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

391172R91

HEATER ASSY

1шт.

1

CASE ASSY, not serviced separately, order 391172R91

1шт.

2

P400405R1

CORE, heater

2шт.

3

400406R1

MOTOR

heater fan

1шт.

4

400407R1

FAN

heater

1шт.

5

HOSE, core junction heater, use 7 in. of 3/4 ID heater hose from a 50 ft. roll marked, 996720R2

1шт.

6

626239R1

HOSE CLAMP,#17, 1 1/16", Spring

CLAMP, core heater hose

2шт.

7

400408R1

SWITCH, heater, 3 speed

1шт.
