(N-17[1]) - PARTS ACCESSORIES AND ATTACHMENTS, SHEAVE CLUTCH

Запчасти Case IH 1206 (N-17[1]) - PARTS ACCESSORIES AND ATTACHMENTS, SHEAVE CLUTCH Accessories & Attachments

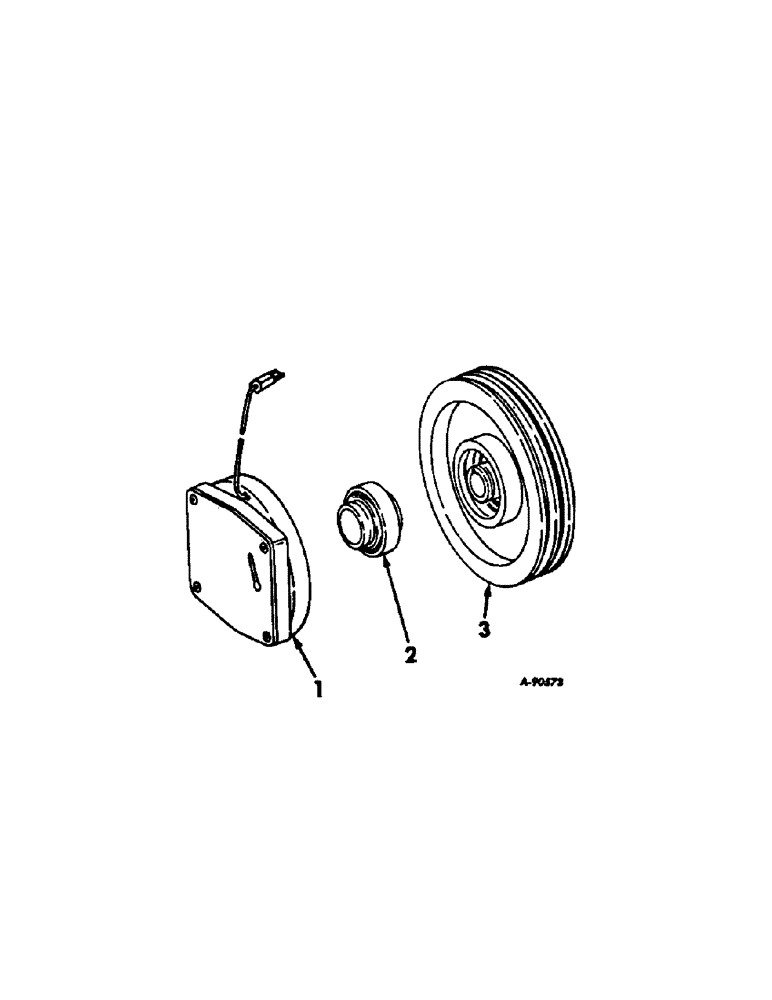

Схема запчастей Case IH 1206 - (N-17[1]) - PARTS ACCESSORIES AND ATTACHMENTS, SHEAVE CLUTCH Accessories & Attachments
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

400556R1

COIL ASSY, clutch

1шт.

2

400553R91

BEARING ASSY, roller

1шт.

3

400557R1

PULLEY ASSY, clutch

1шт.

572838R1

WASHER, special

1шт.

400555R1

SCREW, 1/4-20 x 3/8 CZP hex. washer hd

4шт.

20883R1

SCREW, 5/16-24 x 1-1/2 C-Z hex-hd

1шт.

572830R1

NO LONGER SERVICED

SCREW, 5/16-24 x 1-1/8 hex-hd

1шт.
