(K-04[1]) - DRAWBARS AND HITCHES, HAMMER STRAP, TRACTORS WITH THREE POINT HITCH AND TELESCOPING DRAWBAR

Запчасти Case IH 1206 (K-04[1]) - DRAWBARS AND HITCHES, HAMMER STRAP, TRACTORS WITH THREE POINT HITCH AND TELESCOPING DRAWBAR Drawbars & Hitches

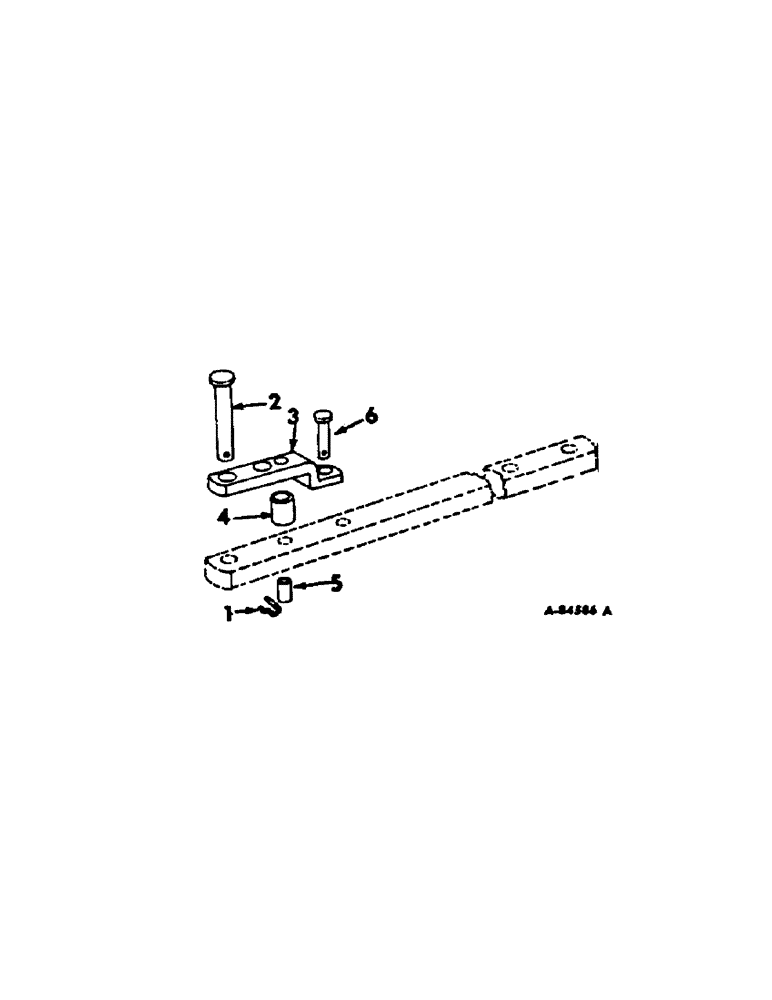

Схема запчастей Case IH 1206 - (K-04[1]) - DRAWBARS AND HITCHES, HAMMER STRAP, TRACTORS WITH THREE POINT HITCH AND TELESCOPING DRAWBAR Drawbars & Hitches
2
5
3
6
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

520175R11

AXLE PIN

PIN ASSY, quick attachable cot.

2шт.

2

383140R1

PIN

swinging drawbar clevis

1шт.

3

389425R1

STRAP

swinging drawbar

1шт.

18757R1

BOLT, 1-8 x 5-3/4 hex-hd

1шт.

220083

NUT,1"-8, G5

1-8 hex.

1шт.

4

389426R1

SPACER

drawbar strap

1шт.

5

527427R1

SPACER, hammer strap

1шт.

575810R1

WASHER

21/OI x 1-1/2 x .120

2шт.

6

389523R1

PIN

drawbar

1шт.
