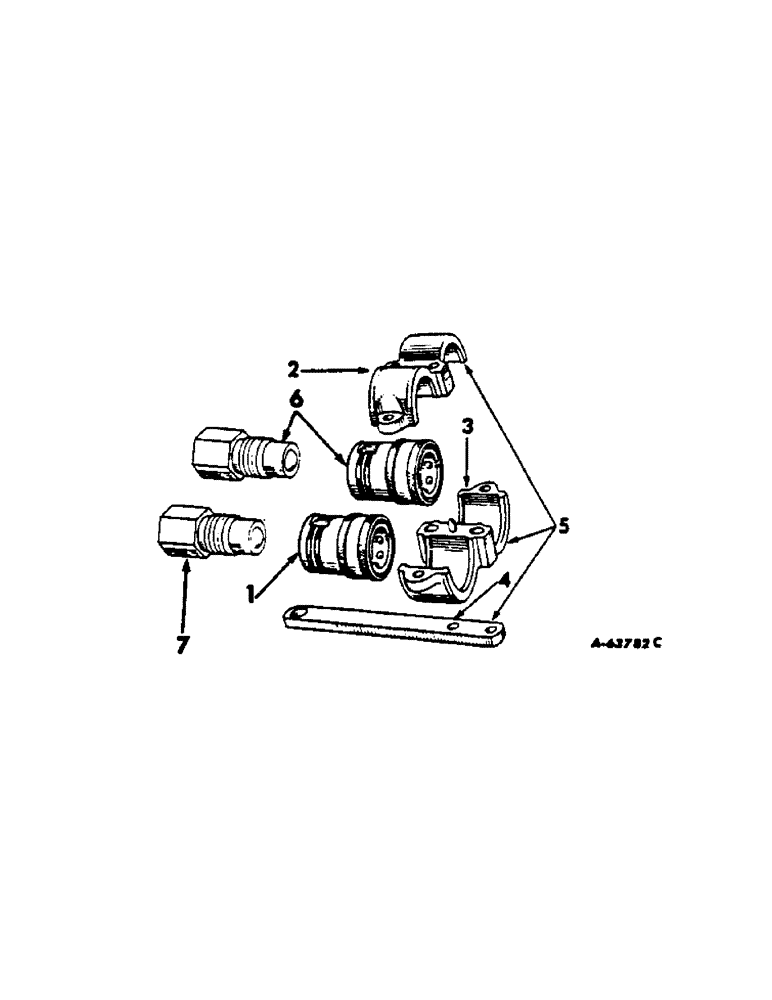

Запчасти Case IH 140 (10-16[A]) - HYDRAULICS, BREAK-AWAY AND SELF-SEALING COUPLINGS, 140 SERIES TRACTORS (07) - HYDRAULICS

1

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, self-sealing female, 7/8-14 straight thread

2шт.

1

395152R91

COUPLING

ASSY, self-sealing female, 1/2 in. pipe thread

2шт.

2

NSS

NOT SOLD SEPARAT

CLAMP, self-sealing frame, order frame, 371110R91

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

NSS

NOT SOLD SEPARAT

FRAME, self-sealing coupling, order frame, 371110R91

1шт.

4

371116R1

BAR

BRACKET, self-sealing coupling frame

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 C-Z hex-hd cap

2шт.

5

371110R91

FRAME

ASSY, self-sealing coupling

1шт.

6

388986R91

COUPLING

UNION AND FEMALE COUPLING ASSY, 7/8-14 straight thread, order coupling, 395150R91

1шт.

6

388987R91

COUPLING

UNION AND FEMALE COUPLING ASSY, 1/2 in. pipe thread, order coupling, 395152R91

1шт.

7

388988R91

UNION

ADAPTER ASSY, 7/8-14 straight thread, order coupling, 395150R91

2шт.

7

388989R91

UNION

ADAPTER ASSY, 1/2 in. pipe thread, order coupling, 395152R91

2шт.
