(274[B]) - MISCELLANEOUS EQUIPMENT, FRONT END WEIGHT BRACKET AND WEIGHTS, FARMALL TRACTORS

Запчасти Case IH 504 (274[B]) - MISCELLANEOUS EQUIPMENT, FRONT END WEIGHT BRACKET AND WEIGHTS, FARMALL TRACTORS Miscellaneous Equipment

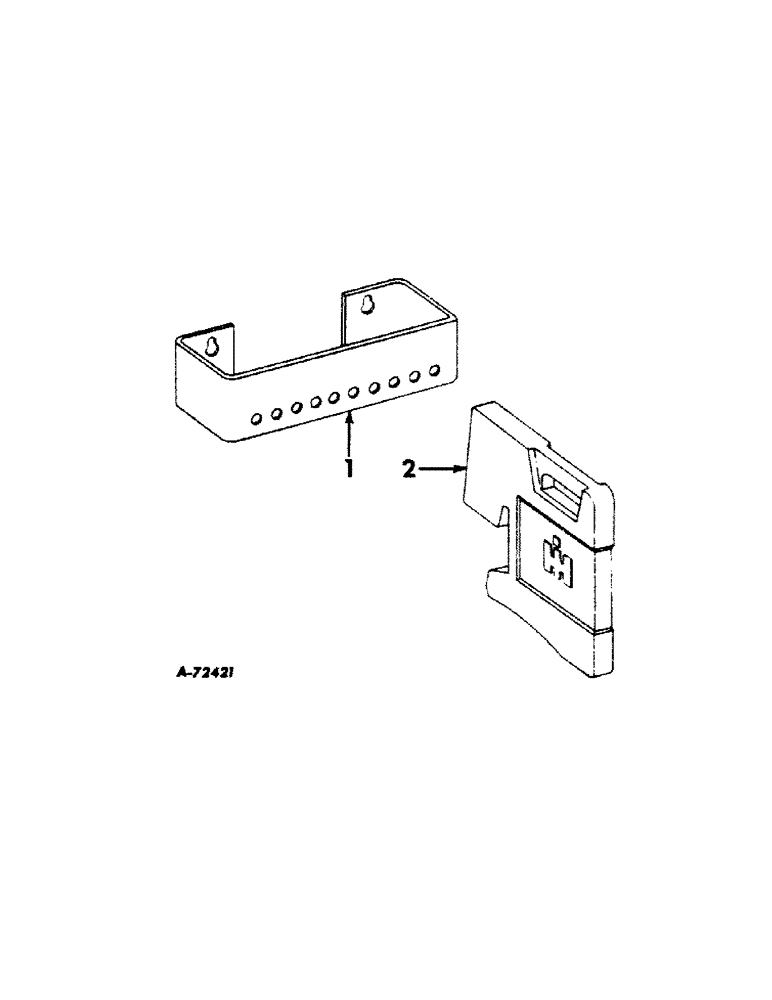

Схема запчастей Case IH 504 - (274[B]) - MISCELLANEOUS EQUIPMENT, FRONT END WEIGHT BRACKET AND WEIGHTS, FARMALL TRACTORS Miscellaneous Equipment
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

383388R91

PARTS ACCESSORY, front end weight mounting bracket, also order

1шт.

NSS

NOT SOLD SEPARAT

weight & mounting parts desired

1шт.

1

383389R11

BRACKET

ASSY, weight mounting

1шт.

271610

SCREW, 3/4-10 x 1-7/8 hex-hd cap

4шт.

2

383392R1

WEIGHT

front end, 67 lb

1шт.

2

383393R1

WEIGHT

front end, 100 lb

1шт.

105608

NUT

1/2-13 reg sq

1шт.

179897

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 hex-hd cap

1шт.
