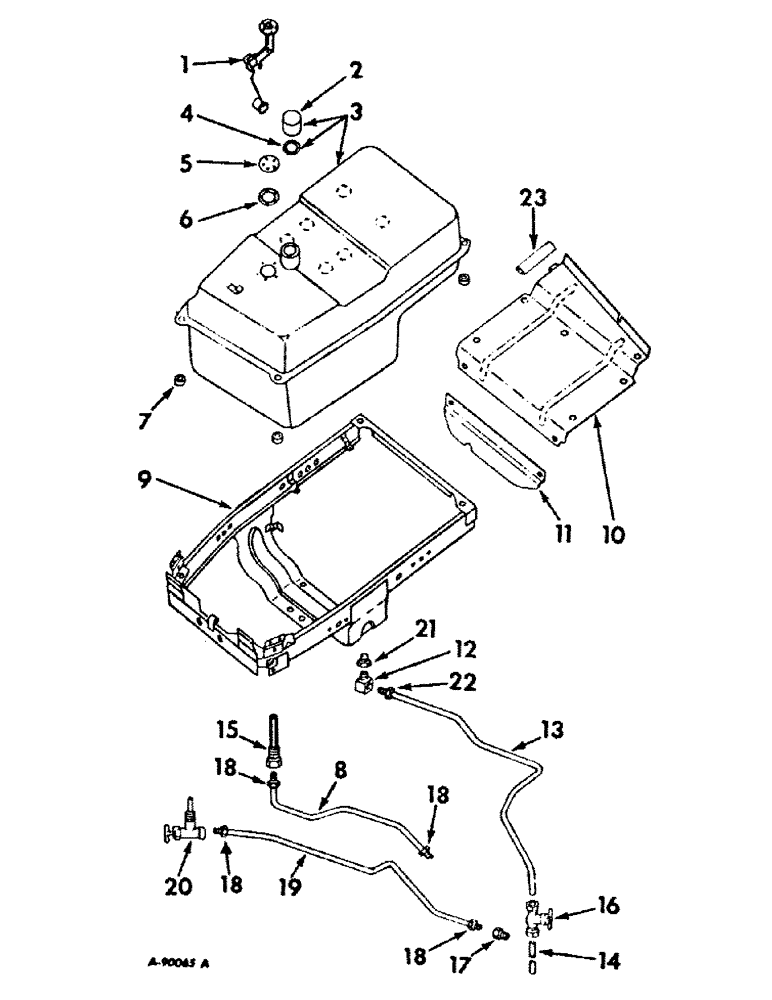

Запчасти Case IH 826 (12-04) - POWER, FUEL TANK, SUPPORTS AND PIPING, DIESEL ENGINE TRACTORS Power

1

378427R91

GAUGE

SENDING UNIT ASSY, electric fuel gauge

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

2

361910R91

PLUG

CAP W/GASKET, fuel tank filler

1шт.

3

406424R92

TANK

W/FILLER CAP, fuel

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

4шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd. cap

4шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

4шт.

4

23977DB

GASKET

fuel tank filler cap

1шт.

5

369155R1

COVER, fuel gauge sending unit opening, tractors w/o electric fuel gauge

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Cover mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

6

369154R1

GASKET

sending unit and cover

1шт.

7

60671DA

WASHER,11.94mm ID x 30.48mm OD x 8.13mm Thk

PAD, fuel tank insulating

4шт.

8

NSS

NOT SOLD SEPARAT

TUBE ASSY, fuel return, use 13 inches of 5/16 OD copper tubing from 50 foot roll marked, 995062R1, two nuts, 137398

1шт.

9

406431R1

SUPPORT ASSY, fuel tank

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

4шт.

446229

WASHER,1/2" x 1 1/4" x .109"

9/16 x 1-1/4 x .019

4шт.

10

396493R1

SHIELD ASSY, lower heat

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd. cap

2шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

11

396495R1

EXTENSION, lower heat shield

1шт.

12

225810

ELBOW UNION

ELBOW, 7/16-24 90 deg, flared tube

1шт.

13

NSS

NOT SOLD SEPARAT

TUBE ASSY, fuel tank drain long, use 25 inches of 1/4 OD copper tubing from a roll marked 995061R1 and 1, 137397 inverted flared nut and 1, 114627 nut and 1, 114628 sleeve

1шт.

14

NSS

NOT SOLD SEPARAT

TUBE ASSY, fuel tank drain short, use 8.5 inches of 1/4 OD copper tubing form 50 ft. roll marked 995061R1 and 1, 114627 sleeve and 1, 114628 nut

1шт.

15

396515R1

CHECK VALVE

CONNECTOR, fuel return pipe check

1шт.

16

385747R91

COCK

VAVLE ASSY, drain

1шт.

17

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

18

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

NUT, 1/2-20 inverted flared tube

4шт.

19

NSS

NOT SOLD SEPARAT

TUBE ASSY, fuel tank to fuel filter, use 27-1/2 inches of 5/16 OD copper tubing from 50 foot roll marked, 995062R1 and two nuts 137398

1шт.

20

396510R1

LOCK VALVE

VALVE, fuel tank shut-off

1шт.

21

119933

ADAPTER,3/8" NPT Male x 1/8" NPT Fem

3/8 x 1/8 reducing pipe

1шт.

22

137397

NUT

7/16-24 inverted flared tube

1шт.

23

392910R1

BUMPER

heat shield

1шт.
