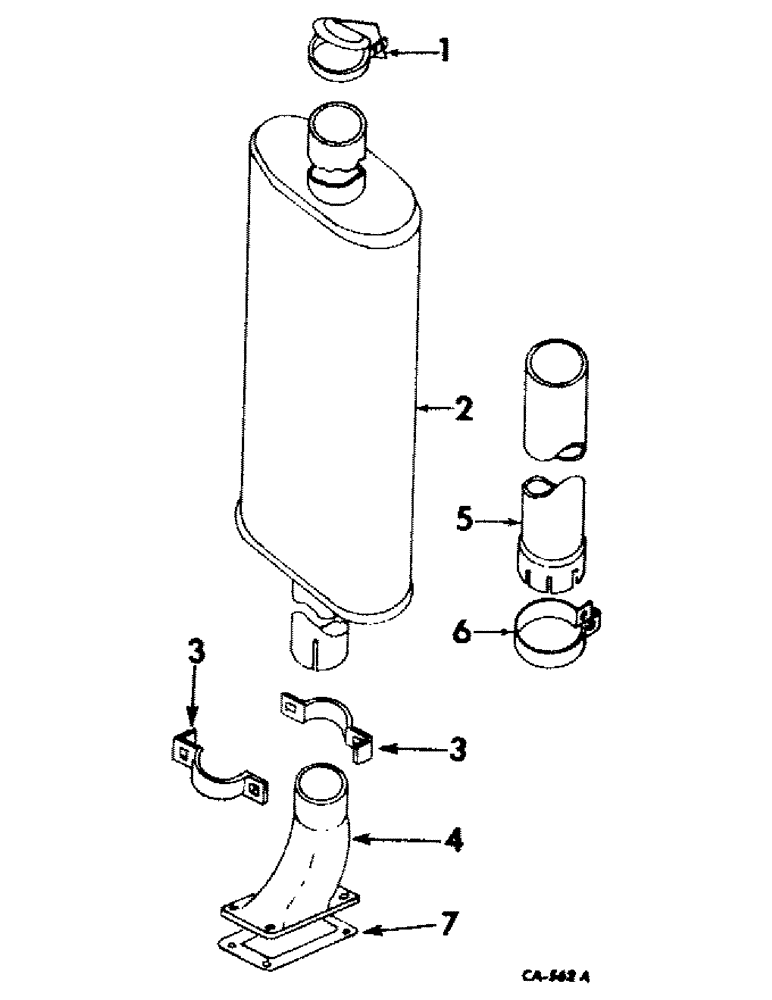

Запчасти Case IH 826 (12-14) - POWER, EXHAUST SYSTEM, DIESEL ENGINE TRACTORS Power

1

402309R1

CYLINDER END CAP

CAP ASSY, exhaust

1шт.

2

530588R2

MUFFLER

exhaust

1шт.

3

402310R1

FASTENER

CLAMP, exhaust muffler

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8-16 x 1-3/8 sq-nk. crg.

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

396520R1

ELBOW

exhaust manifold

1шт.

103026

NUT,3/8"-24, G5

4шт.

5

527703R1

EXTENSION

muffler, tractors w/cab or protective frame

1шт.

6

527704R1

CLAMP

exhaust, tractors w/cab or protective frame

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8-16 x 1-1/2 hex-hd. mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

396389R1

MANIFOLD GASKET

exhaust pipe

1шт.
