(06-05) - COOLING, RADIATOR AUXILIARY SCREEN

Запчасти Case IH HYDRO 186 (06-05) - COOLING, RADIATOR AUXILIARY SCREEN Cooling

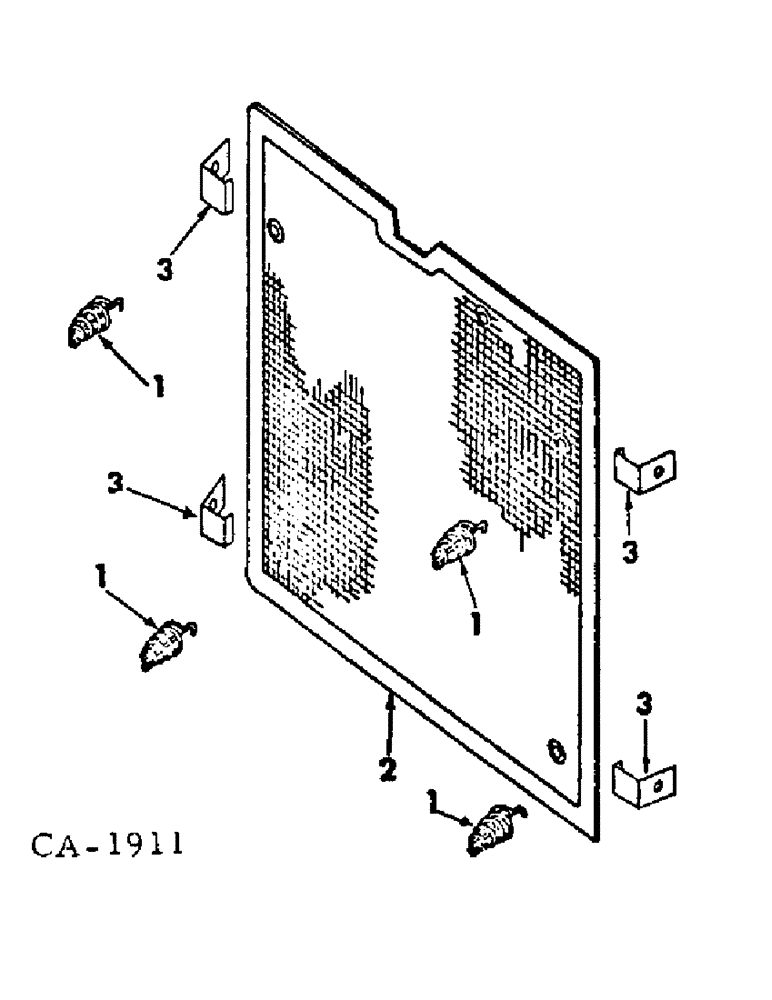

Схема запчастей Case IH HYDRO 186 - (06-05) - COOLING, RADIATOR AUXILIARY SCREEN Cooling
1
3
3
1
1
3
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

534635R91

STRIPPER PACKAGE

PARTS ACCESSORY, radiator auxiliary screen

1шт.

1

392525R1

FASTENER

coil spring

4шт.

2

SCREEN, radiator auxiliary, not available separately order parts accessory, 534635R91

1шт.

3

534634R1

CLIP

screen fastener

4шт.

436765

SCREW, 12-24 x 3/8 C-Z slt-pan-hd mach

4шт.

121744

ANGLE

Washer, Lock, #12

4шт.

225-14112

NUT,#12-24

12-24 znd hex

4шт.
