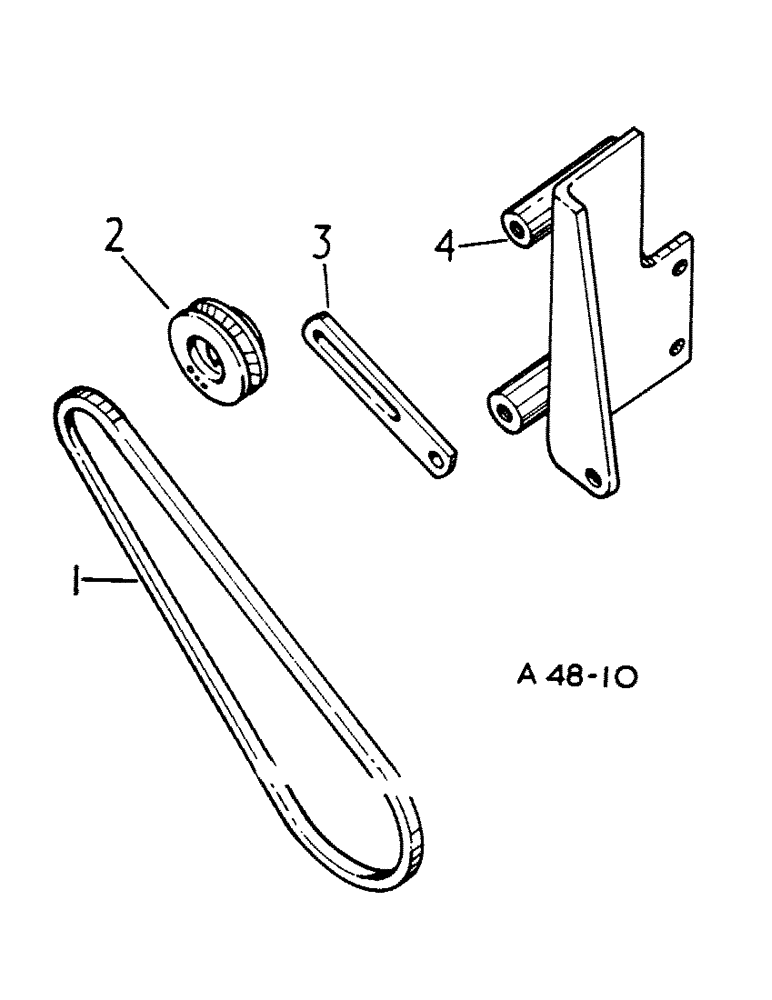

Запчасти Case IH 2350 (3-39) - ALTERNATOR PULLEY, FAN BELT AND BRACKET (04) - ELECTRICAL SYSTEMS

1

3119750R1

BELT,0.38" W

BELT , Alternator 0.38" W

1шт.

2

3119751R1

PULLEY

alternator

1шт.

3

3119752R1

SUPPORT

alternator brace

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

3119753R1

SUPPORT

ASSY, alternator

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

95-11034

WASHER,1/4"

.344 x .688 x .051

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.
