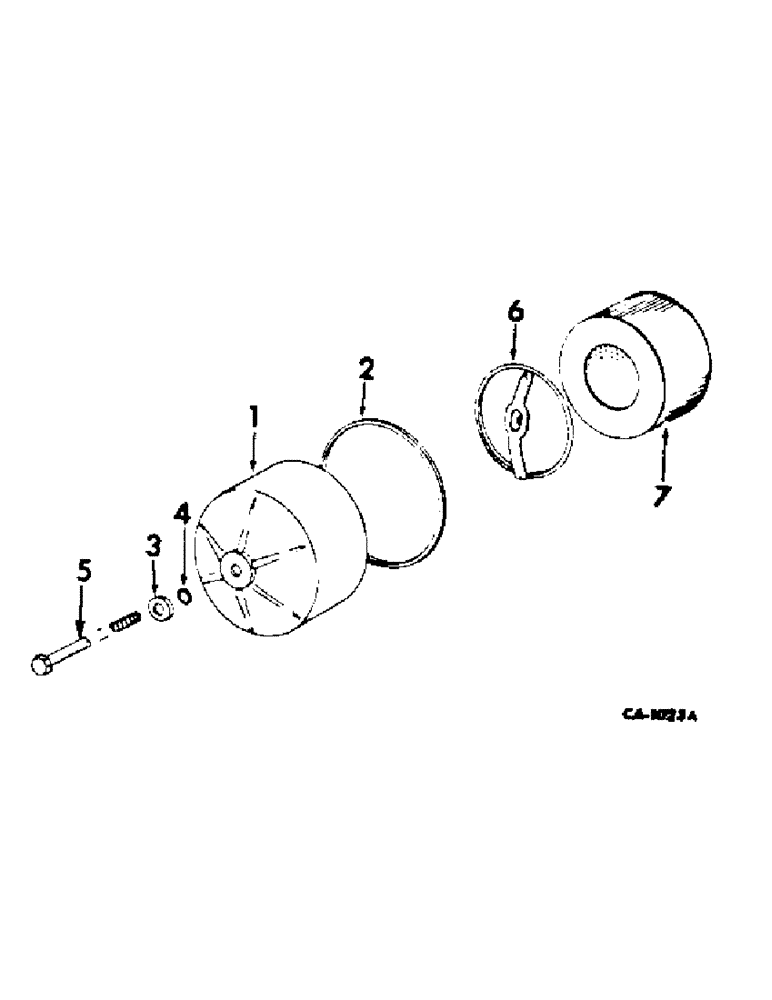

Запчасти Case IH 2400 (10-08) - HYDRAULICS, OIL FILTER (07) - HYDRAULICS

1

68209C1

CASE

filter, replaces 405461R1

1шт.

2

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

Oil filter case

1шт.

3

405463R1

RETAINER

seal, tractors w/skidded unit no. 109182 and below

1шт.

A SKIDDED UNIT WAS A UNIT THAT WAS SHIPPED ON PALLETS AND ASSEMBLED IN THE U.S. TO SAVE TARIFF COSTS. SERIAL NO IS BY THE BELL HOUSING. SEE FRONT OF BOOK FOR PHOTO OF LOCATION.

1шт.

4

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/32 filter case seal, tractors w/skidded unit no. 109182 and below

1шт.

A SKIDDED UNIT WAS A UNIT THAT WAS SHIPPED ON PALLETS AND ASSEMBLED IN THE U.S. TO SAVE TARIFF COSTS. SERIAL NO IS BY THE BELL HOUSING. SEE FRONT OF BOOK FOR PHOTO OF LOCATION.

1шт.

4

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16 filter case seal, tractors w/skidded unit no. 109183 and above

1шт.

A SKIDDED UNIT WAS A UNIT THAT WAS SHIPPED ON PALLETS AND ASSEMBLED IN THE U.S. TO SAVE TARIFF COSTS. SERIAL NO IS BY THE BELL HOUSING. SEE FRONT OF BOOK FOR PHOTO OF LOCATION.

1шт.

5

538269R1

BOLT

center, tractors w/skidded unit no. 109182 and below

1шт.

A SKIDDED UNIT WAS A UNIT THAT WAS SHIPPED ON PALLETS AND ASSEMBLED IN THE U.S. TO SAVE TARIFF COSTS. SERIAL NO IS BY THE BELL HOUSING. SEE FRONT OF BOOK FOR PHOTO OF LOCATION.

1шт.

5

68202C1

BOLT

BOLT, filter mounting, tractors w/skidded unit no. 109183 and above

1шт.

A SKIDDED UNIT WAS A UNIT THAT WAS SHIPPED ON PALLETS AND ASSEMBLED IN THE U.S. TO SAVE TARIFF COSTS. SERIAL NO IS BY THE BELL HOUSING. SEE FRONT OF BOOK FOR PHOTO OF LOCATION.

1шт.

6

405464R2

VALVE

AND SCREEN ASSY, by-pass

1шт.

7

ELEMENT ASSY, not serviced separately, furnish oil filter element service package

1шт.

530144R92

FILTER, ELEMENT

PACKAGE, oil filter element service, tractors with synchromesh transmission, consists of (1) gasket 405462R1, (1) o-ring 355966R1, (1) o-ring 375271R1, (1) element 401073R2 (NSS)

1шт.

65126C92

ELEMENT

PACKAGE, oil filter element service, tractors with hydrostatic transmission, consists of (1) gasket 401070R1, (1) gasket 405462R1, (1) o-ring 355966R1, (1) o-ring 375271R1, (2) element 401073R2 (NSS)

1шт.
