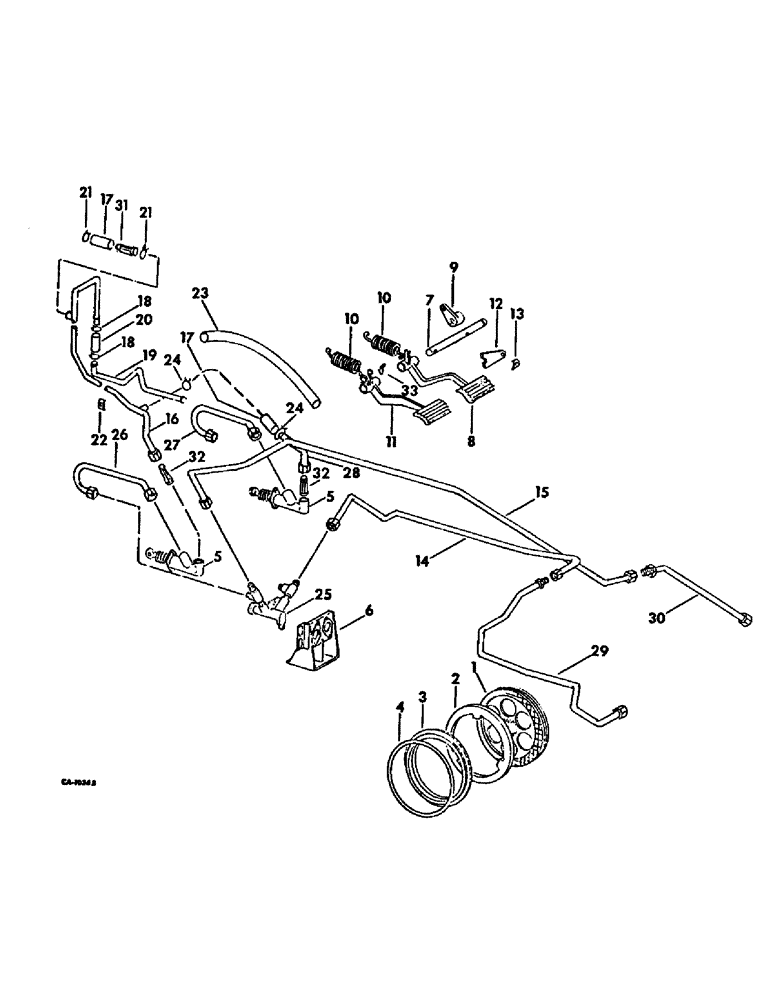

Запчасти Case IH 2500 (04-01) - BRAKES, BRAKES, INTL 574 WITH S/N 7365 AND BELOW AND INTL 2500 SERIES A WITH S/N 1794 & BELOW (5.1) - BRAKES

1

399734R1

NO LONGER SERVICED

DISC, brake center

2шт.

2

399736R2

RING

brake

2шт.

3

399737R2

PISTON ASSY.

PISTON, brake

2шт.

4

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

10 x 10-1/4 x 1/8 brake piston

2шт.

5

527542R92

CYLINDER

ASSY, brake master

2шт.

5

527542R92GV

BRAKE CYLINDER

Value, Brake, Master Cylinder Assy.

2шт.

(P/N 527542R92) - 3125824R1 seal kit for ref #5

1шт.

6

529582R1

BRACKET

ASSY, brake cyl mounting, synchromesh transmission tractors

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

527545R1

BRACKET

ASSY, brake cyl mounting, hydrostatic drive tractors

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

399740R1

SHAFT

pedal support, synchromesh transmission tractors and hydrostatic drive tractors w/hand controls

1шт.

8

399741R2

PEDAL

RH brake

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

399744R1

BOLT

BOLT, brake pedal adjusting

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103026

NUT,3/8"-24, G5

1шт.

9

529858R1

ARM

RH brake pedal

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

1шт.

10

539556R1

SPRING

brake pedal return

2шт.

11

399745R11

PEDAL

ASSY, LH brake, on orders for 399745R11 furnish 537095R11 and bushing 537099R1

1шт.

11

537095R11

PEDAL ASSY.

PEDAL ASSY, LH brake, consists of ref nos 12, 13 and rivet 104087

1шт.

399744R1

BOLT

BOLT, brake pedal adjusting

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103026

NUT,3/8"-24, G5

1шт.

12

43751DB

LATCH, PEDALS

PLATE, brake pedal lock

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 x 1-1/4 small b-hd solid

1шт.

13

51293D

SPRING

brake pedal lock tension

1шт.

14

529603R1

PIPE FITTING

TUBE ASSY, brake LH, on orderes for 529603R1, furnish LH tube assy 66093C1, synchromesh transmission tractors also order oil cooler tubes 66095C1 and 66097C1 and hydrostatic drive tractor also order tube 529617R2

1шт.

14

536620R1

TUBE

ASSY, brake LH front, furnish one tube 66093C1 which will work for tubed 53662R1 and 536621R1

1шт.

15

529604R1

TUBE

ASSY, brake RH, on orders for 529604R1, furnish RH tube assy 66094C1, tee 9411128 and cap 9403369

1шт.

15

536622R1

TUBE

ASSY, brake RH front, furnish on tube 66094C1 which will work for tubes 53662R1 and 536623R1

1шт.

16

530126R1

TUBE

ASSY, brake keep full reservoir, on orders for tube 530126R1 furnish 3 hoses 66372C1, 2 tubes 66367C1, 2 straps 289862C1, tube 66369C1, hose 66368C1, clip 527433R1 and 8 clamps 279025R91

1шт.

17

530127R1

HOSE,0.31" ID x 1.70"

Brake Reservoir Inlet 0.31" ID x 1.70"

2шт.

18

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

4шт.

19

530128R1

TUBE, brake reservoir dump, on orders for tube 530128R1 furnish 3 hoses 66372C1, 2 tubes 66367C1, 2 straps 289862C1, tube 66369C1, hose 66368C1, clip 527433R1 and 8 clamps 279025R91

1шт.

19

539461R1

TUBE ASSY.

TUBE ASSY, brake reservoir dump, International 2500 series A with hydrostatic drive and foot controls

1шт.

20

537612R1

HOSE

brake reservoir overflow, on orders for hose 530129R1 or 537612R1 furnish 3 hoses 66372C1, 2 tubes 66367C1, 2 straps 289862C1, tube 66369C1, hose 66368C1, clip 527433R1 and 8 clamps 279025R91

1шт.

21

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

22

384891R1

CLAMP

hyd tube

1шт.

557264R1

WASHER

11/32 x 3/4 x 11 ga

1шт.

23

530130R1

HOSE, brake reservoir dump, on orders for hose 530130R1 furnish 3 hoses 66372C1, 2 tubes 66367C1, 2 straps 289862C1, 2 tubes 66367C1, hose 66368C1, clip 527433R1, and 8 clamps 279025R91

1шт.

24

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

25

530374R92

VALVE

ASSY, brake equalizer

1шт.

(P/N 530374R92) - 68434C3 Kit

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

26

530851R2

TUBE

ASSY, equalizer LH

1шт.

27

530852R1

TUBE

ASSY, equalizer RH

1шт.

28

531529R1

TUBE ASSY, brake reservoir RH, on orders for tube 531529R1 furnish 3 hoses 66372C1, 2 tubes 66367C1, 2 straps 289862C1, tube 66369C1, hose 66368C1, clip 527433R1 and 8 clamps 279025R91

1шт.

29

536621R1

TUBE

ASSY, brake LH rear, furnish one tube 66093C1 which will work for tubes 536620R1 and 536621R1

1шт.

30

536623R1

TUBE

ASSY, brake RH rear, furnish on tube 66094C1 which will work for tubes 536622R1 and 536623R1

1шт.

31

537518R1

SCREEN

ORIFICE AND SCREEN ASSY, brake

1шт.

32

537849R2

SCREEN

ORIFICE AND SCREEN ASSY, brake reservoir

2шт.

33

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING, 1/4 65 deg angle drive type lub

1шт.
