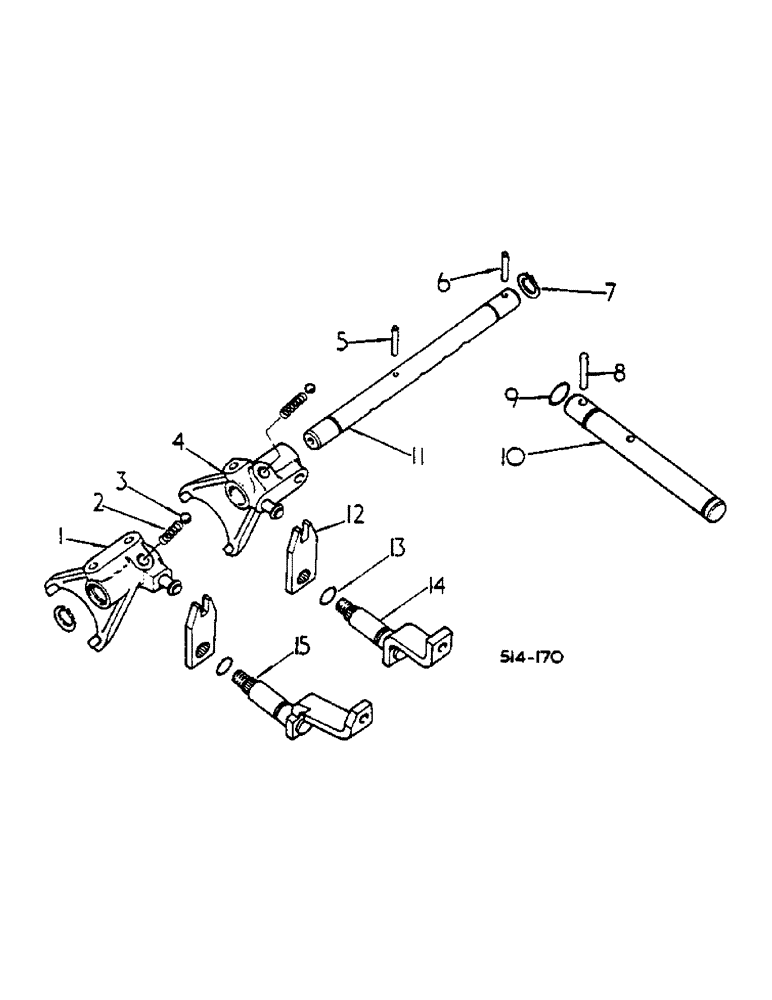

Запчасти Case IH 454 (07-73) - GEAR SHIFT MECHANISM, RANGE TRANSMISSION (04) - Drive Train

1

538911R4

FORK

FRONT

1шт.

1

537470R1

NO LONGER SERVICED

FORK, FRONT

1шт.

ON ORDERS FOR 537470R1, FURNISH 538911R3 TOGETHER W/ARM 405164R2 AND TWO WASHER Q3501

1шт.

1

402146R1

SPARE PART SYNCHROMESH DRIVE TRACTORS

1шт.

ON ORDERS FOR 402146R1, USED AS FRONT FORK, OR 402149R1, FURNISH 538911R3 TOGETHER W/ARM 405164R2, TWO WASHER Q3501, RAIL 537473R1 AND PIN 20122R1

1шт.

2

534053R1

SPRING

POPPET BALL, 1 USED FOR HYDROSTATIC DRIVE TRACTORS

2шт.

3

17013R1

BALL,13/32" Dia

Optional w/16013R1

2шт.

3

16013R1

BALL

13/32 CR-STL, OPTIONAL W/17013R1, 1 USED FOR HYDROSTATIC DRIVE TRACTORS

2шт.

4

538912R4

FORK

REAR

1шт.

4

537472R1

NO LONGER SERVICED

FORK, REAR

1шт.

ON ORDERS FOR 537472R1, FURNISH 538912R3 TOGETHER W/ARM 405167R2 AND TWO WASHER Q3501

1шт.

4

402146R1

SPARE PART SYNCHROMESH DRIVE TRACTORS

1шт.

ON ORDERS FOR 402146R1, USED AS FRONT FORK, OR 402149R1, FURNISH 538911R3 TOGETHER W/ARM 405164R2, TWO WASHER Q3501, RAIL 537473R1 AND PIN 20122R1

1шт.

4

538913R4

FORK

1шт.

4

402148R1

EXCITER

FORK

1шт.

ON ORDERS FOR 402146R1, USED AS RANGE SHIFT FORK, OR 402148R1, FURNISH 538913R3 TOGETHER W/ARM 405167R2 AND TWO WASHER Q3501

1шт.

4

402146R1

SPARE PART HYDROSTATIC DRIVE TRACTORS, USE ON SYNCHROMESH W/FORWARD AND REVERSE

1шт.

ON ORDERS FOR 402146R1, USED AS RANGE SHIFT FORK, OR 402148R1, FURNISH 538913R3 TOGETHER W/ARM 405167R2 AND TWO WASHER Q3501

1шт.

5

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

6

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

661652R1

SNAP RING,#75, Ext

Shift fork rail

1шт.

8

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

9

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 X 7/8 X 3/32

1шт.

10

402152R1

SHAFT

RANGE TRANS. SHIFT LEVER IDLER, SYNCHROMESH DRIVE TRACTOR

1шт.

10

527853R1

SHAFT

HYDROSTATIC RANGE SHIFT LEVER, HYDROSTATIC DRIVE TRACTORS, USE ON SYNCHROMESH W/FORWARD AND REVERSE

1шт.

11

537473R1

RAIL ASSY.

RANGE SHIFT FORK

1шт.

11

402149R1

RAIL ASSY.

RANGE SHIFT FORK, SYNCHROMESH DRIVE TRACTORS

1шт.

ON ORDERS FOR 402146R1, USED AS FRONT FORK, OR 402149R1, FURNISH 538911R3 TOGETHER W/ARM 405164R2, TWO WASHER Q3501, RAIL 537473R1 AND PIN 20122R1

1шт.

11

402150R1

RAIL

RANGE SHIFT FORK, HYDROSTATIC DRIVE TRACTORS, USE ON SYNCHROMESH W/FORWARD AND REVERSE

1шт.

12

405169R2

ARM

RANGE SHIFT INNER, 1 USED FOR HYDROSTATIC DRIVE TRACTORS

2шт.

19605R1

LOCK NUT,1/2"-13, GB

1/2-13 NYLON INSERT, 1 USED FOR HYDROSTATIC DRIVE TRACTORS

2шт.

13

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 X 3/4 X 3/32, 1 USED FOR HYDROSTATIC DRIVE TRACTORS

2шт.

14

405167R2

ARM

ASSY, RANGE SHIFT OUTER REAR

1шт.

Q3501

WASHER

25/32 X 1-1/4 X .060

2шт.

15

405164R2

ARM

ASSY, RANGE SHIFT OUTER FRONT

1шт.

Q3501

WASHER

25/32 X 1-1/4 X .060, SYNCHROMESH DRIVE TRACTORS

2шт.
