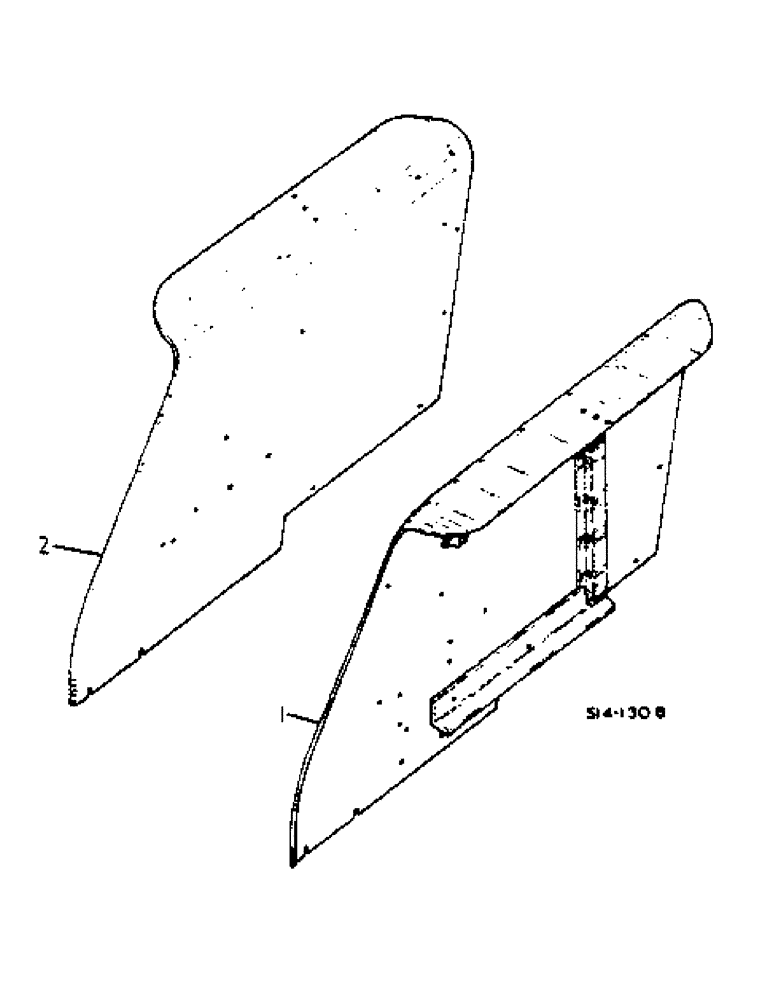

Запчасти Case IH 574 (13-005) - REAR FENDERS, CROWN TYPE (05) - SUPERSTRUCTURE

1

538640R1

SPARE PART

FENDER, LH W/PRODUCT GRAPHIC -W/O SIDE AND TAIL LIGHT- - ORDER FENDERS 538641R1 -

1шт.

1

538641R1

FENDER ASSY.

LH W/PRODUCT GRAPHIC -W/SIDE AND TAIL LIGHT-

1шт.

2

530008R1

FENDER

RH -W/O SIDE AND TAIL LIGHT- - ORDER FENDERS 530015R1 -

1шт.

2

530015R1

FENDER ASSY.

RH -W/SIDE AND TAIL LIGHT-

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

5/16-18 X 1-3/4

2шт.

80681

LOCK WASHER,5/16"

To rear top cover

6шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

To transmission shift control housing or draft control housing

2шт.

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 HEX HD CAP

4шт.

116121

LOCK WASHER,1/2"

To axle carrier

4шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW 3/8-16 X 5/8 HEX HD CAP

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

To parking brake bracket

3шт.

534425R91

PLATE, FENDER MOUNTING LOWER, 574, NOT ILLUSTRATED, Serial Range: -000651

4шт.

534425R91

PLATE, FENDER MOUNTING LOWER, 2500, NOT ILLUSTRATED, Serial Range: -000500

4шт.
