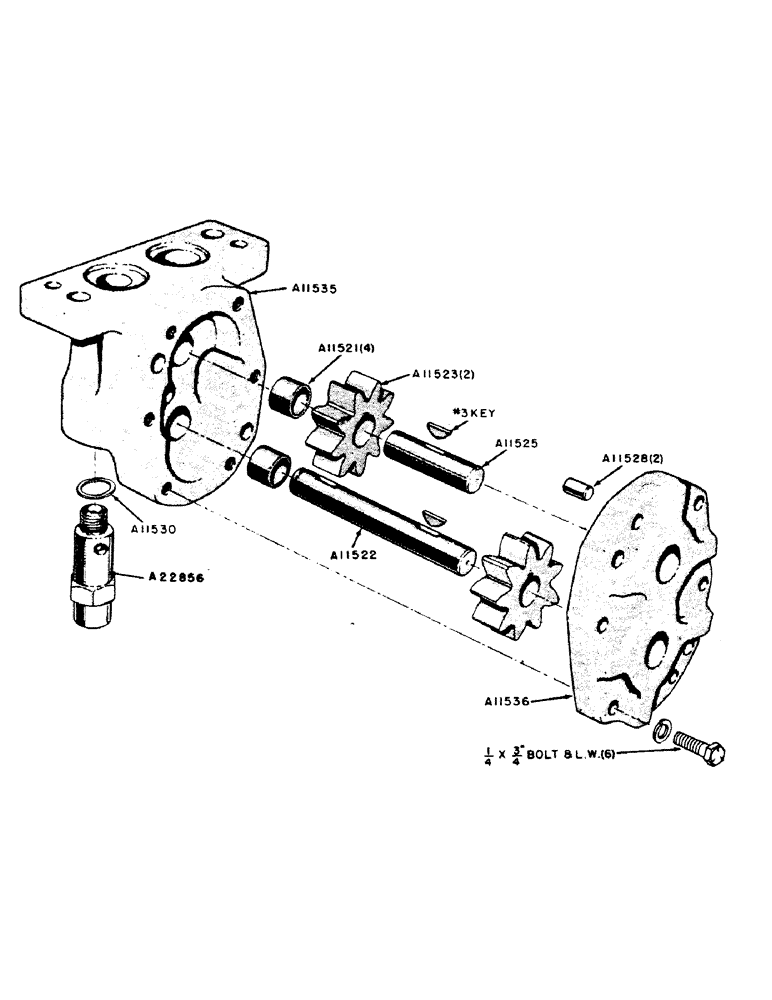

Запчасти Case IH 300B-SERIES (092) - PARTS FOR G45336 CASE-O-MATIC DRIVE PUMP (08) - HYDRAULICS

A11520

HOUSING (Use A11535)

1шт.

A11521

BUSHING,11.89mm ID x 15.93mm OD x 12.83mm L

- oil pump shaft

4шт.

A11522

SHAFT

- drive

1шт.

A11523

GEAR

- oil pump

2шт.

#3 Woodruff key

2шт.

A11525

SHAFT

- idler

1шт.

A11527

COVER (Use A11536)

1шт.

A11528

PIN,7.81mm OD x 14.29mm L

DOWEL PIN -, Serial Range: cover-pump

2шт.

A11530

GASKET

- relief valve

1шт.

A11535

HOUSING - oil pump (includes 2-A11521 bushings)

1шт.

A11536

COVER - oil pump (includes 2-A11521 bushings)

1шт.

1/4" x 3/4" N.C. hex. hd. bolt w/lockwasher

6шт.

A22856

X

VALVE - relief

1шт.

G45386

PUMP

ASSEMBLY complete

1шт.
