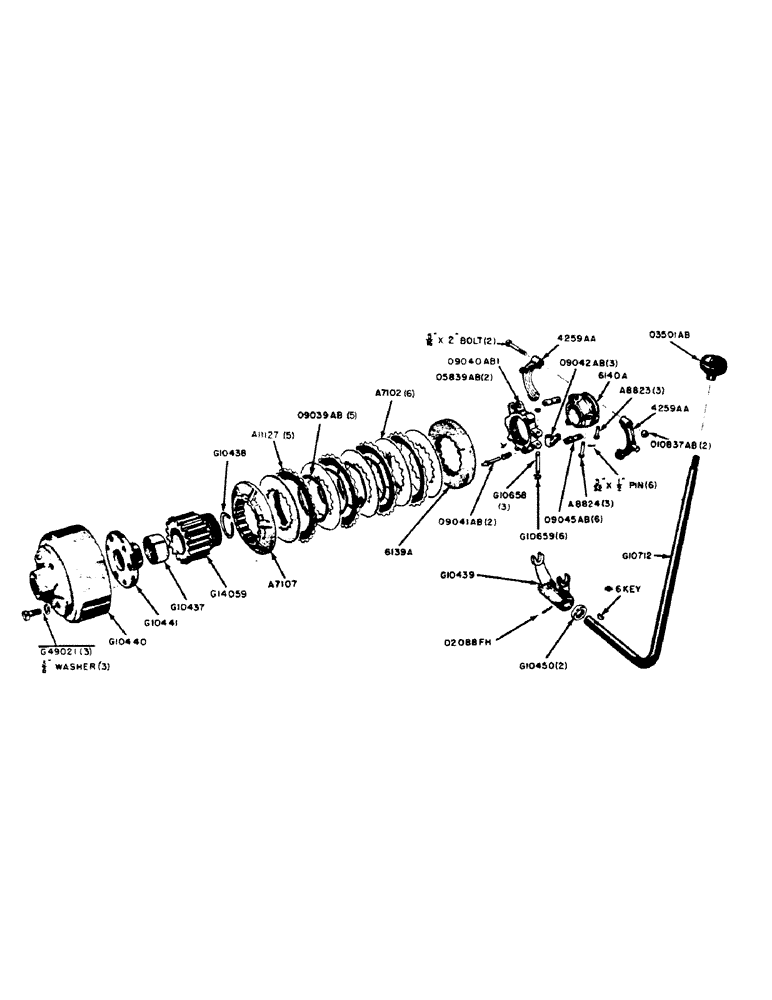

Запчасти Case IH 300B-SERIES (106) - HAND CLUTCH, PARTS FOR MULTIPLE PLATE CLUTCH, 300B SERIES TRACTORS (06) - POWER TRAIN

*

G10439

COUPLING

YOKE - hand clutch throw-out

1шт.

*

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

OIL SEAL - hand clutch lever

2шт.

*

G10712

LEVER - hand clutch throw-out

1шт.

*

#6 Woodruff key

1шт.

*

A26727

BALL

KNOB - clutch lever (Replaces 3501AB)

1шт.

*

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, , Yoke to clutch lever (Replaces 2088FH) 3/16" x 1 3/8", Slotted

1шт.

*

A66365

PLATE

- hand clutch, driven (steel ground finish surface) (Replaces A7102)

6шт.

*

A7107

PLATE

- hand clutch backing, parts for multiple

1шт.

*

A8823

PIN,6.29mm OD x 26.99mm L

- clutch lever link, outer (1-1/32" long), parts for multiple plate

3шт.

*

3/32" x 1/2" cotter pin

3шт.

*

A8824

PIN

- clutch lever link, inner (1-15/64" long), parts for multiple plate

3шт.

*

3/32" x 1/2" cotter pin

3шт.

*

A11127

PLATE

- clutch drive, parts for multiple

5шт.

*

G10437

BEARING

BUSHING - clutch hub, parts for multiple plate clutch

1шт.

*

G10438

RING

- internal snap, clutch hub, parts for multiple plate

1шт.

*

G10440

DRUM HUB

DRUM - clutch, parts for multiple plate

1шт.

*

G10441

HUB CAP

HUB - clutch drum, parts for multiple plate

1шт.

*

G10658

AXLE PIN

PIN - clutch finger pivot, parts for multiple plate

3шт.

*

G10659

SNAP RING,#31, Ext

Ring, Snap, , pivot pin, parts for multiple plate clutch #31, Ext

6шт.

*

G10459

X

HUB - hand clutch assembly w/bushing and snap ring, parts for multiple plate

1шт.

*

G49021

BOLT (SPREADER)

BOLT - drilled, clutch drum to hub, parts for multiple plate

3шт.

*

A26225

LARGE PLATE

PLATE - clutch pressure (Replaces 6139A), parts for multiple plate

1шт.

*

A26226

SLEEVE CYLINDER

SLEEVE - clutch sliding (Replaces 6140A), parts for multiple plate

1шт.

*

A28596

COLLAR CLAMP

COLLAR (Use 4259AA) (Replaces 6141A), parts for multiple plate clutch

1шт.

*

A26944

VALVE SPRING

SPRING - clutch adjusting lock pin (Replaces 5839AB), parts for multiple plate

2шт.

*

A27591

VALVE SPRING

SPRING - clutch drive plate separator (Replaces 9039AB), parts for multiple plate

5шт.

*

A27592

FORK

YOKE - clutch adjusting (Replaces 9040AB1), parts for multiple plate

1шт.

*

A34248

LOCK PIN,7.85mm OD x 39.62mm L

PIN - clutch adjusting lock (Replaces 9041AB), parts for multiple plate

2шт.

*

A27594

FINGER

- clutch (Replaces 9042AB), parts for multiple plate

3шт.

*

A27596

LINK

- clutch lever (Replaces 9045AB), parts for multiple plate

6шт.

*

231-2445

LOCK NUT,5/16"-24, GB

STOP NUT - elastic, 5/16" - 24 for bolts in 4259AA collar (Replaces 10837AB), parts for multiple plate clutch

2шт.

*

A28596

COLLAR CLAMP

COLLAR - clutch throw-out (consists of collar with (2) 5/16" x 2" bolts NF hex. and (2) 010837AB stop nuts) (Replaces 4259AA), parts for multiple plate

1шт.
