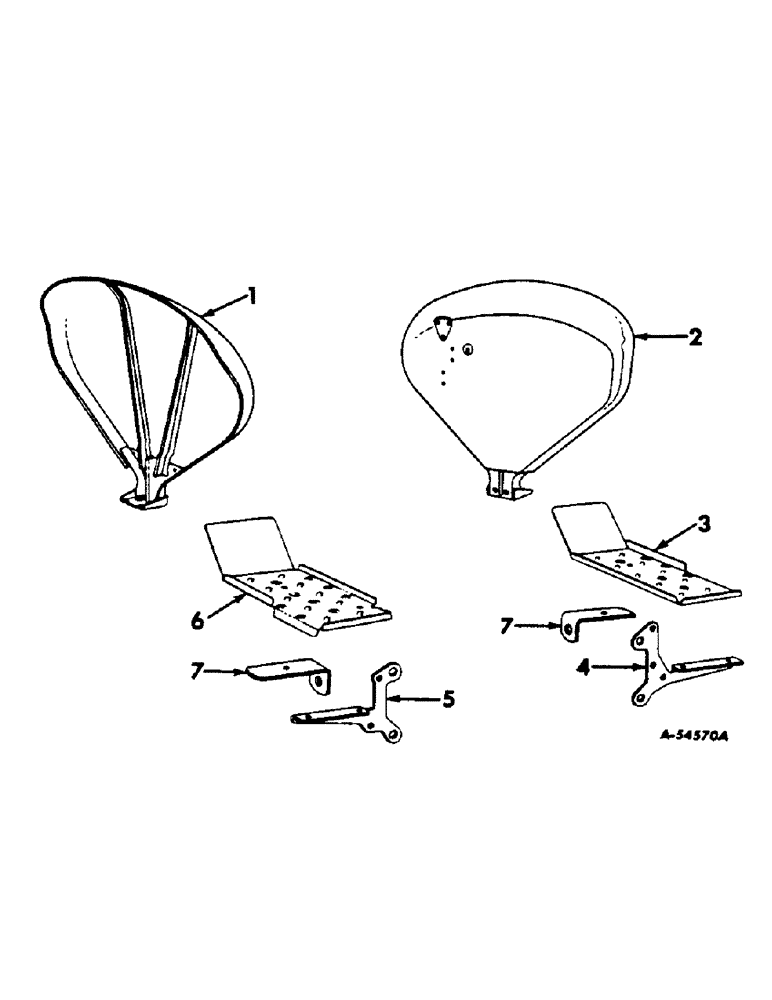

Запчасти Case IH 460 (226) - SHEET METAL, GRILLES, AND FENDERS, FENDERS AND PLATFORMS, INTERNATIONAL 460 SERIES Sheet Metal, Grilles & Fenders

1

371045R92

SPARE PART ASSEMBLY, RH

1шт.

1

371047R92

SPARE PART ASSEMBLY, RH (For all Hi-Utility tractors)

1шт.

SCREW, 1/2 x 1" hex-hd. cap

4шт.

2

371044R92

SPARE PART ASSEMBLY, LH

1шт.

2

371046R92

SPARE PART ASSEMBLY, LH (For all Hi-Utility tractors)

1шт.

SCREW, 1/2 x 1" hex-hd. cap

4шт.

3

368308R3

SPARE PART LH

1шт.

NUT, 1/4"

3шт.

BOLT, 1/4 x 3/4" crg.

3шт.

3

375479R2

SPARE PART LH (Tractors with safety starting switch)

1шт.

4

369980R1

SPARE PART BRACKET, LH platform front

1шт.

SCREW, 5/8 x 2-1/4" hex-hd. cap

2шт.

WASHER, 5/8" external-tooth lock

2шт.

5

370000R1

SPARE PART BRACKET, RH platform front (Not used on tractors equipped with foot pedal Accelerator)

1шт.

5

370970R1

SPARE PART RH platform front (For tractors equipped with foot pedal Accelerator)

1шт.

SCREW, 5/8 x 2-1/4" hex-hd. cap

2шт.

WASHER, 5/8" external-tooth lock

2шт.

6

361731R5

SPARE PART RH (Not used on tractors equipped with foot pedal Accelerator)

1шт.

6

367931R31

SPARE PART RH (For tractors equipped with foot pedal Accelerator) (Illustrated with foot pedal Accelerator)

1шт.

BOLT, 1/4 x 3/4" crg.

3шт.

NUT, 1/4"

3шт.

7

362463R1

SPARE PART Platform rear

2шт.

SCREW, 3/4 x 1-1/2" hex-hd. cap (For LH Bracket)

1шт.

WASHER, 3/4" lock (For LH Bracket)

1шт.
