(067) - STEEL REAR WHEEL, 48 INCH X 12 INCH

Запчасти Case IH 500-SERIES (067) - STEEL REAR WHEEL, 48 INCH X 12 INCH (06) - POWER TRAIN

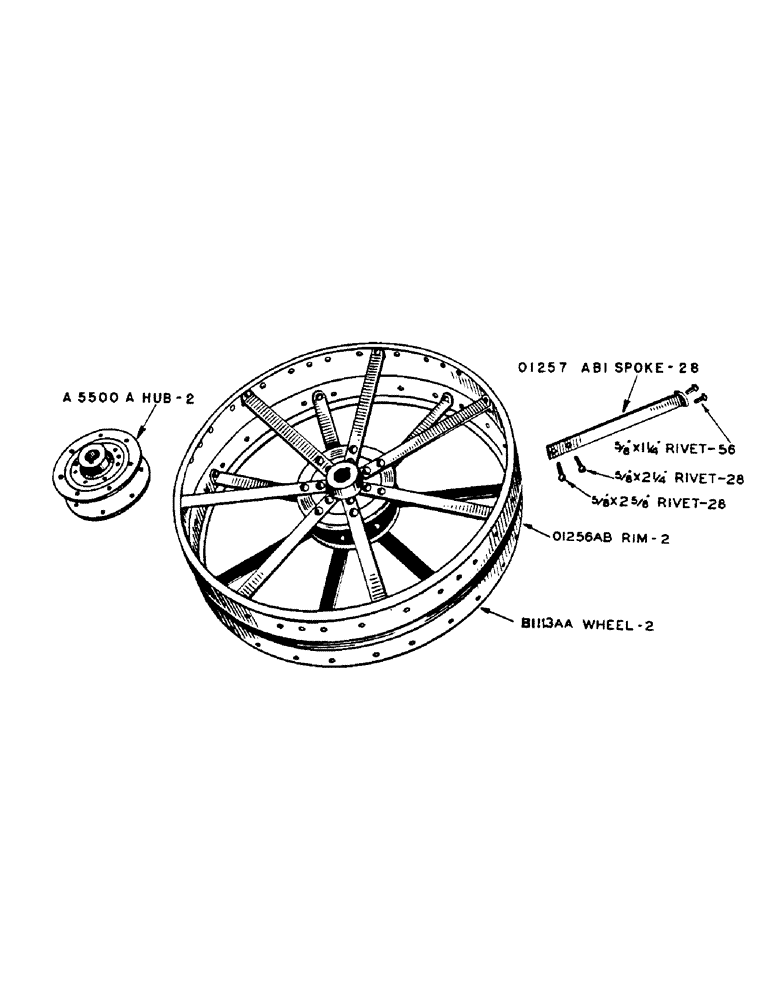

Схема запчастей Case IH 500-SERIES - (067) - STEEL REAR WHEEL, 48 INCH X 12 INCH (06) - POWER TRAIN
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A5500A

HUB - rear wheel

2шт.

O1256AB

RIM - rear wheel

2шт.

O1257AB1

SPOKE - rear wheel (14 per wheel)

28шт.

5/8" x 1-1/4" rd. hd. rivet

56шт.

5/8" x 2-1/4" rd. hd. rivet

28шт.

5/8" x 2-5/8" rd. hd. rivet

28шт.

B1113AA

WHEEL - rear, with spokes welded to steel tire (48" x 12")

2шт.
