(202[A]) - WHEELS, REAR WHEELS, PNEUMATIC TIRES FOR INTERNATIONAL 560 SERIES TRACTORS EQUIPPED W/26" RIM WHEELS

Запчасти Case IH 560 (202[A]) - WHEELS, REAR WHEELS, PNEUMATIC TIRES FOR INTERNATIONAL 560 SERIES TRACTORS EQUIPPED W/26" RIM WHEELS (11) - WHEELS

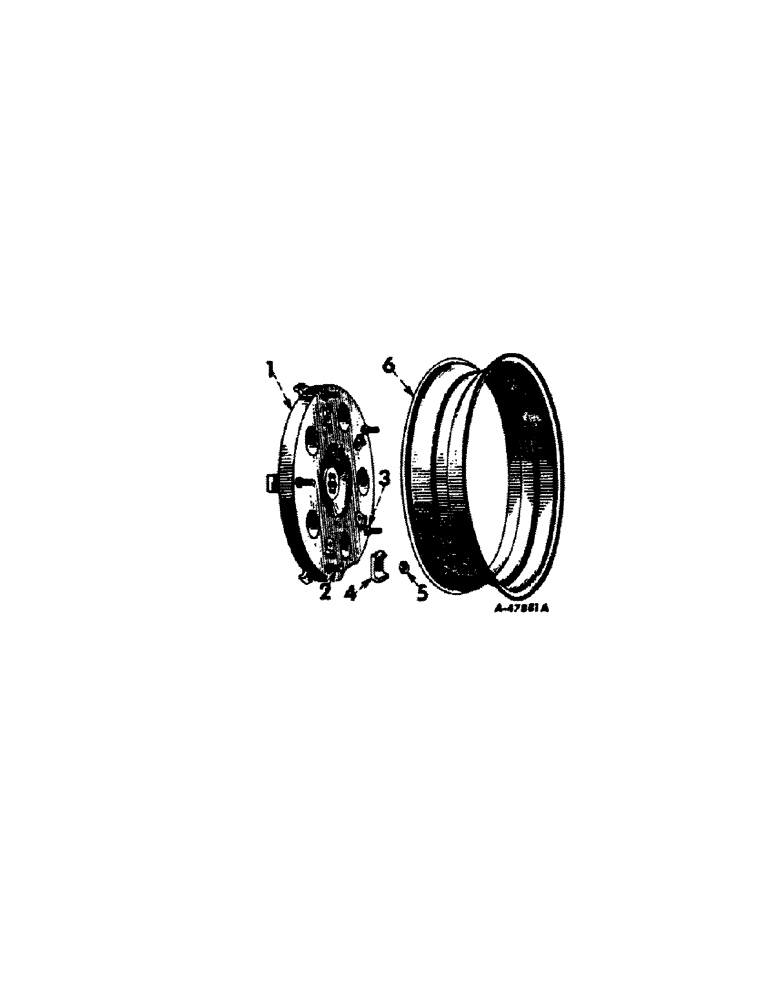

Схема запчастей Case IH 560 - (202[A]) - WHEELS, REAR WHEELS, PNEUMATIC TIRES FOR INTERNATIONAL 560 SERIES TRACTORS EQUIPPED W/26" RIM WHEELS (11) - WHEELS
1
2
3
4
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8299DA

WHEEL, rear

2шт.

2

48985DA

BOLT,Wheel, 5/8" - 11 x 4 1/4"

rear wheel rim clamp

10шт.

3

351832R1

NUT

rear wheel rim mounting

10шт.

4

48984D

CLAMP

rear wheel rim

20шт.

5

351833R1

NUT

rear wheel rim mounting jam

10шт.

6

63720D

RIM ASSEMBLY, rear wheel (DW12-26 rim for 14-26 tire)

2шт.
